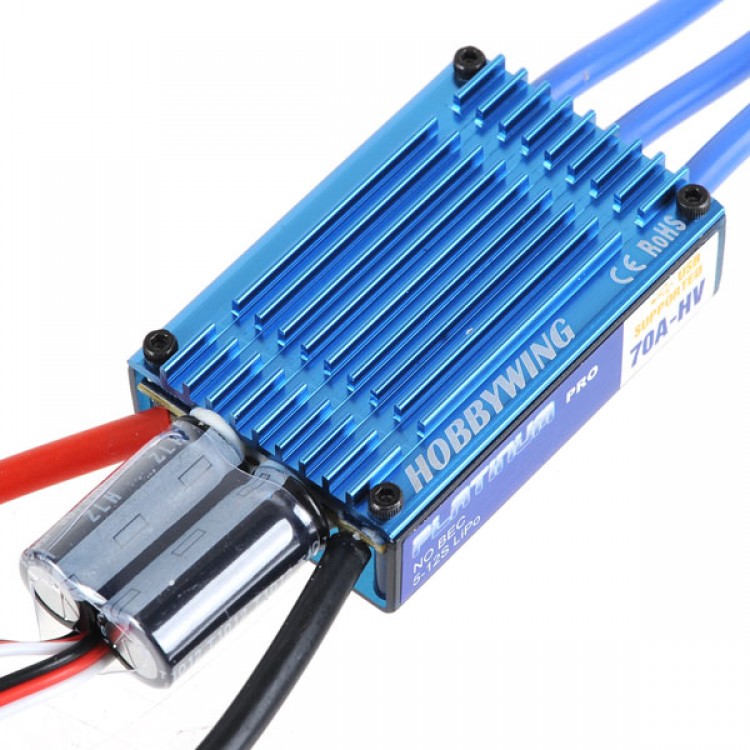

Hobbywing Platinum-70A-HV-PRO Brushless BL ESC For 600 Helicopter & Aircraft
Features
- High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
- Wide-open heat-sink design to get the best heat dissipation effect.
- With 3 types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.
- Smooth, linear, quick and precise throttle response.
- The throttle signal is transfered through optically coupled system to avoid the electromagnetic interference.
- Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
- Perfect governor mode for helicopter.
- The firmware of the ESC can be updated through the USB adapter on the Professional LCD Program Box.
- User programmable. Several kinds of program methods are supported: transmitter, digital LED program card, advanced professional LCD program box, PC software. Very easy to program the ESC at home or at the flying field.

Specification
- Output:  Continuous 70A, burst 105A up to 10 seconds.
- Input Voltage:  5-12 cells lithium battery or 15-36 cells NIMH battery.
- BEC:  None.
- Control Signal Transmission: Optically coupled system.
- Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
                              (BLM: BrushLess Motor)
- Size:  70mm (L) * 34mm (W) * 16mm (H).
-  Weight:  82g.
Descriptions:
Platinum-70A-HV-PRO ESC belongs to Hobbywing's "Platinum" series products line, it is the most significant top-class product for aircraft and helicopter.
 Typical Applications
- Very powerful  for 600 class helicopter (Working with 8 or 10 cells Lipo battery)
- Very powerful for huge scale aircraft such as F3A
