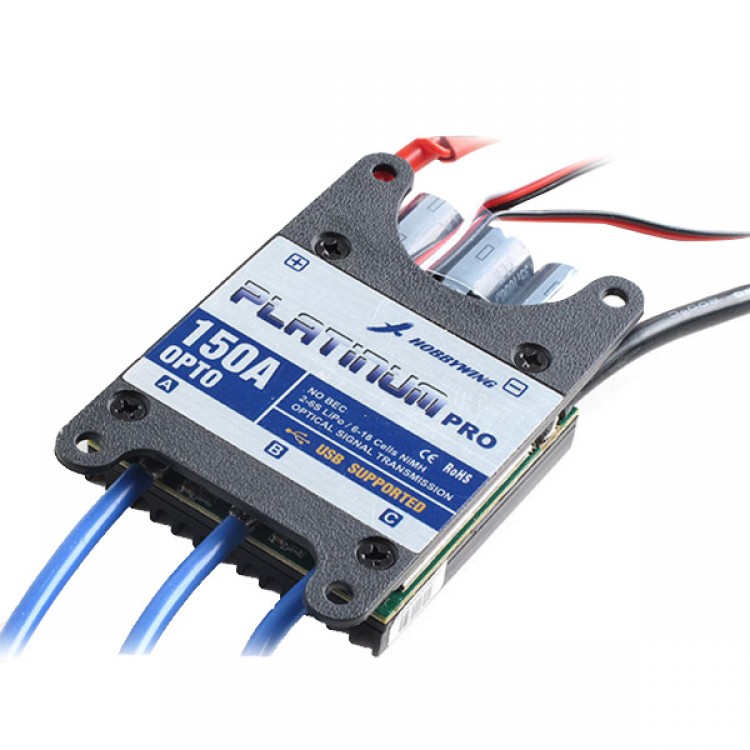

Hobbywing Platinum-150A-PRO ESC High Performance 150A Burst 220A for RC Multicopter Helicopter

Availability: Out Of Stock

  • Price:$87.00
  • Price in reward points: 870 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $85.26 $83.52 $80.91 $77.43 Contact US
Quantity:

Hobbywing Platinum-150A-PRO ESC High Performance 150A Burst 220A for RC Multicopter Helicopter

Specifications:
- Platinum-150A-PRO ESC
- Super powerful for 600 class helicopter&large scale aircraft
- Very powerful for 700 class helicopter

Platinum-150A-PRO ESC belongs to Hobbywing’s "Platinum" series products line, it is the most significant top-class product for aircraft and helicopter.

Typical Applications
- Super powerful  for 600 class helicopter (Working with 6 cells Lipo battery)
- Very powerful for 700 class helicopter (Working with 6 cells Lipo battery)
- Super powerful for large scale aircraft such as F3A (Working with 6 cells Lipo battery)

Specification
- Output:  Continuous 150A, burst 220A up to 10 seconds.
- Input Voltage:  2-6 cells lithium battery or 5-18 cells NIMH battery.
- BEC:  None
- Control Signal Transmission: Optically coupled system.
- Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
- Size:  88mm (L) * 55mm (W) * 15mm (H).
- Weight:  125g

Features
- High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
- Wide-open heat-sink design to get the best heat dissipation effect.
- With 3 types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.
- Smooth, linear, quick and precise throttle response.
- The throttle signal is transfered through optically coupled system to avoid the electromagnetic interference.
- Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection
- Perfect governor mode for helicopter.
- The firmware of the ESC can be updated through the USB adapter on the Professional LCD Program Box.
- User programmable. Several kinds of program methods are supported: transmitter, digital LED program card, advanced professional LCD program box, PC software. Very easy to program the ESC at home or at the flying field.
