Hobbywing SkyWalker 40A ESC for RC Helicopter
  • Hobbywing SkyWalker 40A ESC for RC Helicopter

  • SKU:25321
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 1
  • Price:$14.90
  • Price in reward points: 149
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $14.60 $14.30 $13.86 $13.26 Contact US

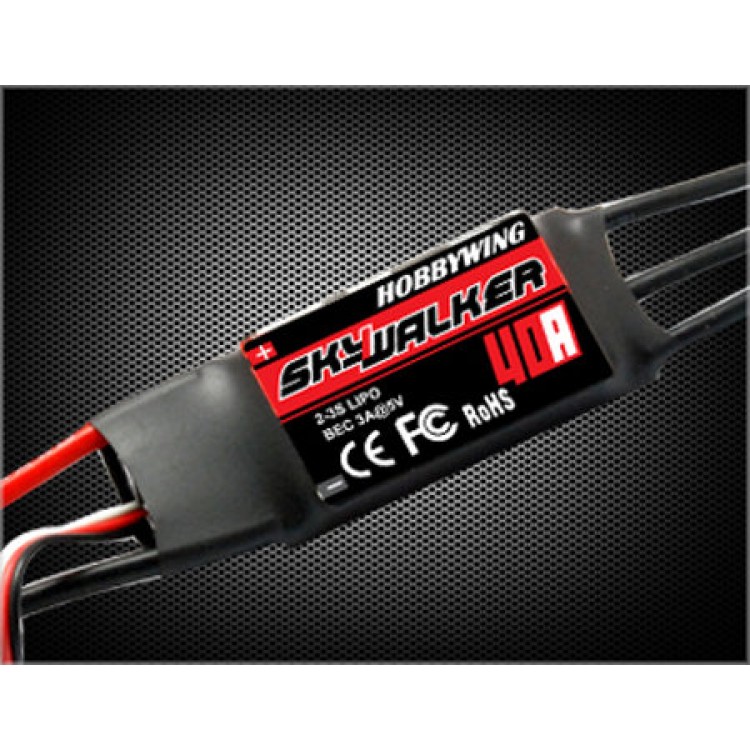

Hobbywing SkyWalker 40A ESC

Hobbywing SkyWalker 40A ESC

Designed for

1.400/450 helicopter Sports
2.32 lever aircraft Sports

Features

1.Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available            transmitters.
3.Programmable Items:
   Brake Setting: brake enabled / brake disabled.
   Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
   Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
   Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
   Start Mode: normal / soft / very soft.
   Timing: low / medium / high.
   Reset: reset all the programmable items to their default settings.
4.Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

Specification





Weight 39g;  Size 68mm*25mm*8mm(L*W*H)
 Output Continuous 40A, Burst 55A up to 10 Secs. Input  Voltage 2-3 cells Lipo battery or 5-9 cells NiCd/NIMh battery.
BEC mode 5V@3A (linear mode) Max speed 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.

Includes

1.1 X Hobbywing SkyWalker 40A ESC
2.3 pairs of 3.5mm Banana Plugs (Soldering will be needed)
3.1 pair of T-Join Plug (Soldering will be needed)
