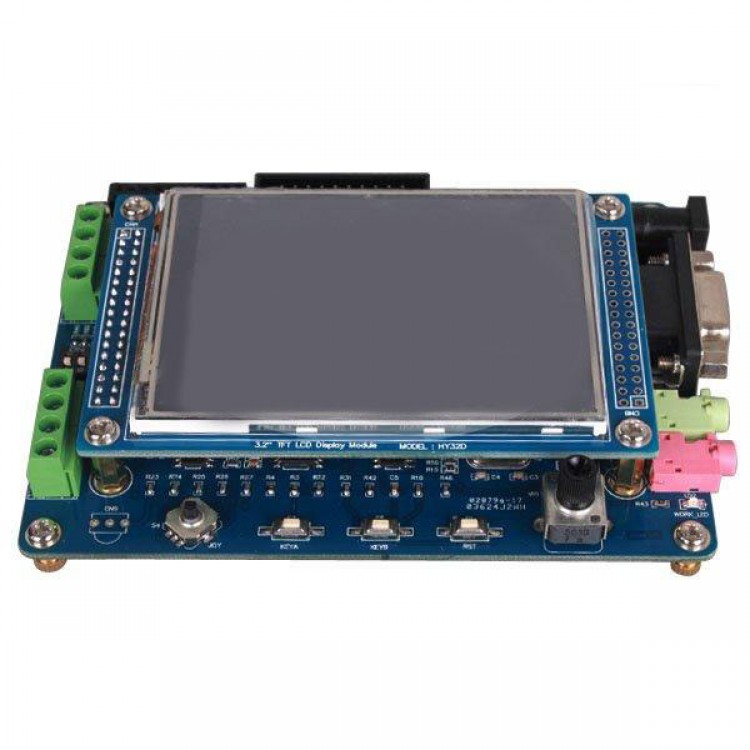

HY-SmartSTM32 Development Board STM32F103VCT6 3.2" LCD with MP3 Software Decoder Support Camera
  • HY-SmartSTM32 Development Board STM32F103VCT6 3.2" LCD with MP3 Software Decoder Support Camera

  • SKU:16080
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 6
  • Price:$63.77
  • Price in reward points: 638
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $62.49 $61.22 $59.31 $56.76 Contact US

HY-SmartSTM32 Development Board STM32F103VCT6 3.2" LCD with MP3 Software Decoder Support Camera


Features:
- CPU:STM32F103VCT6,ARM Cortex-M3 core,256kB Flash,48KB RAM,72MHz/90MIPS(1.25DMIPS/MHz),LQFP 100
- 1 Color LCD FMSC driver, support 3.2inch 320*240
- 1 camera interface ( not include Camera module)
- 1 CAN2.0A/B interface
- 2 RS232 interface(1 for DB9, 1 extand out)
- 1 IIS wave interface
- 1 joystick,1 reset key, 2 user key
- 1 RTC battery socket
- 1 MicroSD(SDIO mode, fast than SPI)
- 3 led indicator for power,user,USB.
- 1 adjustable resistance
- ARM JTAG 20 PIN (support ST-LINK,JLINK,ULINK2)
- Boot option (Flash,system ROM,RAM)
- 8MHz OSC,32.768kHz OSC
- PCB size: 115mm×85mm
- All demo source

Package included:

- 1 x mainboard+3.2inch 320*240 lcd
- 1 x usb cable
- 1 x power adapt
- 1 x DB9 RS232 cable
- 1 x CD
