T-Journal Normal Lens ESP32 Camera Module Development Board OV2640 Camera Wifi Antenna 0.91" OLED

T-Journal Normal Lens ESP32 Camera Module Development Board OV2640 Camera Wifi Antenna 0.91" OLED

Hardware Specifications:
- Chipset: ESPRESSIF-ESP32-PCIO-D4 240MHz for Xtensa single-/dual-core 32-bit LX6 microprocessor
- FLASH: QSPI flash/SRAM, up to 4 x 16 MB
- SRAM: 520 kB SRAM
- KEY: reset, IO32
- Display: 0.91" SSD1306
- Power indicator lamp: red
- USB to TTL: CP2104
- Camera OV2640: 2Megapixel
- Steering engine: analog servo
- On-board clock: 40MHz crystal oscillator
- Working voltage: 2.3V-3.6V
- Working current: about 160mA
- Working temperature range: -40℃ to +85℃
- Size: 64.57mm*23.98mm

Power Supply Specifications:
- Power Supply: USB 5V/1A
- Charging current: 1A

WIFI Description:
- Standard: FCC/CE/TELEC/KCC/SRRC/NCC
- Protocol: 802.11 b/g/n/e/i (802.11n，speed up to150Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval
- Frequency range: 2.4GHz~2.5GHz (2400M~2483.5M)
- Transmit Power: 22dBm
- Communication distance: 300m

Bluetooth Description:
- Protocol: meet bluetooth v4.2BR/EDR and BLE standard
- Radio frequency: with -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
- Audio frequency: CVSD&SBC audio frequency

Software specification:
- Wifi Mode: Station/SoftAP/SoftAP+Station/P2P
- Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
- Encryption Type: AES/RSA/ECC/SHA
- Firmware upgrade: UART download/OTA (Through network/host to download and write firmware）
- Software Development: Support cloud server development /SDK for user firmware development
- Networking protocol: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
- User Configuration: AT + Instruction set, cloud server, for android/iOS app
- OS: FreeRTOS

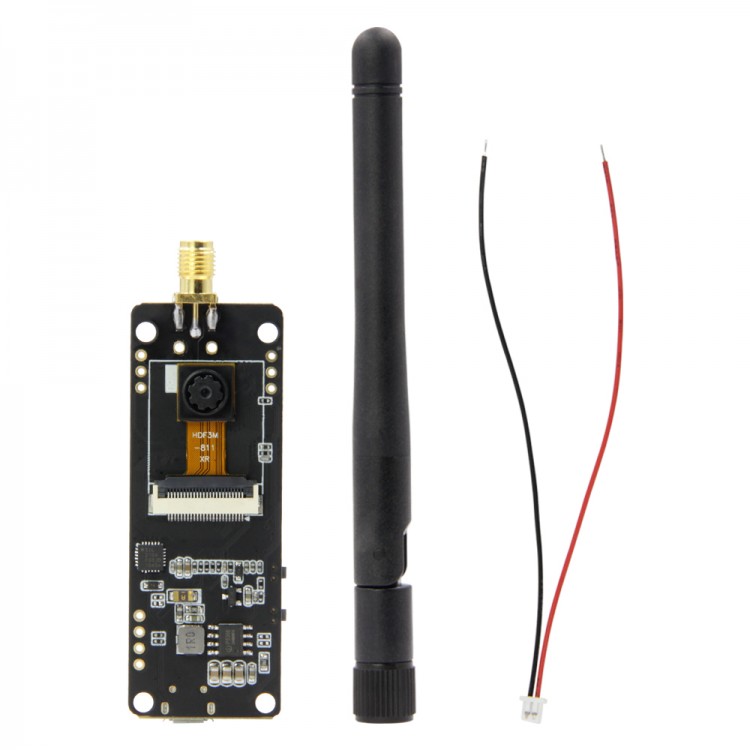

Package Included:
- 1 x ESP32 Camera Module (Normal Lens Or Fisheye Lens)
- 1 x Wi-Fi Antenna
- 1 x Power Line

Note:
- Battery is not included. A 3.7V lithium battery is recommended.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!

You can use the camera library for Arduino:
https://github.com/LilyGO/ESP32-Camera

Difference between Fisheye Lens and Normal Lens:

Connect Camera:
- Using nano carbon aluminum foil heat sink
