• T-Camera Plus Fisheye Lens OV2640 Camera Module WiFi Bluetooth ESP32-DOWDQ6 8MB SPRAM 1.3" Display

T-Camera Plus Fisheye Lens OV2640 Camera Module WiFi Bluetooth ESP32-DOWDQ6 8MB SPRAM 1.3" Display

Availability: In stock, usually dispatched in 1 business day

  • Price:$32.23
  • Price in reward points: 322 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $31.59 $30.94 $29.97 $28.68 Contact US
Quantity:

T-Camera Plus Fisheye Lens OV2640 Camera Module WiFi Bluetooth ESP32-DOWDQ6 8MB SPRAM 1.3" Display

Attention:

- The camera can be extended to become a rear camera, program is set to delay the photo, and then become a camera function.
- Camera cable length: 75mm

Github Link:
https://github.com/Xinyuan-LilyGO/LilyGo-Camera-Series

Product Specifications:
Hardware Specifications:
- Chipset: ESPRESSIF-ESP32-DOWDQ6 240MHz for Xtensa single-/dual-core 32-bit LX6 microprocessor
- FLASH: QSPI flash/SRAM, up to 4 x 16 MB
- SRAM: 520 kB SRAM + 8MBytes External SPRAM
- KEY: reset
- Display: IPS Panel ST7789/1.3 Inch
- Power indicator lamp: red
- USB to TTL: CP2104

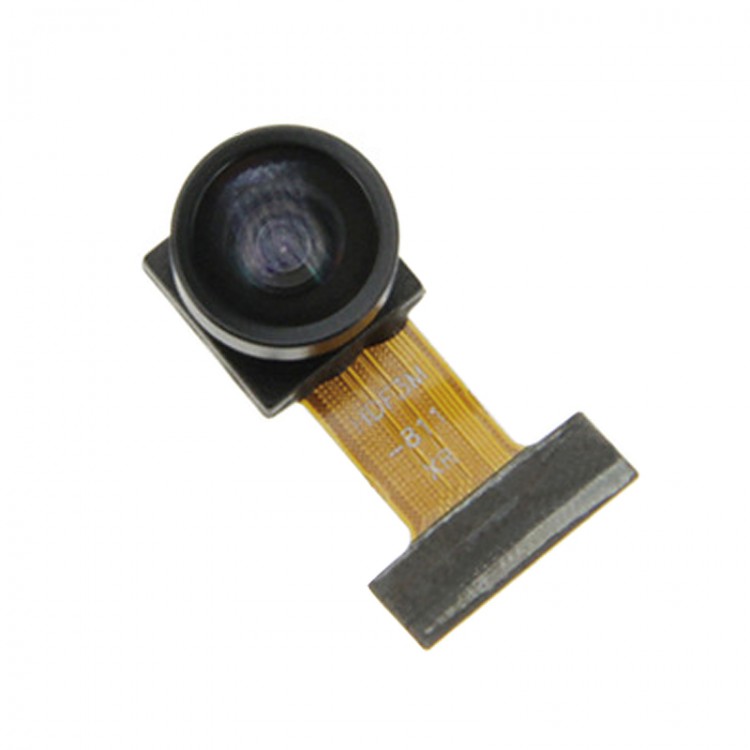

- Camera: OV2640 2Megapixel
- On-board clock: 40MHz crystal oscillator
- Working voltage: 2.3V-3.6V
- Working current    about: 160mA
- Working temperature range: -40℃ to +85℃
- Size: 69.13*28.41*8.45mm
- Mic: MSM261S4030H0
- SD Card: Integrated external SD card slot

Power management Chip IP5306:
- Power Supply: USB 5V/1A
- Charging current: 1A

WIFI:
- Standard: FCC/CE/TELEC/KCC/SRRC/NCC
- Protocol: 802.11 b/g/n/e/i (802.11n, speed up to150Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval
- Frequency range: 2.4GHz~2.5GHz (2400M~2483.5M)
- Transmit Power: 22dBm
- Communication distance: 300m

Bluetooth:
- Protocol: meet bluetooth v4.2BR/EDR and BLE standard
- Radio frequency: with -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
- Audio frequency: CVSD & SBC audio frequency

Software Specification:
- Wifi Mode: Station/SoftAP/SoftAP+Station/P2P
- Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
- Encryption Type: AES/RSA/ECC/SHA
- Firmware upgrade: UART download/OTA(Through network/host to download and write firmware)
- Software Development: Support cloud server development /SDK for user firmware development
- Networking protocol: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
- User Configuration: AT + Instruction set, cloud server, for android/iOS app
- OS: FreeRTOS

Package Included:
- 1 x Set of T-Camera plus

Note:
- Battery is not included. A 3.7V lithium battery is recommended.


Product Information Link:
https://github.com/Xinyuan-LilyGO/esp32-camera-series
https://github.com/Xinyuan-LilyGO/esp32-camera-screen
https://github.com/Xinyuan-LilyGO/esp32-camera-plus-bigiot
