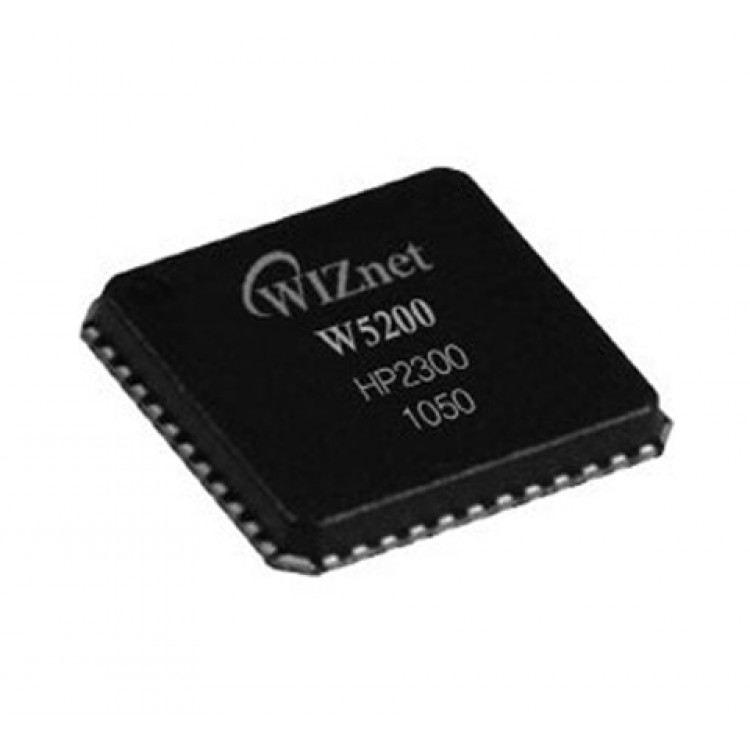

iEthernet Wiznet W5200 – Fast SPI Ethernet Controller

Availability: Out Of Stock

  • Price:$9.32
  • Price in reward points: 93 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $9.13 $8.95 $8.67 $8.29 Contact US
Quantity:

iEthernet Wiznet W5200 – Fast SPI Ethernet Controller

Feature:
- High Speed Serial Peripheral Interface (SPI MODE 0, 3)
- Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet
- 10BaseT/100BaseTX Ethernet MAC/ PHY embedded
- Auto Negotiation ( Full and half duplex, 10 and 100-based )
- Auto MDI/MDIX (Straight-through or Crossover)
- ADSL connection (with support PPPoE Protocol & PAP/CHAP Authentication mode)
- 8 independent sockets simultaneously
- Internal 32Kbytes Memory for Tx/Rx Buffers
- Multi-function LED outputs (Full/Half duplex, Link, Speed)
- Power down mode
- Wake on LAN
- 0.18 µm CMOS technology
- 3.3V operation with 5V I/O signal tolerance
- Lead-Free Package
- Small & Compace 48 Pin QFN Package
