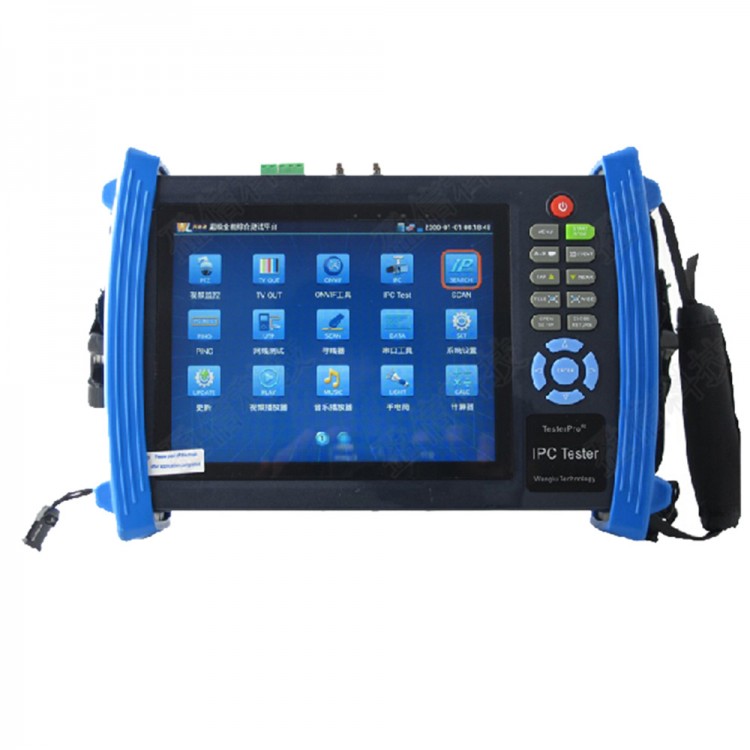

IPC-8600 7inch Touch Screen IP Camera Tester Analog CCTV Camera Monitor PoE HDMI

IPC-8600 7inch Touch Screen IP Camera Tester Analog CCTV Camera Monitor PoE HDMI

Description:
IP camera tester is great CCTV tools for IP camera's installation and maintenance, both for Analog and IP camera test, built in video level meter, Analog and digital video signal output, IP address scan, Ping test, Port flashing, cable test, Digital Multi-meter, optical power meter and TDR cable tester etc ,easy to operate

7 inch wide view Capacitive touch screen/ONVIF/support more than 30 ip cameras image test(hikvision, dahua, Honeywell, Samsung, etc)/mobile client video/12v2A power output/5V2A power bank/ POE power supply/HDMI Output/wifi

Improved IP camera tester，After charging 7~8 hours, normal working time 16 hours, built in WIFI, test wireless ip cameras.12V 2A power output for camera ,48V PoE power supply，Directly provide PoE power to IP Camera 5V 2A power output(as a power bank 13000mAh),HDMI output；Audio input and output, Network bandwidth testing, image 180 degree rotating，the power and network ports on the top of the tester, easy to connect the cable.

Features:
- 7 inch touch screen，800*600 resolution. NEW
- Capacitive touch screen ,OSD menu,
- Touch screen and key operation
- Built-in WIFI, wireless network camera test  NEW
- Support 1080P HD camera
- Support ONVIFcamera ,and Support DAHUA,Haikang,KEDA,Samsung,HIKVISION and TIANDY camera.ect
- Support running the mobile phone or tablet mobile client software of the IP camera manufacturers.
- Image can rotate 180 degrees NEW
- Display real resolution of the IP camera images
- Video screenshot ,video recording ,files named and save, easy to find NEW
- Support network PTZ controller (ONVIF)
- Support 1080P HD video files and MKV/MP4 media files play
- PTZ controller ,Photograph, Video record, Record playback
- Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement NEW
- Optical Power Meter, it can measure the optical power value*(Optional)
- Visual fault locator , to test fiber’s bending and breakage * (Optional)
- POE voltage measurement, PING test ,IP address scan, port flashing etc
- PoE DC48V power output，Max power 24W；NEW
- 12V /2A power output NEW
- 5V 2A power output，as the power bank NEW
- HDMI output, 1920*1080P Resolution；NEW
- Audio in /out
- LED lamp, calculators, music players and other application tools
- Support customers self update software
- Lithium Ion Polymer Battery, working time lasts 16 hours

Pacakge included:
- 1* IPC-8600 monitor
- 1* Cable tester
- Accesories
