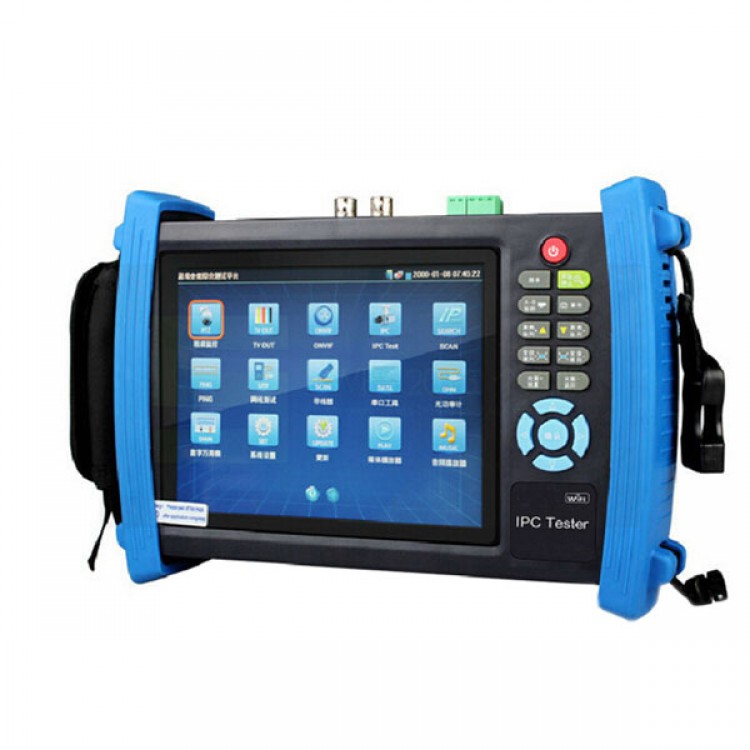

IPC-8600 7"Touch screen HD ONVIF IP CAMERA DISPLAY Monitor PTZ POE TESTER HDMI

IPC-8600 7"Touch screen HD ONVIF IP CAMERA DISPLAY Monitor PTZ POE TESTER HDMI

Description:
7inch wide viewCapacitive touch screen /
ONVIF /support more than 30 IPcamera image test (Hikvision, Dahua, Honeywell, Samsung etc) /Mobile ClientVideo /
 12V 2Aout put power/ 5V 2A power bank /
PoE power supply/HDMI output /
POWER External power supply  :  DC 12V 2A
Battery  :  Built-in 7.4V Lithium polymer battery ,6500mAh Rechargeable    After charging 7~8 hours, normal working time 16 hours
Operation setting :   Capacitive touch screen, OSD menu，Chinese/English
Auto off :   1-30 (mins)
Working Temperature:    -10℃---+50℃
Working Humidity :  30%-90%
Dimension/Weight  :  231mm x 172mm x 52mm / 1.26Kg

Display:             7 inch Capacitive touch screen , resolution 800（RGB）x 600
Network port :       10/100M auto adjust,RJ45
WIFI :               Built in WIFI,speeds150M,receive wireless camera image etc
IP camera type :     ONVIF,ACTi,Dahua IPC-HFW2100P,Hikvision,DS-2CD864-E13,
                     Samsung SNZ-5200,Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T,
                     Aipuwaton IP5000-BC-13MP/IRS06-13MP,fine-Tida IPC,FSJ BY-1080Q,WEISKY IPC camera etc.
Video level test :   1 channel BNC Input & 1 channel Output , NTSC/PAL (Auto adapt)
Video level meter:   PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement
Zoom Image :         Support Analog camera and IP camera image zoom /move Snapshots,Video record,Record playback
                     Image Screenshots, record ,save ,view and record play back
HDMI output :        1 channel HDMI output，support 1920*1080P
12V/2Apower output : Output DC12V/2A power for camera
5V power output:     5V 2A power output，as a mobile phone Power bank
PoE power output  :  48V PoE power output，Max power 24W
Audio test :         1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
PTZ control  :       Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P,
                     Samsung, Panasonic, Lilin, Yaan, etc
Video Signal Generator  :Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )
Network color bar generator  :   Local side PC can login the tester, send the signal by network ,test network connection communication whether normal
UTP Cable tester :   Test UTP cable connection status and display in the screen. Read the number on the screen
Data monitor  :    Collects and analyzes the command data from controlling device，also can send hexadecimal
Network test :     IP address scan, link scan, Ping test, Quickly search the connection IP camera and other device IP address
Cable scan   :     Search the cable by the audio signal
PoE test  :        Measurement POE switch or PSE power supply voltage and cable connection status
