KST DS115MG Metal Digital Coreless Motor Cyclic CCPM /Rudder Servo

Availability: In stock, usually dispatched in 1 business day

  • Price:$38.67
  • Price in reward points: 387 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $37.90 $37.12 $35.96 $34.42 Contact US
Quantity:

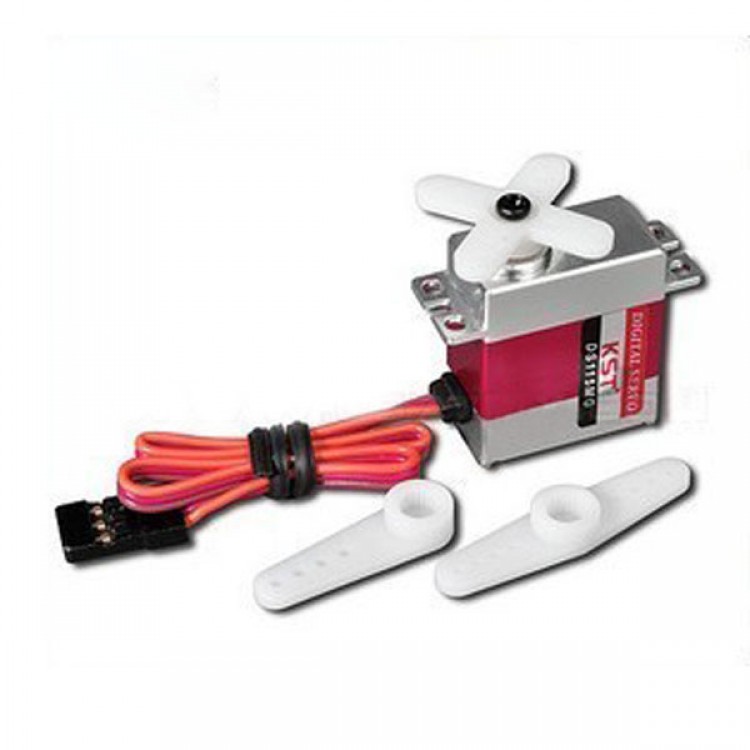

KST DS115MG Metal Digital Coreless Motor Cyclic CCPM Rudder Servo



The KST DS115 high speed servo is an amazingly good metal cased servo, especially good for ailerons, elevator, rudder on fast models, and heli CCPM. It is exactly the same size and has most of the performance and build quality of the market leader, for half the price. Like the more expensive servo it has no geartrain slop.

At only 10mm thick this high speed servo can easily fit in thin glider and jet wings. With a 3kg.cm torque the KST DS115 is appropriate for F3F, F3B, F3J, F5J, many fast gliders and 450 CCPM helicopters.

Specifications:

KST DS115 Servo Specifications
Dimensions 23mm x 10mm x 26.3mm(Wide x Thick x High)
Stall torque (4.8V) 2.4 kg cm 33 oz in
Stall torque (6V) 3.0 kg cm 42 oz in
Operating speed (4.8V) 0.07 sec/60°
Operating speed (6V) 0.06 sec/60°
Operating voltage 4.5V to 6.0V
Lead length 16 cm 6.3 in
Weight 20.5 g 0.72 oz
Bearings Dual ball bearings
Gear material Bronze
Motor Type 12mm coreless motor
Driver type FET
Programmable No
Supplied accessories 3 substantial plastic output arms
