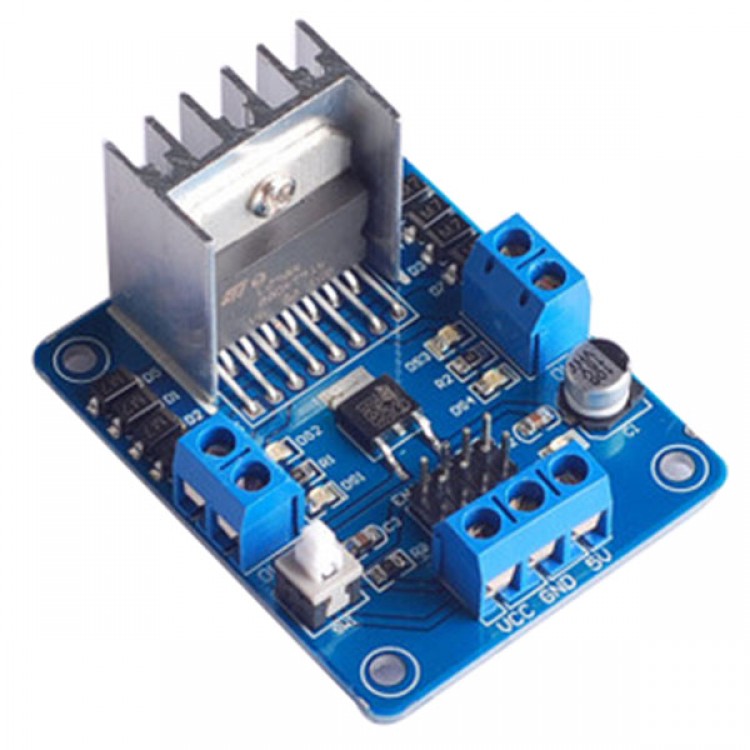

L298N Stepper Motor Driver Board Module for Robot Smart Car
Parameters:
- Driving chip: brand new original L298N dual H bridge DC motor driver chip
- Terminal power supply range: +5V~+35V, if needs power from board, the power supply range is +7V~+35V
- Driver peak current: 2A
- Logic terminal power supply range: +5V~+7V(Can take +5V power from board)
- Current range:
- Controlling signal input voltage range:
low level-0.3V≤Vin≤1.5V
high level: 2.3V≤Vin≤Vss
- Voltage range: low level: -0.3≤Vin≤1.5V(control signal is not available)
high level: 2.3V≤Vin≤Vss (control signal is available)
- Max consumption: 20W (temp=75degree)
- Storage temp: -25----130degree
- Driver board dimension: 53mm*43mm
- Driver board weight: 35g
