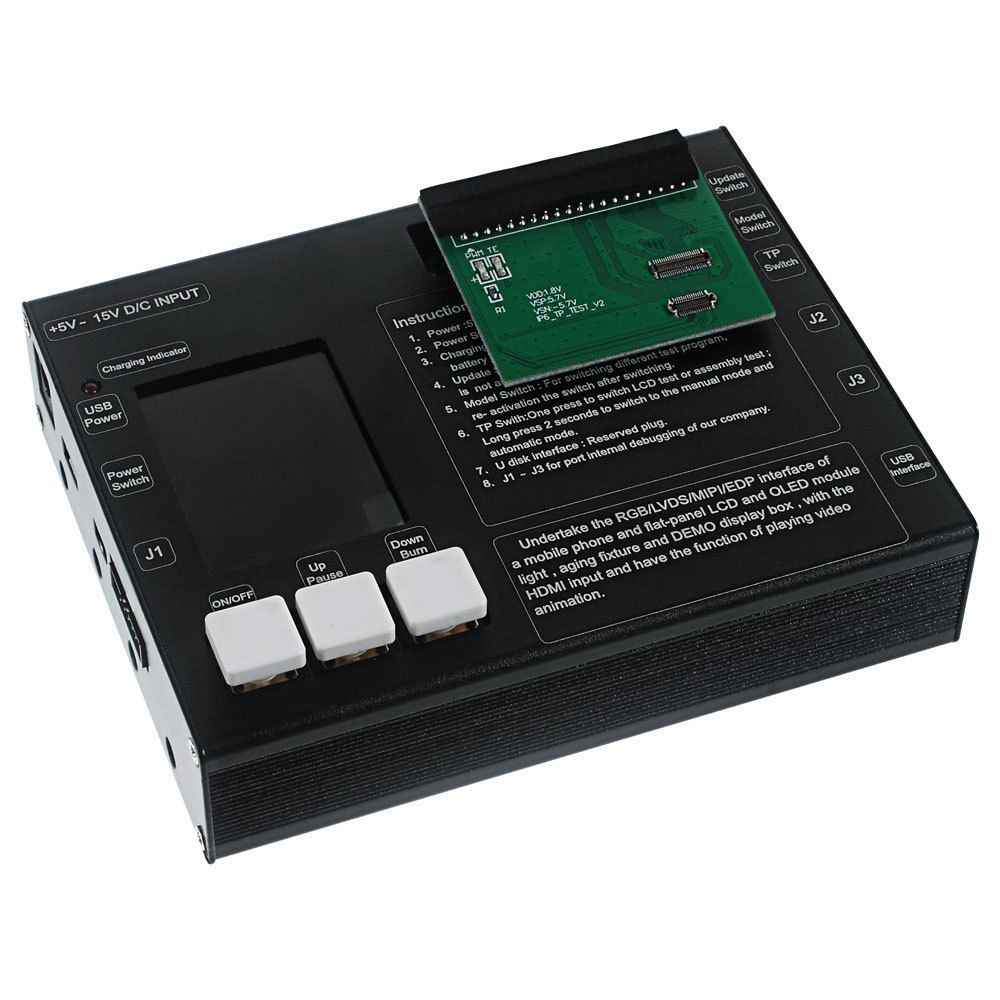

LCD Display Touch Screen Digitizer Tester LED Power Indicator + PCB for iPhone 4s
- 7 compose 1 test frame with 12 small plates.Universal LCD Display / Touch Screen Digitizer Tester for iPhone 4s with PCB Boards
- Used to test the condition of the touch screen digitizer or LCD display, whether it is good or bad, workable or unworkable
- Power adapter and PCB boards are included for facilitating your testing
- With LED power indicator
- Portable and lightweight design, easy to carry and store
- Easy to operate
- Turn on the Power Switch Button
- Power source - USB power (not included) input or the attached power adapter (recommend using external power)
- Turn on Switch Button
- Insert the testing PCB board into the tester, then link the LCD or touch screen digitizer to the PCB board. Remember to link tightly for better testing
- After it is well-linked and powered, if the LCD or digitizer is in good condition, clear picture will be displayed on the screen; if it is in bad condition, it will display abnormally
- Press Last/Next Buttons to check the previous / next pictures
- Press Model Change Button to choose the model you want
- If the screen you are testing is not original, please change to OGS model, for example, you are testing a non-original iphone 6, you need change mode to I6_4.7_OGS
- Every time you need another model screen, please change to the correct mode firstly, then insert the pcb board, then turn off and restart the machine, linking the screen.
- Software Update Button and J1 J2 J3 Buttons are used for internal debugging, which can not be pressed wrongly.
-It can't work with iphone 6s and 6s plus.
- 1 x Touch Screen Digitizer Tester
- 2 x Testing PCB Boards for iPhone 4s
- 1 x Power Adapter (5V 2A)
