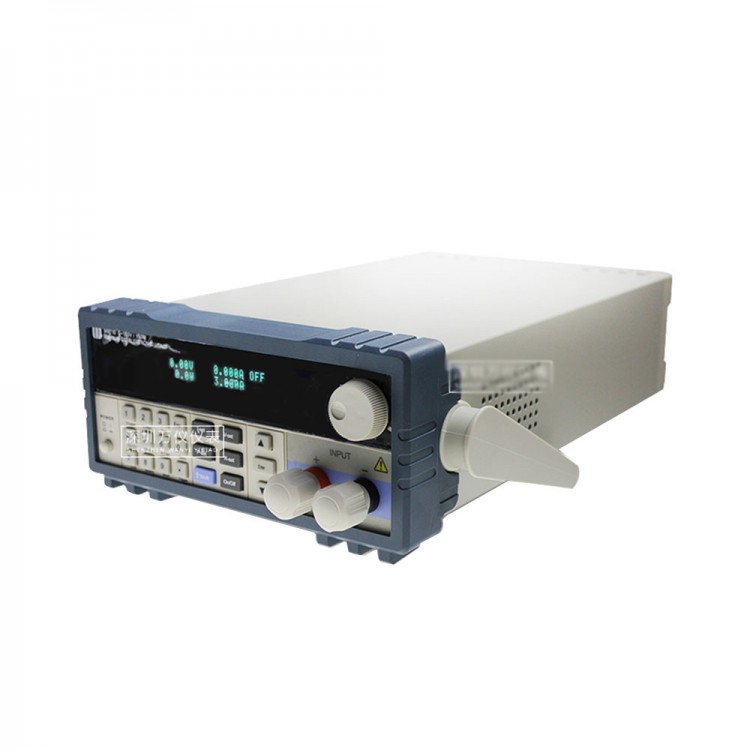

M9711 Programmable DC Electronic Load 0-30A 0-150V 150W AC110-220V Power Supply CC CR CV CW CC+CV CR+CW Tester
  • M9711 Programmable DC Electronic Load 0-30A 0-150V 150W AC110-220V Power Supply CC CR CV CW CC+CV CR+CW Tester
  • M9711 Programmable DC Electronic Load 0-30A 0-150V 150W AC110-220V Power Supply CC CR CV CW CC+CV CR+CW Tester
  • M9711 Programmable DC Electronic Load 0-30A 0-150V 150W AC110-220V Power Supply CC CR CV CW CC+CV CR+CW Tester
  • M9711 Programmable DC Electronic Load 0-30A 0-150V 150W AC110-220V Power Supply CC CR CV CW CC+CV CR+CW Tester

  • SKU:47200
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 41
  • Price:$406.42
  • Price in reward points: 4064
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $398.29 $390.16 $377.97 $361.71 Contact US

M9711 Programmable DC Electronic Load 0-30A 0-150V 150W AC110-220V Power Supply CC CR CV CW CC+CV CR+CW Tester

Features:

- Six high speed operation modes: CC, CR, CV, CW, CC+CV, CR+CW
- Over current, over voltage, over power, over heat, polarity reversed protection
- High-luminance VFD screen with two lines& four channels display
- Intelligent fan system fan will be automatically initiated according to the temperature
- Soft start time setting, carrying the power supplier according to the voltage value set
- Battery testing and short-circuit function
- Available of dynamic testing and rising edge and falling edge setting
- Supporting external trigger input and output
- External current waveform monitor terminal
- Supporting remote voltage compensation and multidata storage
- Power-on-self-test, software calibration and standard rack mount
- Communication mode: RS232/RS485/USB.

Application:
Production line(cell phone charger, cell phone battery, electric vehicle battery, switching power supplier, linear power supplier), research institutes, automotive electronics, aeronautics and astronautics, ships, solar cells fuel cell, etc.

Package included:
- 1 x Tester
- 1 x Cable
- 1 x Manual
