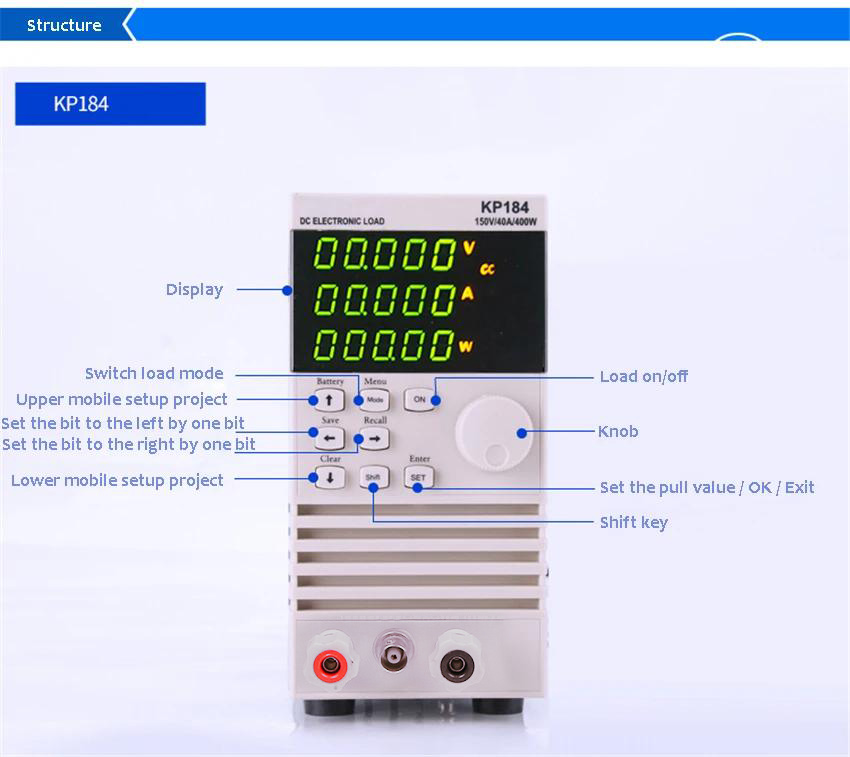

AC110/220V KP184 High Precision Battery DC Electronic Load Tester Support for RS232/RS485 Communication

AC110/220V KP184 High Precision Battery DC Electronic Load Tester Support for RS232/RS485 Communication

Features:
- The KP180 series has four basic load modes: CC, CV, CW, and CR, with high accuracy and good stability.
- Equipped with overvoltage, overcurrent, overvoltage, over temperature protection, input positive and negative reverse protection, and alarm.
- Automatic testing function, fan PWM temperature control: The load compares the measured voltage and current with the set upper and lower limits. When the measured value is not within the range, the load sends a prompt signal.

Specification:
- Communication: RS232/RS485
- Using temperature range: 0 ~ 50°C
- Using humidity range: 10 ~ 90% RH
- DC input terminal withstand voltage to chassis: +/-500VDC
- DC input terminal to chassis insulation resistance: > 20Mohm, 500VDC
- AC input terminal to chassis insulation resistance: > 20Mohm, 500VDC
- Size: about 300 x 90 x 190mm
- Weight: 4.5kg

Power supply input:
- Voltage: AC 110V/220V +/- 10%, 50+/-2Hz
- Power consumption: < 20W

Load Input:
- Load voltage: DC 1 - 150V
- Load current: 0 - 40A
- Load power: 0 - 400W

Measuring precision:
- Current: +/- 0.05% + 5mA
- Voltage: +/- 0.05% + 5mV

Controlling precision:
- Current: +/- 0.05% + 5mA
- Voltage: +/- 0.05% + 5mV

Protection:
- Over-voltage protection: off load when greater than 152V
- Over-temperature protection: 85°C
- Over-power protection: single channel 410W
- Power supply input fuse 0.5A

Package Included:
- 1 x DC Electronic Load Tester
- 1 x Load Cable
- 1 x 232 Communication Cable
- 1 x User Manual
