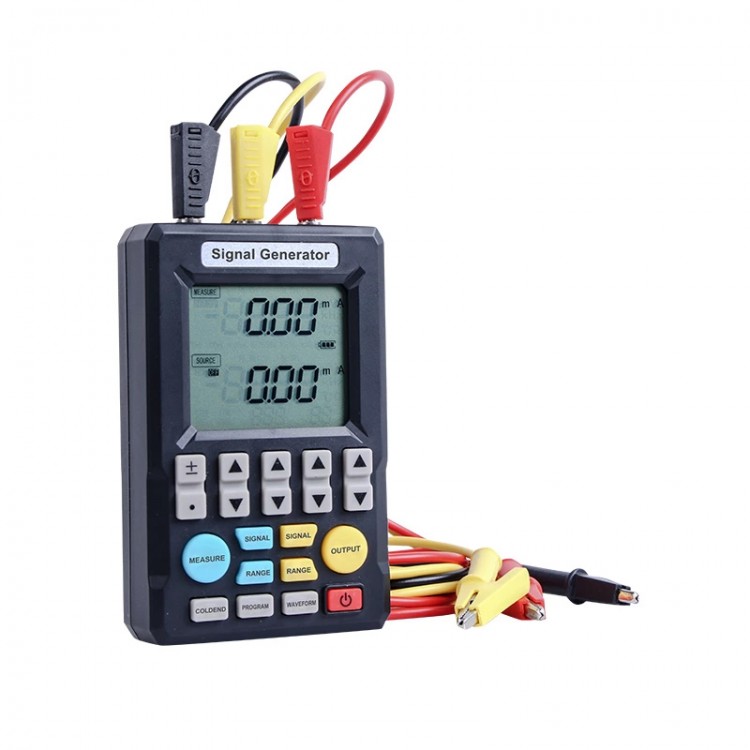

SUP-C703S Signal Generator & Process Calibrator – mA, V, Ω, RTD, Thermocouple Output & Measurement
Description:
SUP-C703S Signal Generator features multiple signal outputs and measurements, including voltage, current, and thermocouple readings. Equipped with an LCD screen and silicone keypad, it offers simple operation, longer standby time, higher accuracy, and programmable output. Widely used in laboratory and industrial applications, PLC process instruments, electrical measurements, and other debugging tasks.
Features:
* Sources and measures mA, mV, V, Ω, RTD, and thermocouples (TC)
* Keypad allows direct entry of output parameters
* Concurrent input and output for convenient operation
* Sub-display for source and measurement values (mA, mV, V)
* Large 2-line backlit LCD for clear readings
* 24 VDC loop power supply
* Thermocouple measurement and output with automatic or manual cold-junction compensation
* Supports various source patterns: Step Sweep, Linear Sweep, and Manual Step

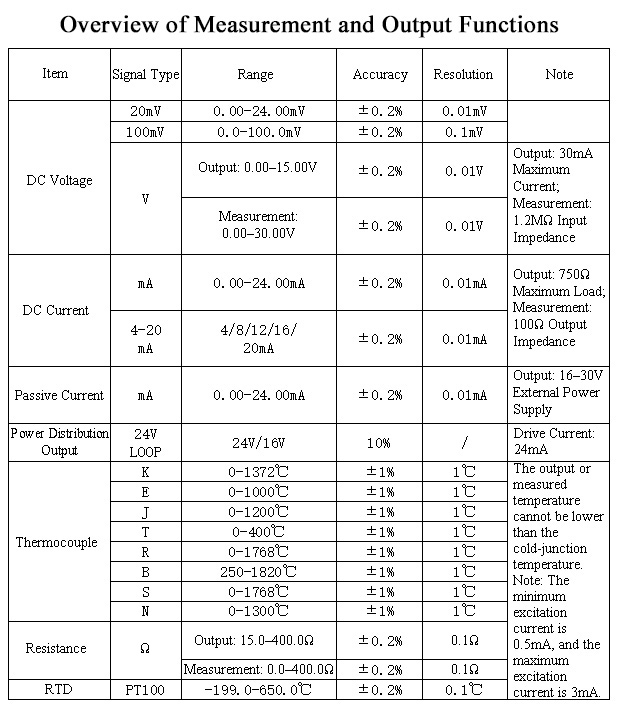

Specifications:
* Operating Temperature and Humidity: -10 to 55°C, 20-80% RH (non-condensing)
* Storage Temperature: -20 to 70°C
* Dimensions: 115mm × 71mm × 30mm
* Weight: 300g
* Power Supply: 4 × AAA batteries (not included) or external 5V/1A adapter
* Reverse Polarity and Over-current Protection: 30V
Packing List:
* 1 × Set of Signal Generator
Packaging Details:
* Weight: 1kg
Note:
* Batteries are not included.
