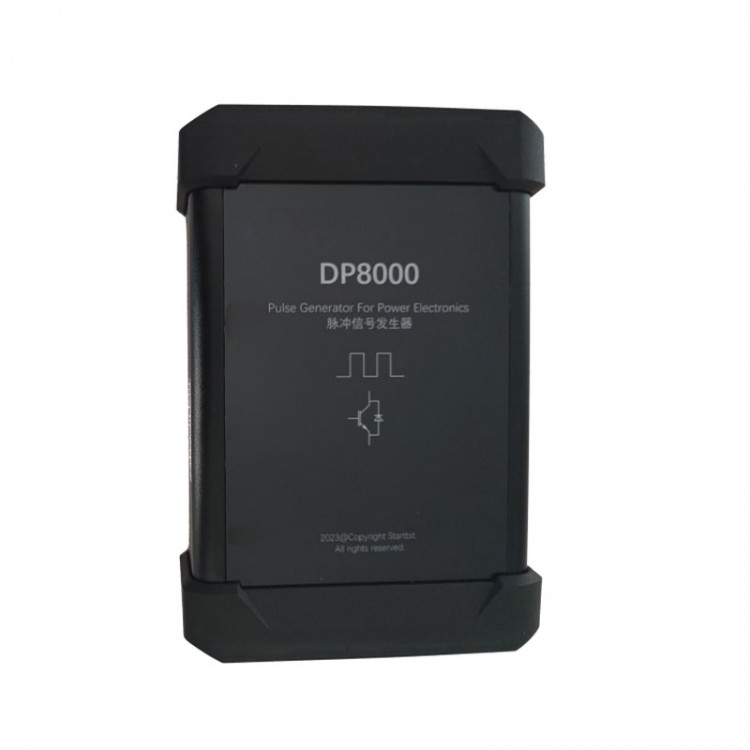

DP8000 Max IGBT Pulse Generator with Internally Integrated IGBT Driver (without Air Core Inductor)

DP8000 Max IGBT Pulse Generator with Internally Integrated IGBT Driver (without Air Core Inductor)

Features:
* High Pulse Accuracy: Narrowest pulse 0.1µs, pulse step size up to 0.01µs
* Easy Operation: Companion PC software is simple and user-friendly
* Multiple Pulse Modes: Single pulse, double pulse, multiple pulse, continuous pulse
* Multiple Control Interfaces: USB (serial), RS485, trigger input, run button
* Multiple Output Interfaces: BNC and 3.81mm terminal block
* Dual Low-Voltage 5V Output Support: Can be used to drive other driver boards
* Pulse Polarity: Supports active-high and active-low configurations
* Dual Isolated Drive Outputs: Two channels are isolated from each other
* IGBT Short-Circuit DESAT Protection: Protects against IGBT saturation during short circuits
* IGBT Short-Circuit Fault Output and MCU Detection
* Communication Protocol Provided: Supports secondary development

Specifications:
* Model: DP8000 Max
* Pulse Modes: Single pulse, double pulse, multiple pulse, continuous pulse
* Pulse Width Range: 0.1µs – 200µs
* Pulse Width Step Size: 0.01µs
* Low-Voltage Output Level: 5V
* Pulse Polarity: Supports active-high and active-low
* Drive Capability: 50mA at 5V
* Power Supply: 3.81mm terminal block 15V supply (for high-power IGBT drive or low-voltage PWM output); USB power (for low-voltage PWM output only)
* +15V-COM Terminal Supply: +15V at 1A
* Dual Output Drive Voltage: Turn-on +15V, Turn-off -10V
* Single-Channel Drive Power: 2W
* Gate Drive Resistance & Capacitance (Default): Ron = 3.4Ω, Roff = 3.4Ω, Cg = 1nF
* Compatible IGBT Voltage Level: 1700V
* Dimensions: 18.3cm × 12.7cm × 4.9cm

Packing List:
* 1 × Set of Pulse Generator

Packaging Details:
* Weight: 0.9kg
