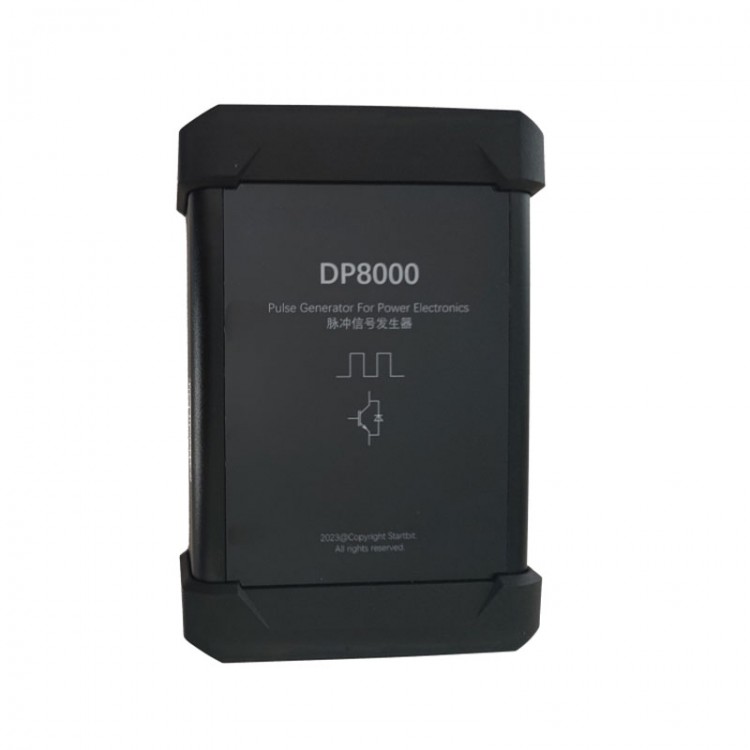

DP8000 Max IGBT Pulse Generator with Internally Integrated IGBT Driver (Air Core Inductor Included)
$384.16
DP8000 IGBT Pulse Generator with BNC and 3.81mm Terminal Block (without Air Core Inductor)
Advantages:
* High Pulse Accuracy
* Easy Operation
* Multiple Pulse Modes
* Multiple Communication Methods

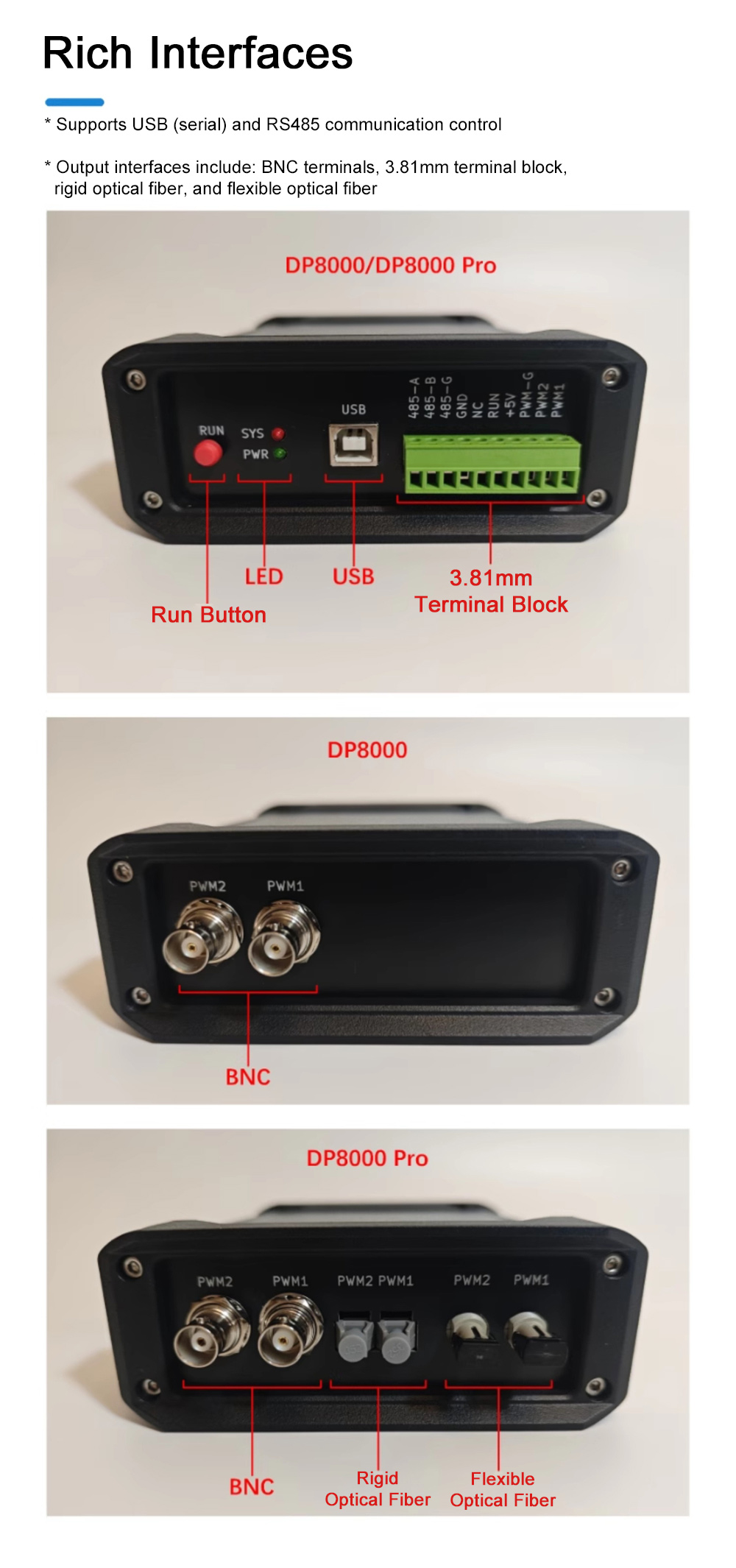

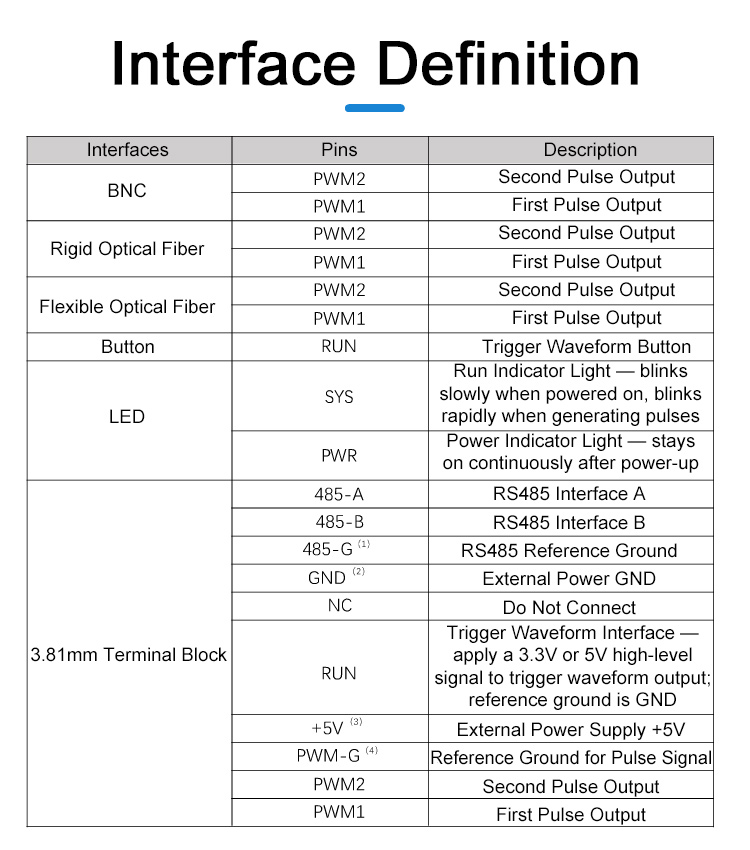

* Rich Output Interfaces
* Supports Secondary Development
Features:
IGBT Single/Double Pulse Signal Generator
* High precision, easy operation, rich interfaces, efficient & stable
* Independently developed, quality guaranteed

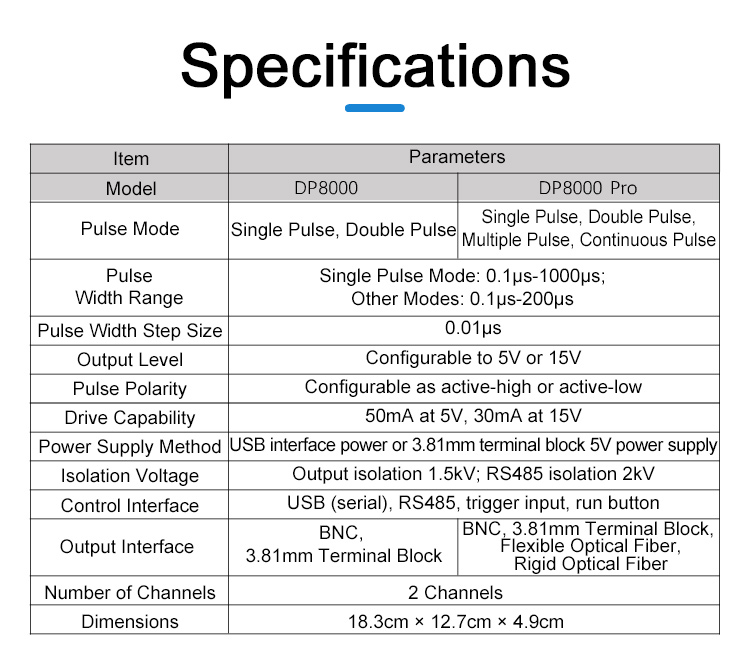

High Pulse Accuracy
* Narrowest pulse: 0.1µs
* Pulse step size: up to 0.01µs
Simple Operation, Powerful Features
* Comes with companion PC software for easy operation and convenient use
* Flexible channel configuration makes it suitable for multiple topologies
* Integrated project management functionality to save parameters as project files
* Built-in pulse width calculator for one-click insertion into the waveform generation page
Multiple Communication Methods
* Supports USB (serial) and RS485 communication control
Packing List:
* DP8000 Main Unit ×1
* USB Type-B Cable ×1
* BNC Alligator Clip Cable ×2
* 2mm Flathead Screwdriver ×1
Packaging Details:
* Weight: 0.9kg
