XCWGP-06 Wireless Pulse Generator Handle Unit CNC MPG Wireless Manual Pulse Generator with Emergency Stop Function

Availability: In stock, usually dispatched in 1 business day

  • Price:$98.14
  • Price in reward points: 981 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $96.18 $94.21 $91.27 $87.34 Contact US
Quantity:

XCWGP-06 Wireless Pulse Generator Handle Unit CNC MPG Wireless Manual Pulse Generator with Emergency Stop Function

Description:

- This product is a hand-operated pulse generator (hand-held electronic handwheel) used in conjunction with CNC machine tools. It has been widely used in CNC milling machines, CNC lathes, machining centers, CNC engraving and milling machines and other fields. The product adopts 2.4G wireless transmission technology, which eliminates the traditional wired connection and reduces equipment failures caused by cables. This product includes wireless electronic handwheel handheld terminal and receiving host. The receiving host is connected with the CNC system and PLC through multi-core shielded cable, and the handheld terminal communicates with the receiving host through 2.4G wireless transmission technology. The operator can get rid of the bondage of wired connection and walk freely by holding the handheld terminal. It is widely used in large CNC gantry milling and other occasions, which greatly facilitates the operator and improves the work efficiency.

Features:
- It adopted 2.4G wireless communication frequency band with the wireless communication distance of 50 meters (empty space).
- It adopted automatic frequency modulation function and 62 sets of wireless hand wheels are used at the same time without affecting each other.
- Support emergency stop function.
- Support 6 levels of shaft selection and 3 levels of multiplier switch.
- 5V and 12-24V dual power supply.
- Pulse signal: 100P/R positive differential output, pulse voltage can be 5V or power supply voltage.
- 2000mAH large-capacity lithium battery power supply, rechargeable, long time endurance.

Description of XCWGP-06 wireless electronic handwheel handheld terminal:
- Power status indicator:
  Green: power on
  Red: power on with low battery capacity, please charge as soon as possible
  Red and Green flash alternately: power off, the emergency stop switch is presses. In this state, the pulse generator is disconnected, but the power supply will not turn off until the battery protection is disconnected. Under normal circumstances, please do not press the emergency stop all the time, which may cause battery damage.
  Flashing red: charging
  Flashing green: finished charging
- Wireless signal indicator:
  No flashing: wireless connection is disconnected and data cannot be transmitted.
  Flashing: the wireless connection is successful and the data can be transmitted normally.
- Power switcher:
  Short press for power switch
  Press and hold for more than 6 seconds when the machine is turned on, and send a signal.
- Emergency stop: press the switch to trigger the emergency stop signal
- Shaft selection switch: 6 levels shaft selection signal
- Multiply switch: 3 levels multiplier selection
- Pulse encoder
- Charging interface
- Automatic shutdown without operation: the handheld terminal will automatically shut down if there is no operation within 30 minutes (emergency stop, no change of gear switch, no rotation of pulse encoder). If the emergency stop button is pressed, it will enter the red-green flashing state.

Description of XCWGP-06 wireless electronic handwheel receiver host:
- Status indicator:
  Off: no power supply
  Flash 3 times for 4 seconds: the power supply is normal, but there is no signal
  One second cycle flashing: the signal is normal
  Constant light: code matching mode
  At this time, the handheld terminal turns on the power supply, press the power switch for 6 seconds, and transmit a code matching signal. The receiving host will exit the code matching mode after receiving the code matching signal. It’s time to enter the 1 second cycle flashing mode. If the code matching signal is not received within 1 minute, exit the code matching mode. It is still received according to the original address. Multiple receiving hosts cannot be used for the same handwheel.
- Address learning input: press the hold the code matching key for 1 second to enter the code matching mode.
- Power input: the power supply of the receiving host includes DC 5V power supply and DC 12 ~ 24V power supply. As long as one of them is connected, it can work successfully (no setting is required, and DC 5V and DC 12 ~ 24V cannot be powered at the same time).
- DC 5V power supply: 4.8 ~ 5.5V voltage, at least 200mA current. If it is higher than 5.5V, it will break down; and it will not work if it is lower than 4.8V.
- DC 12 ~ 24V power supply application scenario:
  A: There is no DC 5V power supply
  B: The power of DC 5V power supply is insufficient
  B: The voltage drop of DC 5V power supply is too low due to circuit loss
  D: Pulse signal of 12 ~ 24 is required
- Pulse output: the pulse signal is positive differential output. If the controller does not support differential, just connect A+ and B+. Note that at this time, A and B cannot have any wires connection, and cannot connect this two wires together, nor can they connect to 0V. Otherwise it will cause a short circuit. If the direction is reversed, please exchange A, B, A+ and B+, A- and B-.
- Pulse voltage selection
- DC 5V power supply: output 5V pulse regardless
- DC 12 ~ 24V power supply: 5V or power supply voltage pulse output can be selected
- External antenna: external antenna, please place the antenna at a height without shelter.
- Emergency stop output: emergency stop is normally closed optocoupler output.
- Multiplication signal output: normally open optocoupler, common pole output.
- Axis selection signal output: normally open optocoupler, common pole output.

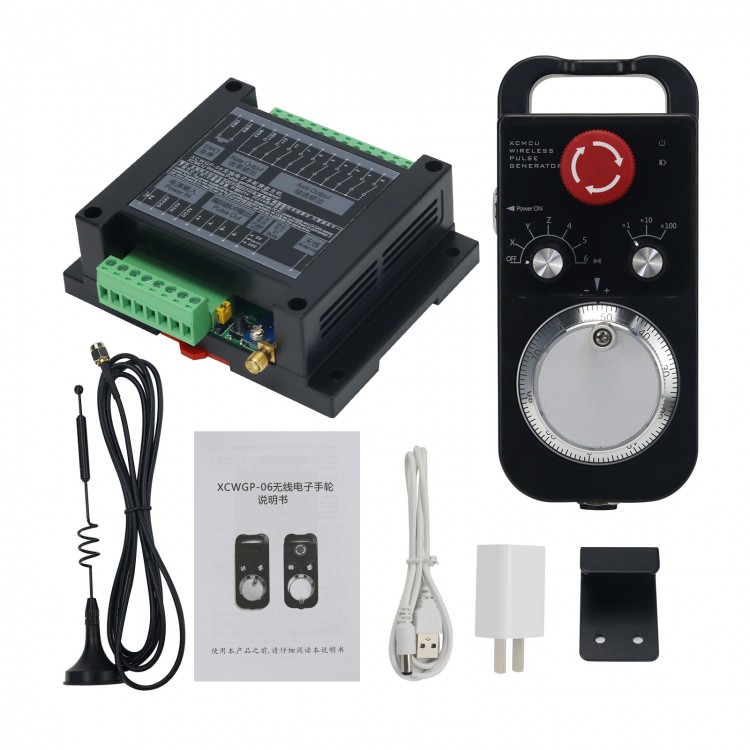

Package Included:

- 1 x Set of Wireless Pulse Generator
