DRSSTC Driver Tesla Coil Driver Kit w/ Power Interface Board Transformer Without Resonant Capacitors

Attention:

- Technical support is not provided. Professional knowledge is highly recommended.
- 4pcs IGBT power tubes use G4PC50UD and bus filter capacitors, which are imported and second-hand, while the performance is the same as that of brand new ones. Please make sure that you don't mind before purchasing. If brand new original ones are needed, please contact us to pay extra cost. Thank you!

Description:

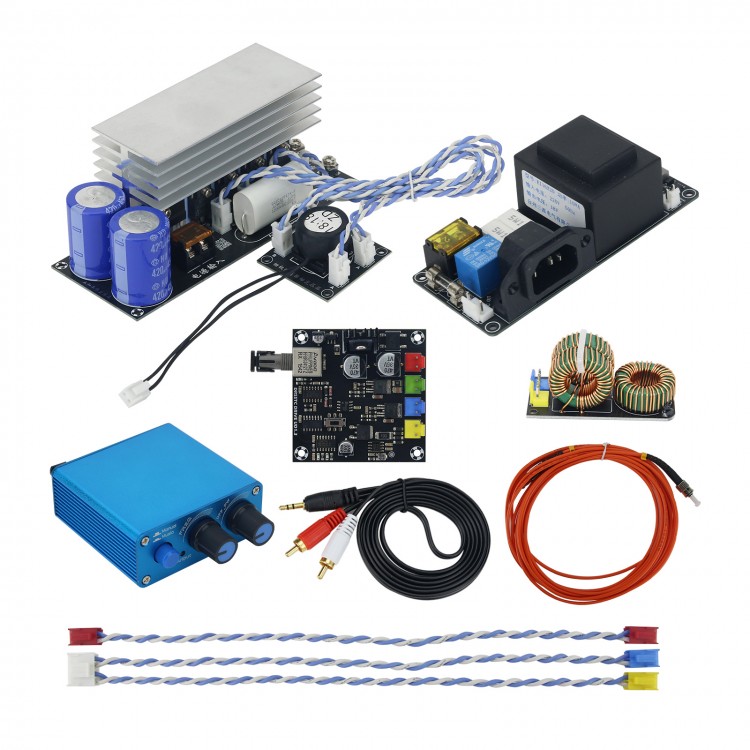

The whole set is the basic accessories for DRSSTC. IGBT converter module, grid drive transformer module, drive module, fiber pulse controller module, and module connecting cables are included. While other parts are needed to DIY DRSSTC.

It has upgraded its design and uniforms its interfaces to ensure easy wiring.

Package Included:

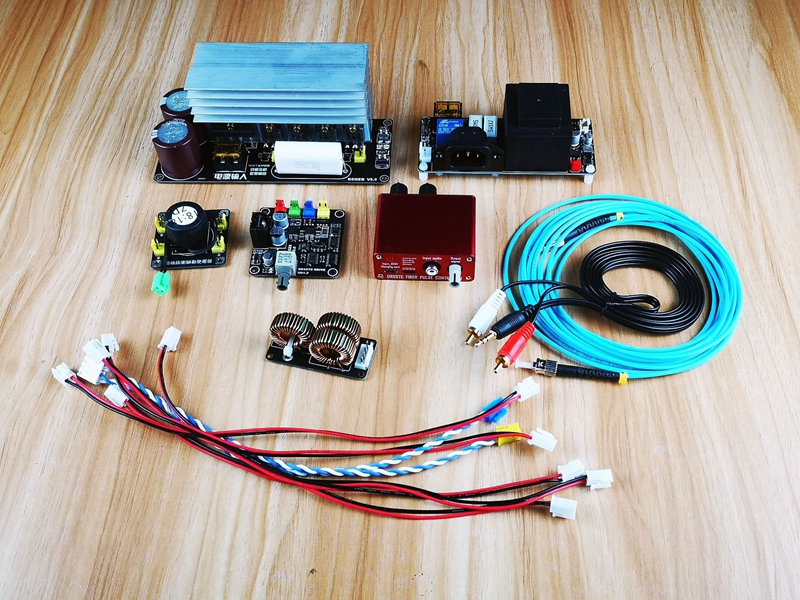

- 1 x DRSSTC Drive Board
- 1 x Set of DRSSTC Fiber Pulse Controller (With optic fiber and audio cable)
- 1 x Grid Isolated Pulse Drive Transformer (GDT Module)
- 1 x IGBT Full-Bridge Inverter Module
- 1 x Transformer Module
- 1 x Power Interface Board with Soft Start
- 1 x Set of Cables To Connect Modules' Terminals



Recommended Parameters of Secondary Coil:
- The number of winding turns: 1800T
- Wire specification: QZ-2/130-0.21MM
- Inductance: 79mH
- DC resistance: 303Ω
- The skeleton diameter: 110mm/4.3"
- Frame height: 500mm/19.7"
- Skeleton material: PVC

Recommended Parameters of Primary Coil:

- The number of winding turns: 10T
- Wire specification: 1.5 square RV copper wire
- Inductance: 30uH
- Skeleton diameter: 220mm/8.7"
- Winding spacing: 3mm/0.12"
- Frame material: PVC or 3240 epoxy board bracket

Recommended Parameters of Grading Ring:
- Outer diameter: 300MM/11.8"
- Ring diameter: 75MM/3"

Other Recommended Parameters:
- Use 0.05μF primary resonant capacitor
- Maximum parameters of arc extinguishing pulse width and frequency: 450Hz 50US
- The resonant frequency of the Tesla coil reproduced according to the above parameters is about 130KHz
