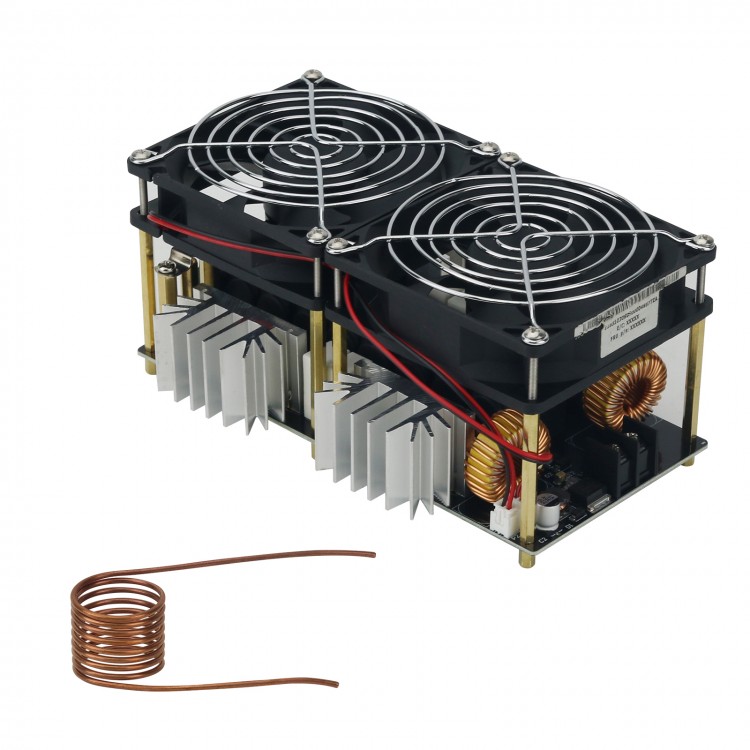

1800W ZVS Induction Heater Induction Heating Machine Low Voltage 12V-48V with Copper Heating Coil

1800W ZVS Induction Heater Induction Heating Machine Low Voltage 12V-48V with Copper Heating Coil

Features:
- Efficient Heat Dissipation: This product has a maximum power of 1800W, super PCB layout design and super heat sink, superior heat dissipation effect. 12-48V low voltage DC power supply with a maximum current of 40A. It can work continuously for several hours with good heat dissipation. Do not heat metal that is too large or it may be overloaded. Please add a 35A fuse or ammeter
- Easy to Use: Can be used for small parts DIY players do hardening, annealing and other heat treatment.Also can be used with a graphite crucible melting gold, silver, copper, aluminum and other metals, uniform heating fast, very convenient. Not for industrial production. With a cooling fan interface, can also do Tesla discharge, generator voltage inverter, etc. It is recommended not to exceed 48V 35A to prevent accidents and damage
- High Performance: The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back surface of the resonant circuit common, continuous work, please add a fan to blow down from above, to the resonance capacitors and other components cool. When using a switching power supply, make sure that the power supply voltage is stable before connecting to the induction heating circuit (Note: Although this driver board can withstand more than 40A, it is recommended not to exceed 48V 35A to prevent accidents and damage. The minimum input voltage of the module is 12V, the voltage of 12V must be greater than 10A to use the power supply. If you find that the MOSFET is hot, first consider whether the power output meets the requirements. Do not clear the circuit board, otherwise it will emit a very high frequency of noise, and then the MOSFET will burn out)
- Quality Service: It is recommended to use a 36V 20A power supply. Below 12V is very dangerous.

Specifications:
- Input Voltage: DC 12V-48V (Recommendation: above 36V)
- Power Requirements: Less than 12V ≥10A, More than 15V ≥15A
- Maximum Power: 1800W
- Maximum Current: 40A
- Internal Diameter of Heating Coil: 70mm / 2.8in
- Maximum heating temperature of metal iron: 800-900℃
- Maximum temperature of crucible: 1600℃

Package Included:
- 1 x Main Unit
- 1 x Copper Heating Coil

Note:
1. When using a switching power supply, make sure that the power supply voltage is stable before connecting to the induction heating circuit.
2. Do not heat metal that is too large or it may be overloaded. Please add a 35A fuse or ammeter.
3. Although this driver board can withstand more than 40A, it is recommended not to exceed 48V 35A to prevent accidents and damage.
4. The minimum input voltage of the module is 12V, the voltage of 12V must be greater than 10A to use the power supply.
5. If you find that the MOS tube is hot, first consider whether the power output meets the requirements.
6. Do not empty the circuit board, otherwise it will emit a very high frequency of noise, and then the MOS tube will burn out.
7. It is recommended to use a 36V 20A power supply. Below 12V is very dangerous. When the voltage is lower than 12V, it will cause the two MOSFETs to be turned on at the same time, and the MOSFET will be burned off.
