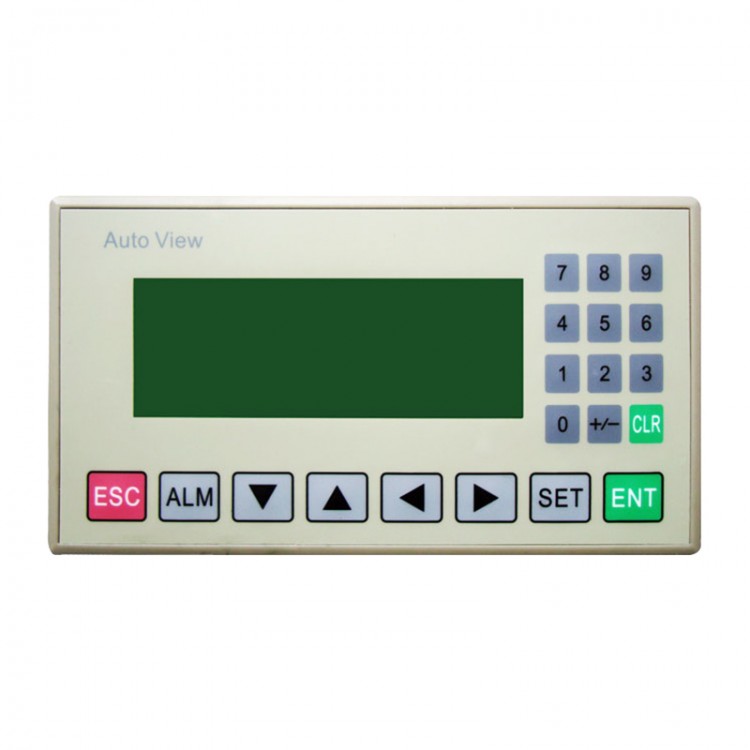

MD204L 3.7Inch HMI Operate Text Panel STN 192x64 LED Nontouch Kinco OP Text Display Autoview Replacing OP320 for PLC
Features:
- The speed of configuration downloading is faster.
- Operating speed of the program is greatly improved.
- Add AB-DF1, ECOSTEP, RTU/ASCII MODBUS and other protocols support.
- An alert list is open for all protocols, and a warning list is relieved of the restriction of a bit offset in some protocols.
- Add the new single function key set engineering data register parameter function, add register conversion function
- Support the enhanced version of the free agreement.
- Remote upgrade function.
Parameters:
- Display: 3.7"FSTN
- Resolution: 192 x64 Pixel(Supporting Display of 4 Lines 12 Chinese Characters)
- LCM life time: Greater than 50,000 Hours at 252 65±10%RH
- Brightness: 97 cd/mxm
- Color: Monochromatic
- Contrast: Adjustable by Potentiometer
- Backlight: Long Service Life Yellow / Green LED
- CPU: 8-bit Processor
- Memory: 64KB Flash ROM
- COM port: COM1: PC RS232 & PLC RS485/422 & PLC RS232
- Real-time clock: No
- Function key: 19Keys, Customizable(Including 12 Numeric Input Keys)
- Printer port: N/A
- Allowable power failure: Within 20ms
- Power supply: 12~24 VDC ±10%<150mA 24VDC
- Interference immunity test: Voltage 1500Vp-p, Pulse cycle 1us, Duration 1s
- Dielectric strength: 500V AC (1 min)
- Isolation resistance: Exceed 10M at 500V DC
- Vibration endurance: 10 to 25 Hz(x, y, z Direction, 2G, 30 Minutes)
- Protection class: IP65 Front Panel
- Operating temperature: 0~50 °C
- Operating humidity: 20~90 % RH (non-condensing)
- Storage temperature: -20 °C~70 °C
- Enclosure: Engineering Plastic ABS + PC
- Dimensions(W x H x D): 172 × 95 × 30mm
- Display size(W x H): 101 × 36 mm
- Weight: 0.3 Kg
- Panel cutout dimension: 165 × 86mm
- Cooling method: Natural Air Cooling
Package Included:
- 1 x MD204L Text Display
