Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $122.66 | $120.15 | $116.40 | $111.39 | Contact US |
Color: | Yellow / Gold (Optional) |
Material: | ABS Plastic + Aluminum + Copper |
Min Detection Diameter: | 8" (Test Coin: US ¢50) |
Detect Objects: | Metal |
Operate Current: | STANDBY 65mA, MAX 150mA |
Operating Voltage Range: | 7.2-9.6v |
Operating Frequency: | 7.5KHZ+/-1KHZ |
Audio Frequency: | 294Hz(re)/ 330Hz(me)/ 349HZ(fa) / 392Hz(so) /440Hz(la) /494Hz(ti) /523Hz(do) |

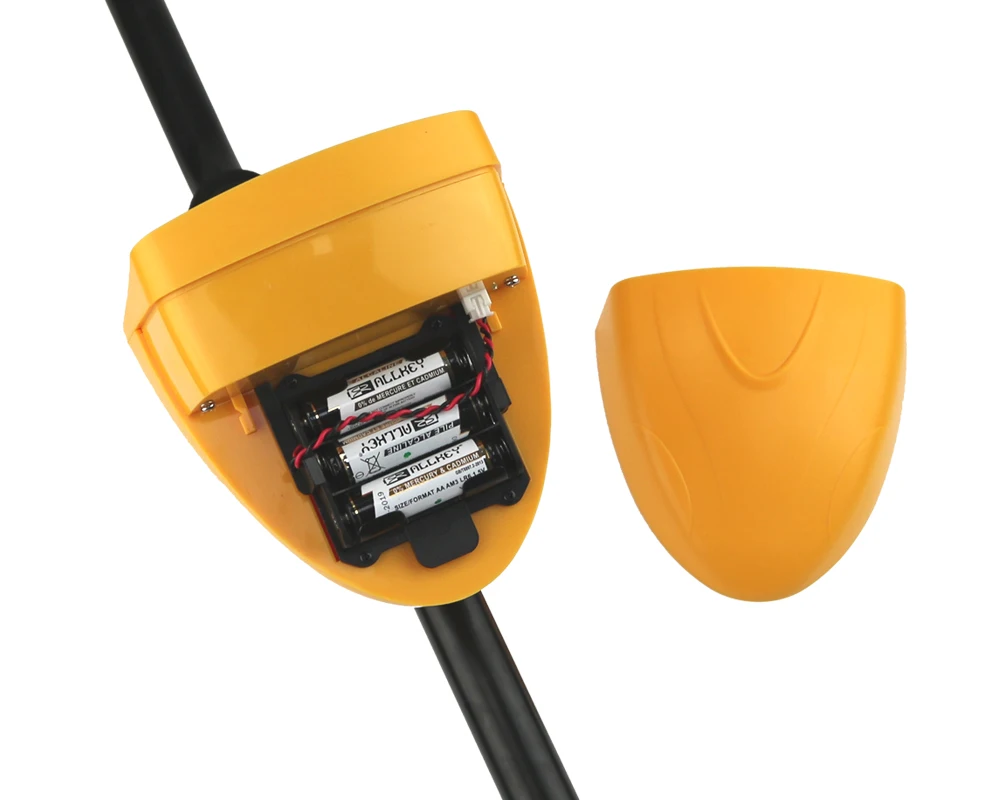

Power Supply: | 6 x 1.5V AA Alkaline Batteries (Not Included) |
Detection Indication: | LCD Analogue Display Mode, Audio Mode |
Sensitivity: | Applicable for detecting gold, silver, aluminum, copper, iron, and rare metals. |
Application: | Testing metal foreign body of raw materials, fuel and food, Detection of underground pipeline & line, Archaeology, Exploration, Found buried treasures of gold, silver and metal artifacts. |
Operating Temperature: | -20~60℃ / -4~140℉ |
Storage Temperature: | -30~60℃ / -22~140℉ |

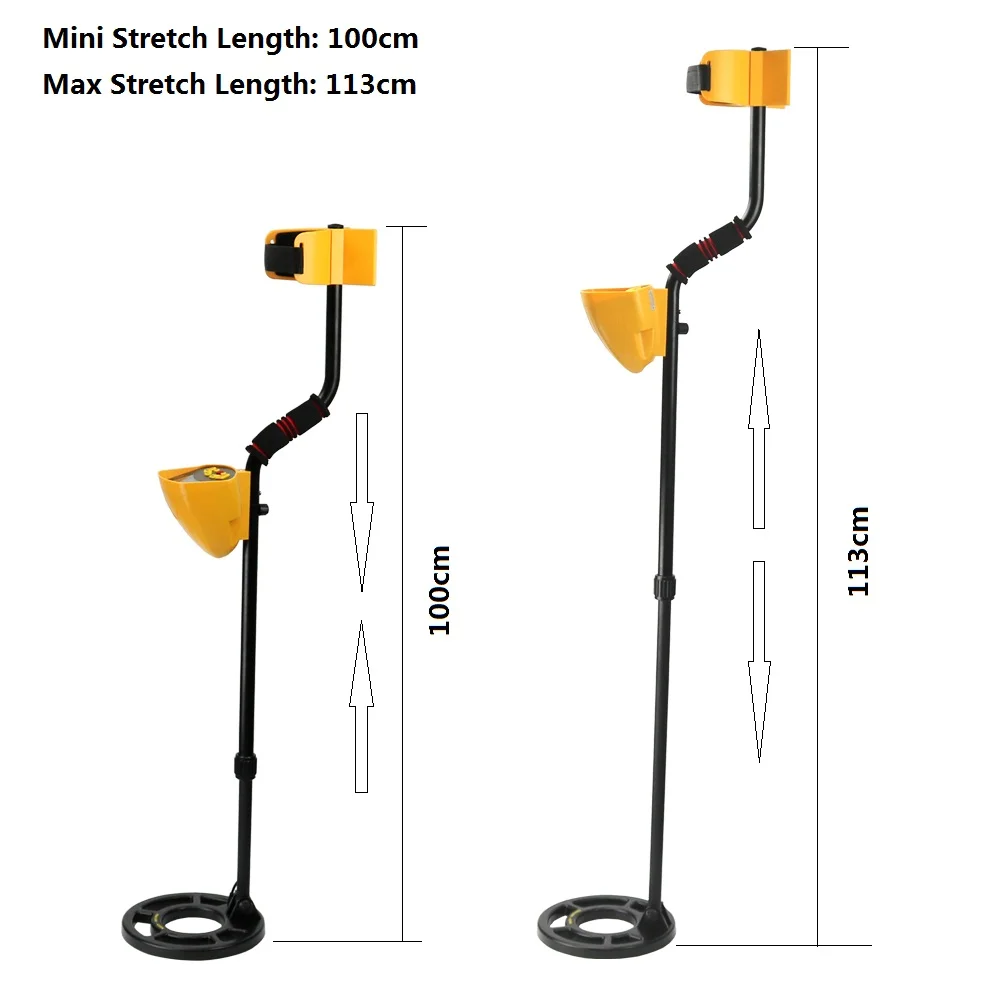

Item Size: | 120 * 34.5 * 15cm / 11.81 * 11.81 * 44.68in |
Item Weight: | 1.04kg / 2.29 lb |
Package Size: | 56 * 19 * 16cm / 22.05 * 7.48 * 6.30in |
Package Weight: | 1.59kg / 3.51 lb |
Package List: | 1 * Metal Detector Main Unit 1 * Extension Aluminum Tube 1 * Armrest 1 * Connecting Rod 1 * User Manual |
1.SEALING 2.ARMREST 3.ARMREST STEM 4.ADJUSTMENT 5.CONTROL PANEL 6.HANDLERY COMPARTMENT 7.CONTROLLER UNIT 8.KNOB NUT 9.MAIN ENGINE 10.UPPER STEM 11.STEMLOCK NUT 12.LOWER STEM 13.SEARCH COIL KNOBS 14.SEARCH COIL ASSEAMLY |
Assembling The Detector

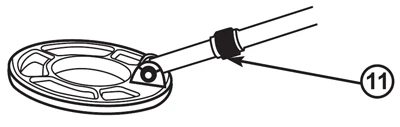

1 Rotate the STEM LOCK NUT(11) Clockwise until loosens | 2. Slide the UPPER STEM (12) towards the SEARCH COIL (14) as indicated by an arrow until you can see a micro-plug metal connector. Pull out the plug so that hold it on your hand. |
3. Locate the micro-jack connector in the HANDLE ASSEMBLY(6). Connect the plug and the jack together and care of alignment marks showing on the surface of the jack and plug | 4. Slide the UPPER STEM(10 towards to the CONTROLLLER UNIT. should be takenfor the direction of the cut slot (of the upper Stem which should be pull unerneath the support of the controller unit. |

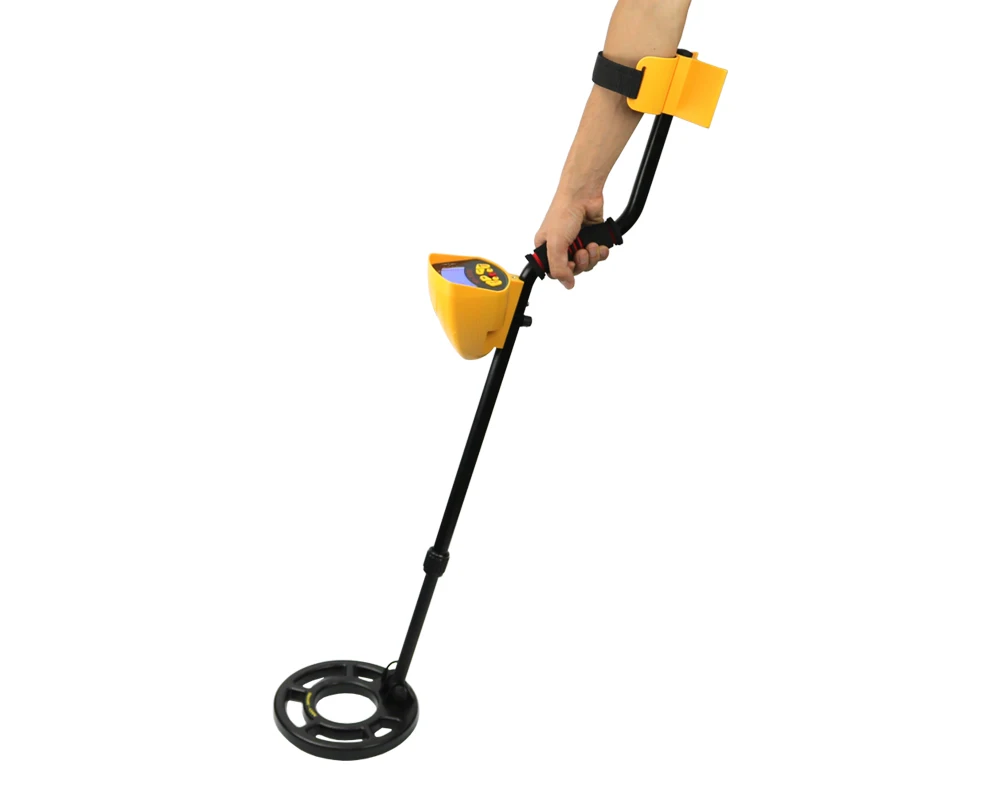

5.Tighten the KNOB NUT which is located uner the CONTROLLER UNIT(7) | 6. Adjust the LOWER STEM (12) so that wen you stand upright with the detector in you had, the SEARCH COIL (14) is level with and about 1/2 to 2 inches above the ground with your arm relaxed at your side. |

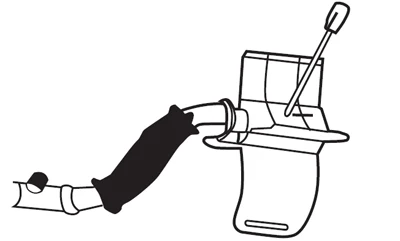

7. Tightten the STEM LOCK NUT(8) in reverse direction(counterclockwise) to lock it in place. 8. Loosen the SEARCH COIL KNOBS(13) at the SEARCH COIL ASSEMBLY(14), then adjust the search coil to the desired angle. (The Search Coil should be parallel with the ground). Tighten the knobs just enough to keep the search coil from rotating or wobbling. | 9. Loosen the 1 screws at the bottom of ARMREST. Adjust the armrest so that it should be near to the end of your forearm. Tighten the 1 screws in the reverse direction |
Control Panel and LCD Display

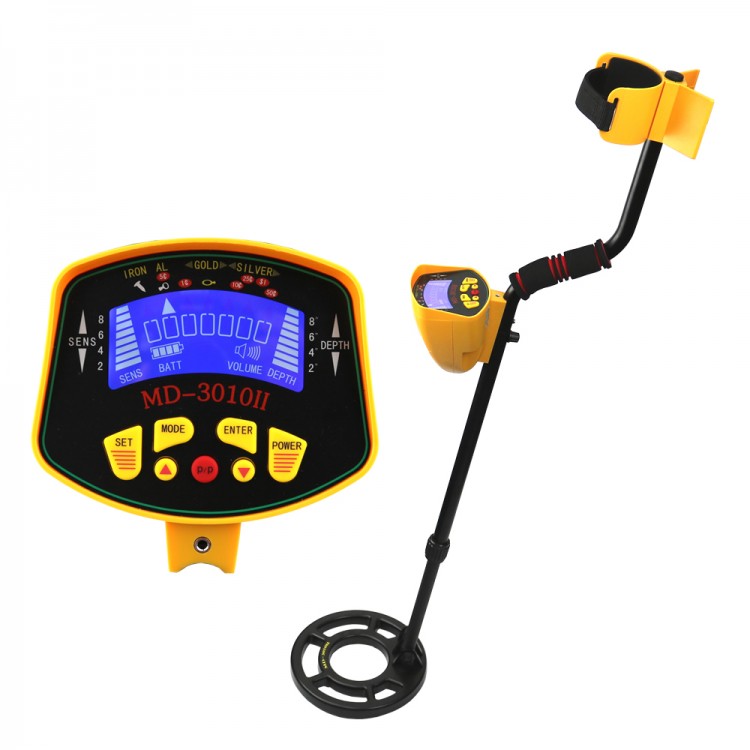

| 1.MODE (Select to ignore a targets (Eliminates a targets) or assigns to tone to a target 2.SET (Select a function) 3.MOVE (move to the right position 4.P/P(target) 5.LCD Display 6.ENTER 7.POWER ON/OFF 8.MOVE (move to the left position) 9.PHONE |
| 1. Sensitivity: 8 levels available for sensitivity adjustment. 2. Depth: 8 levels available for depth display. 3. Hightlight a Target: A rectangular box encircling a target Icon flashed when target is selected or being detected.4. Target Eleminate Indicator: indicates the target that you don't want to detect. 5. Target Icons: To show each icons when you choose. 6. Tone Volume: there are 4 levels of tone volume. 7. P/P: cooperate with P/P button to search target.8. Battery Condition Indicator. |
|
