  • Micro Slipring Electric Conduction 360 Degree Rotary Connector External Dia 22MM 12 Cores

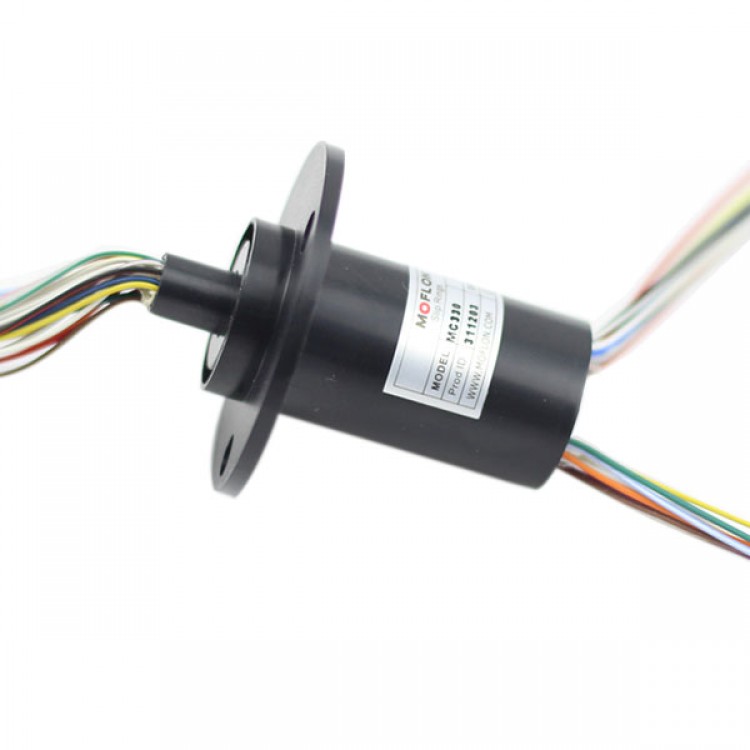

Micro Slipring Electric Conduction 360 Degree Rotary Connector External Dia 22MM 12 Cores

Availability: In stock, usually dispatched in 1 business day

  • Price:$11.94
  • Price in reward points: 119 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $11.70 $11.46 $11.10 $10.63 Contact US
Quantity:
Buy it now Add cart

You might like

Metal Case Enclosure with Power Reset Control Switch for NVIDIA Jetson Nano Developer Kit A02 / B01 / 2GB

Metal Case Enclosure with Power Reset Control Switch for NVIDIA Jetson Nano Developer Kit A02 / B01 / 2GB

$22.20

(0)
EMC EMI Test Passive Near Filed Probe Kit With Wideband Preamplifier AMP-L Module 10MHz-3GHz

EMC EMI Test Passive Near Filed Probe Kit With Wideband Preamplifier AMP-L Module 10MHz-3GHz

$179.53

(0)
Micro Hole Dia 5mm Slipring External Dia 22mm 12 Channel 2A

Micro Hole Dia 5mm Slipring External Dia 22mm 12 Channel 2A

$17.66

(0)
EMC EMI Test Passive Near Filed Probe Kit With Wideband Preamplifier AMP-H Module 100MHz-4GHz

EMC EMI Test Passive Near Filed Probe Kit With Wideband Preamplifier AMP-H Module 100MHz-4GHz

$212.15

(0)
PortaPack H2 + HackRF One R9 SDR V2.0.0 + 0.5ppm GPS TCXO + Havoc Firmware + 3.2 Inch LCD Display

PortaPack H2 + HackRF One R9 SDR V2.0.0 + 0.5ppm GPS TCXO + Havoc Firmware + 3.2 Inch LCD Display

$135.79

(0)
HENGE MD933 Digital Servo 12g Metal Gear for TREX 450 (3-Pack)

HENGE MD933 Digital Servo 12g Metal Gear for TREX 450 (3-Pack)

$42.31

(0)
uConsole A-06 Modular Computer Pocket-Sized Portable Computer with 5" Color Display for Clockwork

uConsole A-06 Modular Computer Pocket-Sized Portable Computer with 5" Color Display for Clockwork

$610.48

(0)
1MHz-6GHz Assembled SDR Radio with PortaPack H2 + HackRF One R9 V2.0.0 + Antenna + Data Cable

1MHz-6GHz Assembled SDR Radio with PortaPack H2 + HackRF One R9 V2.0.0 + Antenna + Data Cable

$146.72

(0)

Micro Slipring Electric Conduction 360 Degree Rotary Connector External Dia 22MM 12 Cores

Description:

Channel Num 12 Current 3A
Voltage 240 VDC/VAC Max rotation speed 250RPM
Shell material ABS plastic Torque 0.02N.m
Working hours >40M R Material metal: goln
Noise <10 mohm Touch resistor <10mohm(AWG12#,300mm)
compression strength 600VDC@50Hz

Isolation strength 1000MΩ@500VDC Cable length 250mm
Operating temp -40°C to 80°C Protection level IP51
Shockproof level MIL-SID-810E Working Humidity 10% to 85% RH
Material RoHS authentication CE authentication yes
