Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $44.61 | $43.70 | $42.33 | $40.51 | Contact US |

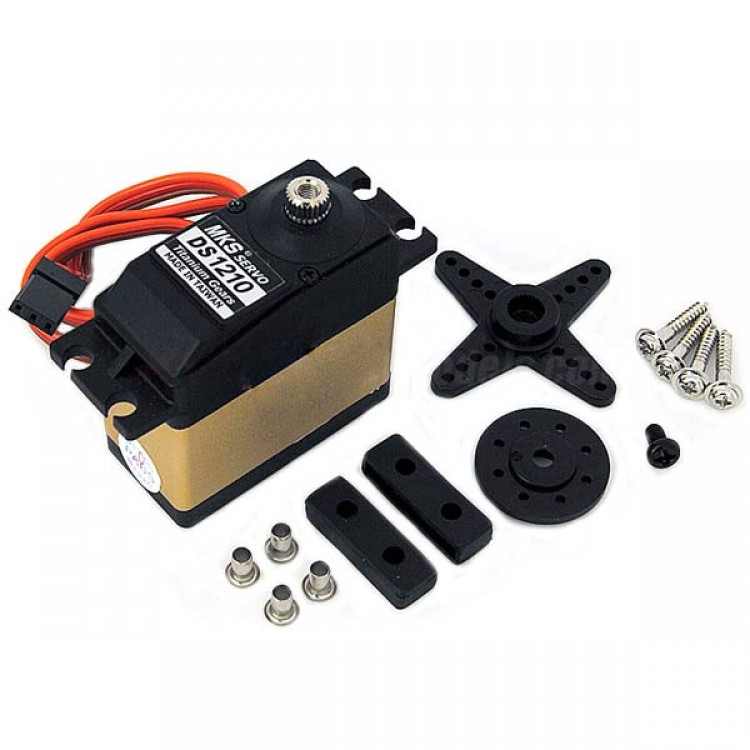

MKS DS1210 Titanium Gear Servo Metal Gear (0.12 sec/10kg-cm)
Dead Band | 0.002ms (Default) | |
Control System | +Pulse Width Control | |
Working Frequence | 120Hz | |
(RX) Required Pulse | 3.0~5.0 Volt Peak to Peak Square Wave | |
Operating Voltage | 4.8~6.0 V DC Volts | |
Operating Temperature Range | -10 to + 60℃ | |
Operating Speed (4.8V) | 0.15 sec/60° at no load | |
Operating Speed (6V) | 0.12 sec/60° at no load | |
Stall Torque (4.8V) | 8.05 kg-cm (111.79 oz/in) | |
Stall Torque (6V) | 10 kg-cm (138.87 oz/in) | |
360° Modifiable | NO | |
Motor Type | DC Motor | |
Potentiometer Drive | Direct Drive | |
Driver Type | FET | |
Bearing Type | Dual Ball Bearings | |
Gear Type | metal gear | |
Programmable | NO | |
Connector Wire Length | 15.0 cm (5.9 in) | |
Dimensions | 40X20X40.30 mm (1.5748X0.7874X1.58 in) | |
Weight | 56 g (1.97 oz) |
