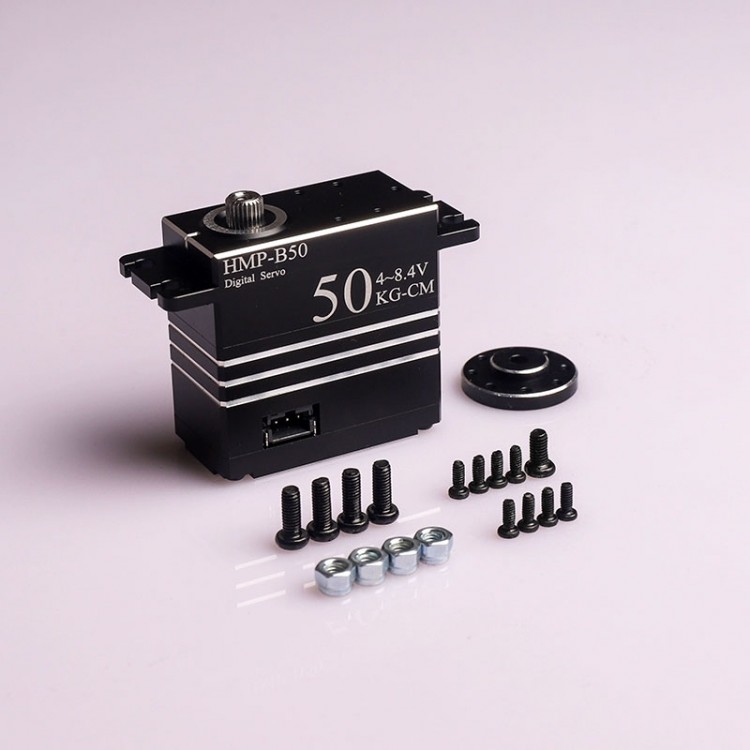

HMP-B50 50KG One Shaft Brushless Servo PWM Digital Servo High Torque Servo Accessory for Robots PTZ
Features:
- All-metal brushless servo with high torque
- Data feedback: timely feedback of the angle, temperature, voltage and speed of the servo
- Thickened stainless steel gears: 25T thickened all-stainless steel gears are wear-resistant and have a longer life
- Multiple protection: locked-rotor protection, temperature protection and voltage protection
- All-aluminum alloy shell: CNC machined aluminum alloy shell has strong thermal conductivity. All-metal gears greatly improve the performance of the servo. Aviation aluminum alloy raw material is impact resistant, enabling fast heat dissipation
- Serial connection: Theoretically, 253pcs servos can be serialized in single/unified motion. Each servo should be assigned with an ID
Application Scenarios:
- Robots, robotic arms, PTZ, etc.
- RC applications: drones, rock crawlers, short trucks, helicopters and the like
- Medical equipment: surgical instruments, medical testing and so on
- Non-standard automation: production line automation and automation equipment
- Commercial applications: service robots, monitoring equipment, stage lighting, etc.
Product Parameters:
- Size: 40*40*20mm
- Operating voltage: 4-8.4V
- Operating temperature: -20 to 60°C
- No-load speed: 0.12s at 60°
- Control signal: UART/PWM
- Rated torque: 50KG
- Rotation angle: 360°
Package Included:
- 1 x Set of Digital Servo
