Hiwonder HPS-0127 280° 1.8KG Micro High-Speed Servo Single-Shaft Robotic Servo w/ Clutch Protection
Features:
HPS-0127 Micro High-Speed Stall-Proof Servo
* Designed specifically for robots.
* High rotation speed: 0.05s/60°.
* Clutch protection gear.
* Precise 280° control.
* Provides control source code for 51, Ar-duino, STM32, and Raspberry Pi.
Clutch Protection Gear
* When the servo stalls due to excessive load, the gear automatically triggers clutch protection, ensuring the servo quickly returns to normal operation and greatly extends its service life.
1.8KG Stall Protection
* The servo supports a maximum torque of 1.8kg. When the load exceeds 1.8kg, the clutch protection is automatically triggered to ensure normal operation.
0.05s/60° High Speed
* After deep optimization, the servo can achieve a high speed of 0.05s/60° at 7.4V, suitable for high-speed applications.
Imported Potentiometer
* It uses an imported high-precision potentiometer, greatly improving accuracy and linearity. Movement is very precise, meeting the needs of building robots.
280° Precise Control
* The servo uses a high-precision potentiometer and PWM control to achieve precise output within 0–280°.
Specifications:
* Product Name: HPS-0127 Micro High-Speed Stall-Proof Servo
* Brand: Hiwonder
* Product Weight: 9.5g

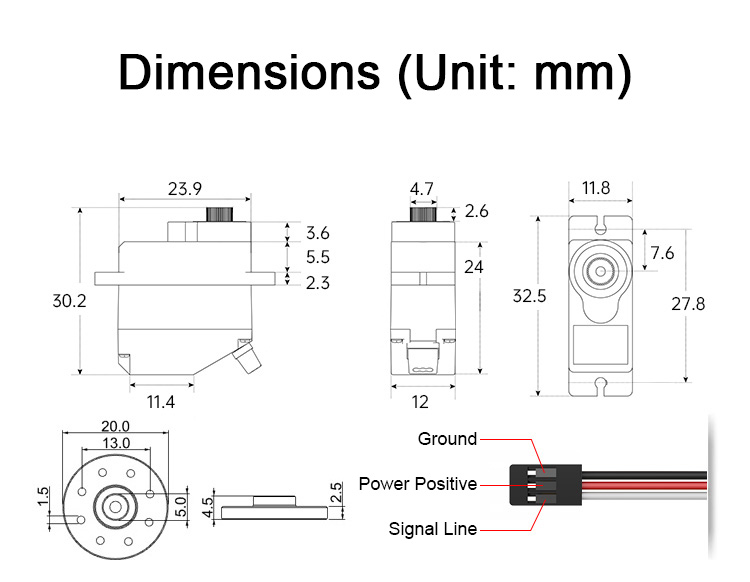

* Product Size: 23.9mm × 12mm × 24mm
* Operating Voltage: 7.4–8.4V
* No-load Speed: ≤0.05sec/60° at 7.4V
* Maximum Torque: 1.8kg·cm at 7.4V
* Rotation Range: 0–280°
* Repeat Positioning Accuracy: ≤1°
* Stall Protection Method: Stall protection via clutch gear
* No-load Current: ≤180mA
* Stall Current: ≤1A
* Control Method: PWM pulse width control
* PWM Pulse Width Range: 500–2500µs, corresponding to 0–280°
* Gear Type: Plastic shaft (with clutch design)
* Horn Gear Teeth: 40T/Φ4.85mm
* Cable Length: 150mm (exposed, excluding connector)
* Reduction Ratio: 1:195
* Suitable For: Various bionic robot joints

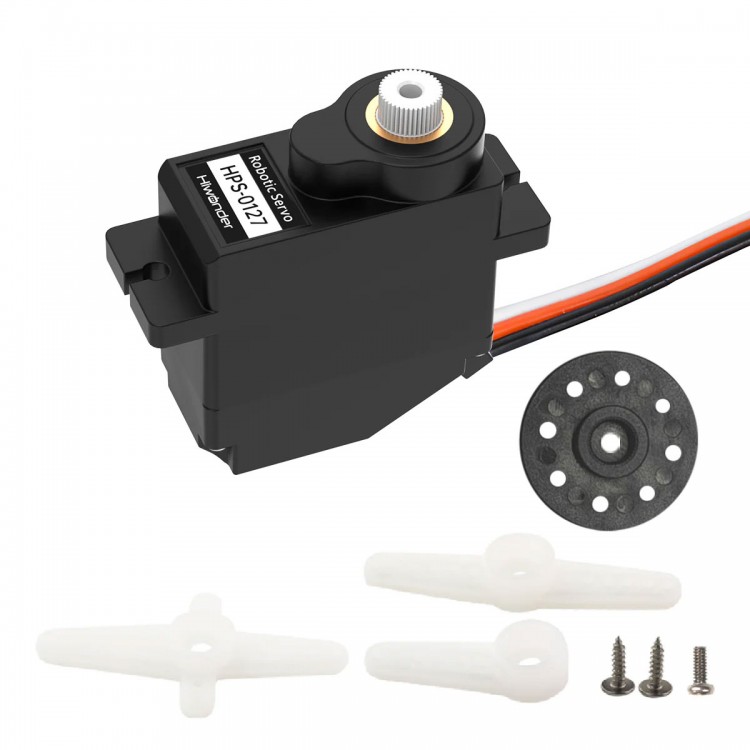

Packing List:
* 1 × HPS-0127 Micro Servo
* 1 × Servo Accessory Kit
* 1 × Round Plastic Servo Horn (Thickness 4.5mm)
Packaging Details:
* Weight: 0.15kg
