MPU6050 6DOF Gyroscope and Acce​lerometer Sensor Module 3-6V
  • MPU6050 6DOF Gyroscope and Acce​lerometer Sensor Module 3-6V
  • MPU6050 6DOF Gyroscope and Acce​lerometer Sensor Module 3-6V
  • MPU6050 6DOF Gyroscope and Acce​lerometer Sensor Module 3-6V

  • SKU:27555
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 1
  • Price:$13.90
  • Price in reward points: 139
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $13.62 $13.34 $12.93 $12.37 Contact US

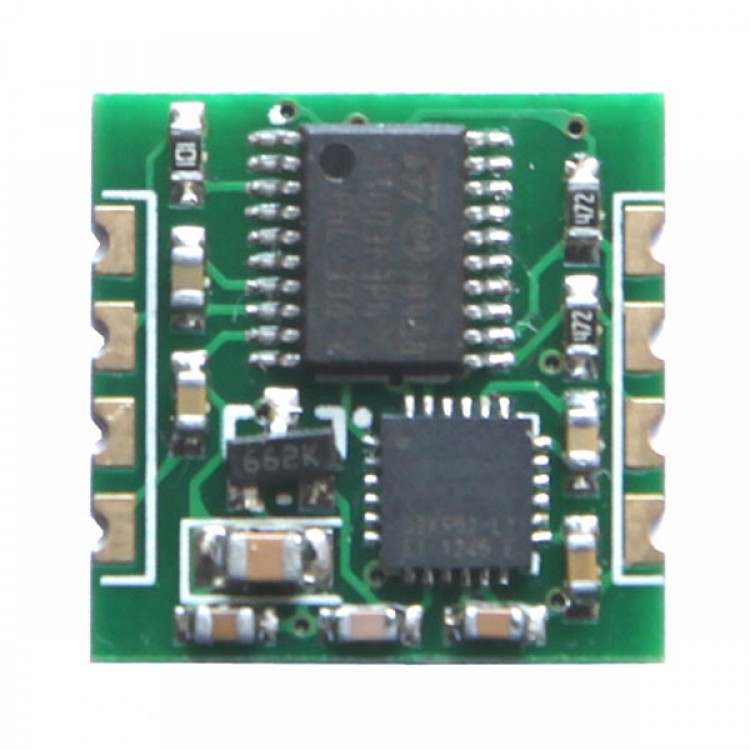

MPU6050 6DOF Gyroscope and Acce​lerometer Sensor Module 3-6V



Module parameters:
1. Voltage: 3V~6V
2. Current: <10mA
3. size: 15.24mm X15.24mmX2mm
4. the pad pitch: up and down 100mil (2.54mm), around 600mil (15.24mm)
5. measuring dimensions: Acceleration: three-dimensional.angular velocity: three-dimensional. attitude angle: three-dimensional
6. range: Acceleration: ±2g, angular velocity: ±250°/s.
7. resolution: Acceleration: 6.1e-5g, velocity: 7.6e-3°/s.
8. Stability: Acceleration: 0.001g, angular 0.02°/s.
9. attitude measurement stability: 0.01°.
10. the data output frequency 100Hz (baud rate 115200)/20Hz(9600 baud).
11. Data Interface: Serial (TTL level), I2C (directly connected MPU6050, no gesture output)
10. baud rate 115200kps/9600kps.
11. to provide single-chip analytic sample code.











Package list:
- 1 x MPU6050 6DOF Gyroscope and Acce​lerometer Sensor Module
