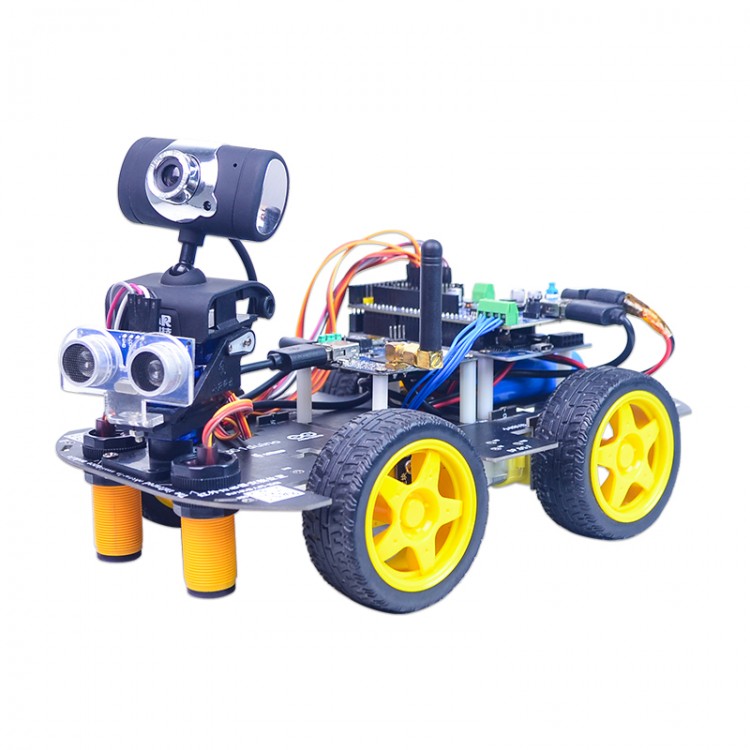

XIAOR GEEK DS Robot Car STM32 Wifi Obstacle Avoidance Robot Kit Line Tracking Robot Car + 45 Sensors

XIAOR GEEK DS Robot Car STM32 Wifi Obstacle Avoidance Robot Kit Line Tracking Robot Car + 45 Sensors

Features:
- Wifi and Bluetooth control modes (Wifi mode by default)
- Support WeChat mini program to control the car
- STM32 robot main control template + PWR robot voltage regulator and motor drive motherboard, motor and servo drive are all available. It supports common sensors and peripherals
- Robot-Eyes HD camera with adjustable manual focus. The camera supports up to 480P quality
- Ultrasonic module + base
- Industrial-grade infrared tracking/obstacle avoidance sensor
- 2DOF video PTZ: You can flexibly control the PTZ to rotate up, down, left and right through your phone or mouse
- Solid tire +EMC: electromagnetic filter motor with strong anti-interference
- Multi-function motherboard: careful layout, reasonable wiring, and precise layout. STM32 robot main control board + PWR robot voltage regulator and motor drive motherboard, motor and servo drive are all available. It supports common sensors and peripherals
- High-performance WiFi module for stable transmission: Our self-developed XRbot-link wireless video transmission module is equipped with an external 2dBi antenna to make the signal stronger and the transmission stable
- Multiple control methods: support for Android device control, iOS device control, RC controller (optional), computer device control, and Web page control
- 6-12V high-power motors provide a steady stream of stable and lasting power for the robot
- Powerful robot control software: multi-channel video transmission, 360-degree monitoring. Sensor data collection and display, real-time transmission of detailed data
- Multifunctional robot chassis: PCB multifunctional chassis, with high strength and strong expandability. With tips on the board, it is easy to install

Specifications:
- Motor drive: Imported L298N two-way high-power motor drive chip
- Main control board: STM32
- Charging method: direct charging
- Frequency range: 2.400-2.4835GHz
- Camera: HD camera (adjustable distance)
- Dimensions: 255 x 160 x 160mm/10 x 6.3 x 6.3"
- Compilation environment: for IAR
- Wireless communication: Support 802.11b/g/n protocol, up to 150Mbps
- Signal range: ≤ 80m/262.5ft open distance
- Remote control mode: 1. APP for IOS; 2. APP for Android; 3. PC client; 4. Web page control

Package Included:
- 1 x Set of Robot Car
- 1 x Clock module
- 1 x Flame sensor
- 1 x Two-color LED module
- 1 x Button switch module
- 1 x Analog Hall
- 1 x IR emission module
- 1 x XY joystick
- 1 x Linear Hall
- 1 x Small two-color LED module
- 1 x Shock switch module
- 1 x Hall magnetic module
- 1 x Temperature and humidity module
- 1 x Relay
- 1 x Touch module
- 1 x Reed switch
- 1 x Rotary encoder
- 1 x High-sensitivity sound module
- 1 x Digital temperature module
- 1 x TEMP 18B20 module
- 1 x Laser transmitter module
- 1 x Mini Reed
- 1 x Light cup module
- 1 x Analog temperature module
- 1 x SMD RBG module
- 1 x Small microphone module
- 1 x Active buzzer module
- 1 x MPU6050 gyroscope module
- 1 x Mercury switch
- 1 x Tracking module
- 1 x Passive buzzer
- 1 x IR receiver
- 1 x Soil module
- 1 x Finger heartbeat module
- 1 x Tilt switch
- 1 x Light blocking module
- 1 x Tap module
- 1 x Obstacle avoidance module
- 1 x RGB LED module
- 1 x 7-color flashing module
- 1 x Photosensitive module
- 1 x Water level module
- 1 x MP1584EN buck module
- 1 x SD reader module
- 1 x HC-SR04 ultrasonic module
- 1 x 3.3/5V power supply module

Note:
- Battery is not included.
- Assembling is needed.
