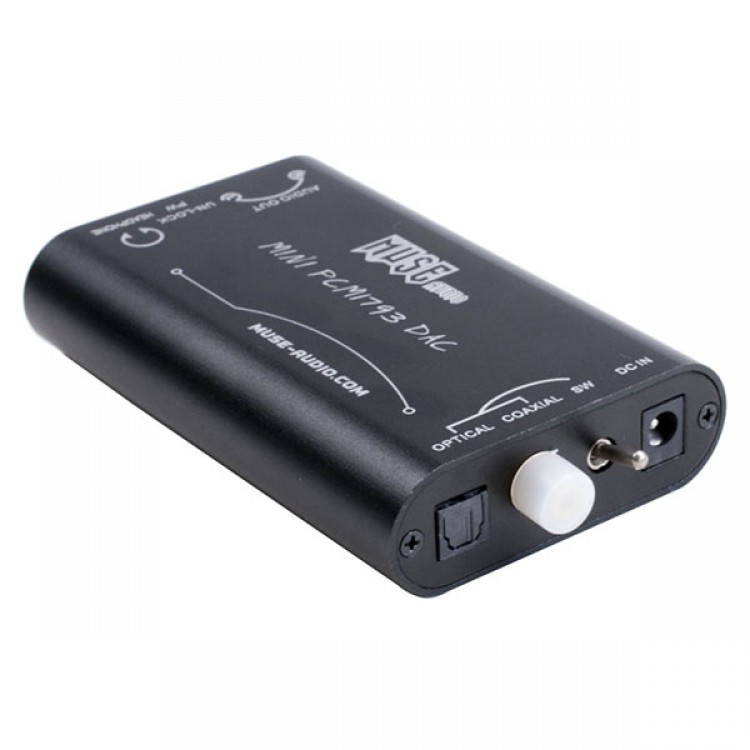

Muse MINI TDA1793 DAC (PCM1793+DIR9001+OPA2134) PC DAC Headphone Amplifier + Power Supply Black
- This is a Early burn high-quality goods!This DAC for super entry-level DAC, it can be used widely for Multi-media systems, or connected to DVD/CD or other DTS (Digital Transmission System), it has no Adjustment point,is a high performance-price ratio product!
For fever fans comparation(suggestion):
- MINI TDA1543 DAC sound: sound like LP style,alto voice sounds sweet,High-frequency extensions is not so good.
- MINI PCM1793DAC sound: normal HIFI style,treble analysis excellently!the sound is pure!
- DAC core component part: DIR9001 + PCM1793 + OPA2134 framework
- Power supply mode:Built-in Single to dual power supply
- Input:coaxial/Optical input
- Output: RCA output x1 3.5mm headphone jack x1
- Input Voltage:DC 9V-15V
- Decoder chip: PCM1793-Advanced Segment DAC,192K/24BIT Digital analog conversion chip
- The famous KECES PCM1793 DAC uses this chip either.
- Dynamic Range: 113 dB THD+N: 0.001%
Data receiving devices:TI DIR9001 Digital audio receiver chips
-Very Low Jitter System Clock Output (50 ps Typically)
-compatible with up to 96KHZ Sample Rate Audio data signals
-compatible with any types of Delta-Sigma Digital/analog audio change device.
-super low jitter makes Dir9001 has melodious tone, at the same time, it's one of the lowest jetter among most popular digital receiver chip in the market.DIR9001 is a digital receiver has the same function with CS8414,CS8412CP!
- Output: Active LPF-preset BB OPA2134 OP IC,OP uses the straight inserted encapsulation, users can according to personal taste for replacement!
- Input interface:Coaxial input x1 Optical input x1
- Output interface: RCA output x1 3.5mm headphone output x1
- DAC Size: 10cm x 6cm x 2cm (3.94in x 2.36in x 0.79in)
- weight:0.7kg (1.54lb.)
- Color: Black(Silver optional)
- 1 X MUSE MINI PCM1793 DAC Black (If you want the Silver color, please note we pay for it.)
- 1 X Power Supplier 12V 1A
