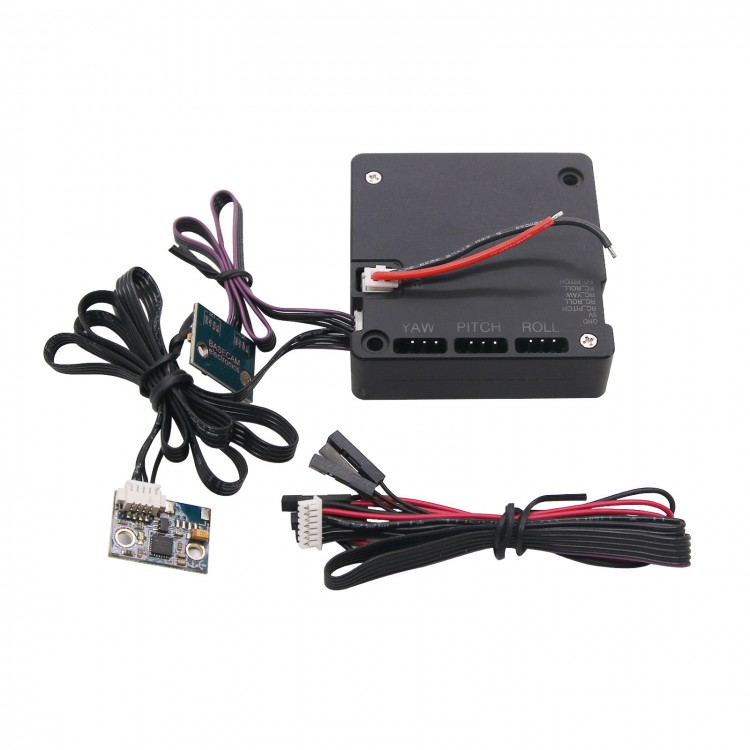

NEW ArmBGC 4.5-BT 32-bit (Alexmos) Gimbal Controller 3 Axis Brushless Gimbal Stabilizer

Availability: In stock, usually dispatched in 1 business day

  • Price:$89.90
  • Price in reward points: 899 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $88.10 $86.30 $83.61 $80.01 Contact US
Quantity:

NEW ArmBGC 4.5-BT 32-bit (Alexmos) Gimbal Controller 3 Axis Brushless Gimbal Stabilizer

Basic functions of the controller:
- 32-bit MCU — ARM Cortex M4. Effectively calculates the complex tasks for 3-axes stabilization.
- Allows camera control with the RC or analog joystick.
- Use several switchable profiles for different modes of operation
- Supports variety of RC protocols: PWM, Sum-PPM, spektrum and s-bus.
- Battery voltage monitoring, compensating voltage drop in the PID-regulator.
- Low battery alarm (output to 5V active buzzer).
- Increased number of inputs for controlling signals + 3 additional reserved input/output AUX1-AUX3.
- Can supply up to 1A current for external devices on the 5V power line.
- Dedicated UART-socket to connect optional Bluetooth module
- Reverse-polarity protection, overheat and overcurrent protection
- USB interface for the PC connection, to configure, control and upgrade firmware.
- Graphical user interface to manage the settings. Windows / OS X / Linux versions.
- Control through the Serial-protocol using dedicated API.
- Improved attitude estimation algorythms
- Optional second IMU, that will increase the short-term precision of the stabilization 10x-30x times and  will make stable work in any frame position.

Specifications:
- Size of the board:     50×50 mm
- Distance between the mounting holes:     45 mm
- Diameter of the mounting holes:     3 mm
- Power supply voltage:     8–25 V
- Maximum motor current:     1,5 A
- 5V output current to power external devices:     up to 1 A
