Nokia 5110 LCD (Red Screen) Liquid Crystal Module

Nokia 5110 LCD (Red Screen) Liquid Crystal Module

Description:

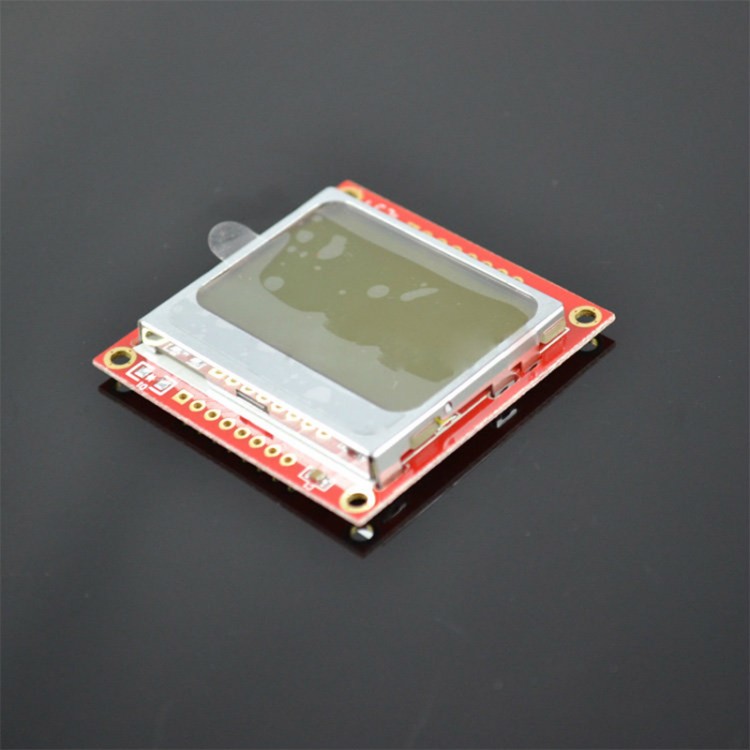

- Nokia 5110 liquid crystal screen is the sencond hand Nokia disassemble screen, the liquid crystal screens are all of good quality
- The baseboard is designed by our station, location holes at 4 angles, provide two upper and down rows of connection terminal arranged as follows:
- RST ——reset
- CE  —— Chip Selection
- DC  —— Select data/instruction
- DIN —— Serial Data Lines
- CLK —— Serial Clock Line
- VCC —— power supply input (3.3v or 5v)                                         |
- BL  ——  backlight control end
- GND —— ground electrode
- The interface is serial SPI interface
