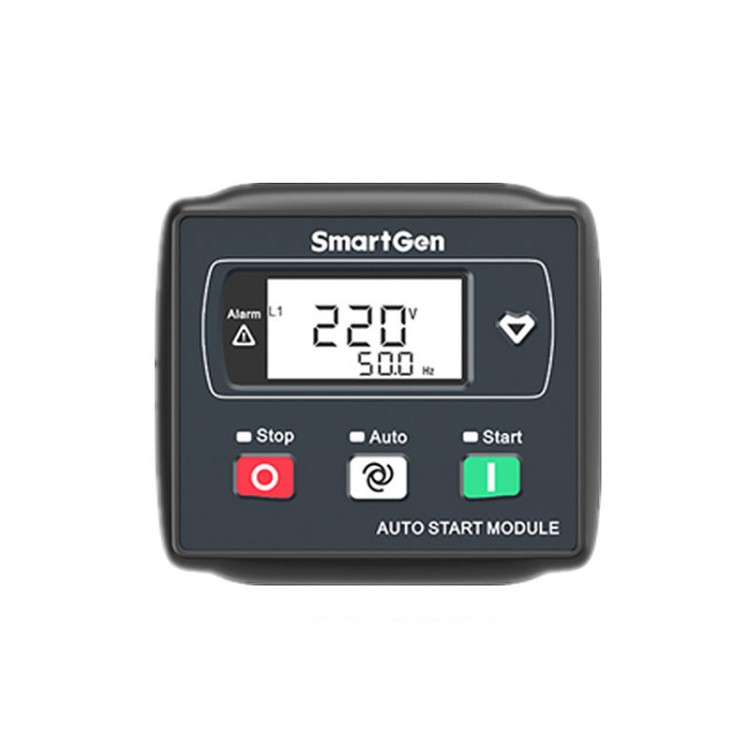

Genset Controller Generator Control Automatic Start Module China Made Replacement for HGM1790N

Availability: In stock, usually dispatched in 1 business day

  • Price:$67.79
  • Price in reward points: 678 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $66.43 $65.08 $63.04 $60.33 Contact US
Quantity:

You might like

  • $0.00
  • $0.00
  • $0.00

Genset Controller Generator Control Automatic Start Module China Made Replacement for HGM1790N

Description:

The generator set controller is suitable for stand-alone automation and monitoring (can also be used for water pump sets). The controller can realize the manual start/stop of the unit, and can also automatically start/stop the generator through the remote start signal. It monitors and protects the unit by collecting and analyzing data such as power generation voltage, current, water temperature, and oil pressure. At the same time, it can also indicate faults and facilitate quick maintenance. The controller adopts a pattern-type liquid crystal display, which is clear and intuitive to operate via buttons. Users can realize the parameter threshold and delay adjustment functions through the front panel or the USB interface (communication with the PC software).

Features:
1. Pattern LCD display (with backlight), LED light indication, and touch button operation
2. The screen protector made of hard screen acrylic
3. Silicone panel and buttons enable strong ability to adapt to high and low temperature environment
4. With wide power supply range of DC 8~35V, it can adapt to different starting battery voltage environment
5. Collect and display power generation single-phase voltage, current, frequency, power, load percentage parameters
6. Collect various parameters of engine
7. Unit fault protection and display function
8. The control has 3 working modes: manual, automatic, and shutdown
9. A variety of temperature, pressure and oil level sensors can be used directly, and parameters can be customized; temperature and pressure sensors can be used in parallel with temperature and pressure alarms respectively, providing an analog quantity while adding a level of protection
10. Various starting success conditions (speed, oil pressure, power generation frequency) can be selected
11. One programmable input port can be set to switch input or liquid level sensor
12. Two relay fixed output ports (fuel output and start output)
13. Three programmable relay output ports can set functions such as public alarm output, preheat output or idle speed control output
14. Parameter setting function: allow users to change and set their parameters, which will not be lost when the system is powered off. Most of the parameters of the controller can be adjusted via its front panel, and all parameters can be adjusted through a USB interface (Type- Type B) by using a PC
15. All parameters are digitally adjusted, which improves the reliability and stability of the whole machine
16. Modular structure design, flame retardant ABS shell, pluggable terminals, embedded installation, compact structure and convenient installation

Specifications:
- Display: LCD (with backlight)
- Operation panel: Silicone
- Controller language: English
- Switch input port: 1
- Relay output port: 5
- Analog input port: 1
- AC system: 1P2W
- AC voltage range: (15~360)V(ph-N)
- AC frequency: 50/60Hz
- Programming interface: USB
- DC working power supply range: DC 8-35V
- Product dimensions: 95 x 86 x 46.5mm/3.7 x 3.4 x 1.8"
- Mounting dimensions: 78 x 66mm/3.1 x 2.6"
- Working temperature: -30℃ to 80℃

Package Included:
- 1 x Generator Controller

Note:
- Battery is not included.
