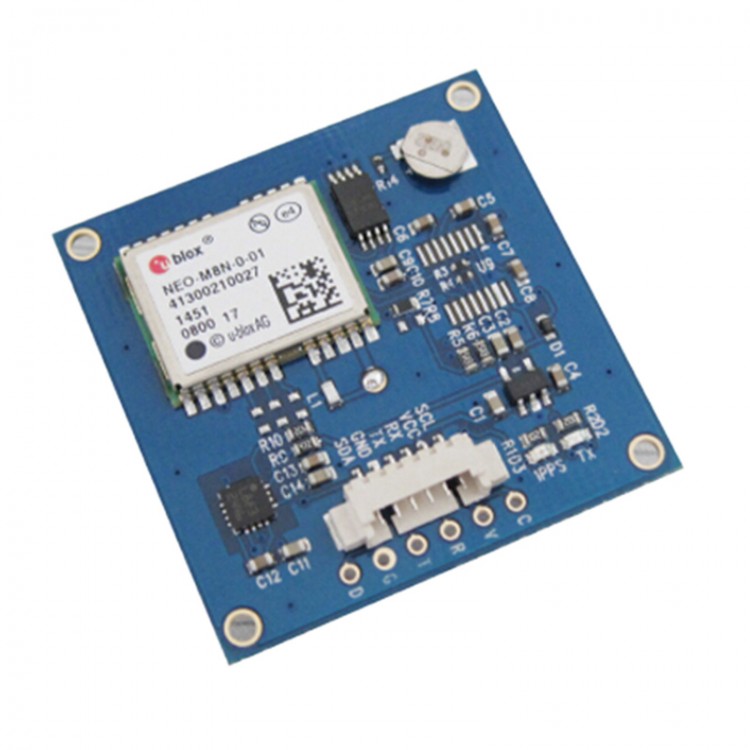

Original UBLOX NEO-M8N HMC5883L Compass GPS Module For Pixhawk PX4 APM
Description:
- With Flash, can safe parameter, change baud, output frequency and protocal.
- Power supply : DC 2.8V-6V, typical 3.3V or 5V
- Power consumption: 50mA@5V
- Receive format: GPS, GLONASS, Galileo, BeiDou. QZSS and SBAS
- Receive channel: 72 Channel
- Sensitivity: Tracking -167dBm, Acquisition: -148dBm
- Locating time: Cold start: 26s on average. Warm start: 25S on average. Hot start: 3S on average.
- Accuracy: 2m (open area)
- Output frequency: 1HZ-10HZ, Default 1HZ
- Speed accuracy: 0.1m/s(without aid)
- Acceleration tracking accuracy: 0.1/m2 (without aid)
- Max height: 18000m
- Max speed: 515m/s
- Max acceleration: 4G
- UART communicate: TXDA &RXDA
- Support rate: 4800bps to 115200bps, default 9600dps
- Working temperature: -40~85 Celsius
- Storage temperature: -40~85 Celsius
- Size: 35*35*10mm
- Weight: 10g
- Interface: 1.25mm 6 pin base connectors
Feature:
- Concurrent reception of GPS/QZSS, GLONASS, BeiDou
- Industry leading –167 dBm navigation sensitivity
- Product variants to meet performance and cost requirement
- Combines low power consumption and high sensitivity
- Simple integration with u-blox wireless modules
- Backward compatible with NEO-7, NEO-6 and NEO-5 families
Package included:
1 x Original Ublox NEO-M8N GPS module
