APM PRO New Mini APM Flight Control Opensource Hardware with Neo-7N GPS for Multicopter Aircraft

APM PRO New Mini APM Flight Control Opensource Hardware with Neo-7N GPS for Multicopter Aircraft

Description:
- Mini APM PRO, the new generation of APM
- Size: 60*38*14mm
- All interfaces are moved to the two sides, the middle part is no longer used for wiring
- Standard 2.54 dupont plug

Improvements made on the basis of original 2.6
- 3.3V LDO is easy to be burnt down, so it is changed to the imported large current LDO, support continously output 500MA high performance power supply
- Two diodes are changed to Pixhawk Pix PMEG2005 super low differential voltage dynatron
- 22UF/16V capacity was added into 5V module to ensure stable power of main controller (2560 part).
- All interfaces are designed at the two sides
- Two individual RGB colorful light
- Compression version PWM input, it only needs 4 servo cables to realilze 8 channels PWM

U-blox Neo-7N GPS Specification:
- With shell, the cables are fixed and cannot be moved, can connect with APM Pro
- Internal core of new version surpasses 6M, compare favourably with 6H
- Cold start positioning time is less than 40 seconds
- Warm start positioning time is less than 5 seconds
- Positioning accuracy is 2m
- NEO-7N is of high performance, quick research, high positioning precision, very rstable

Note: If it is used for QAV 250 mini quadcopter, you should add damper base for the flight control

User Manual Down: Click Here

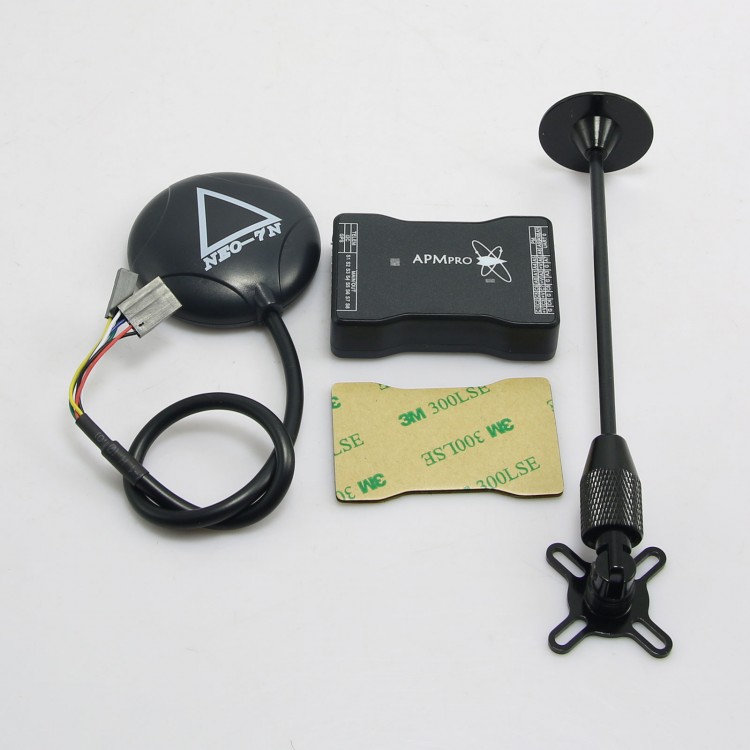

Package Include:
- APM PRO flight control x 1 (including shell)
- PWM dupont cable x 4
- 3M adhesive paste x 1
- Ublox Neo-7N GPS for APM Pro  x 1
