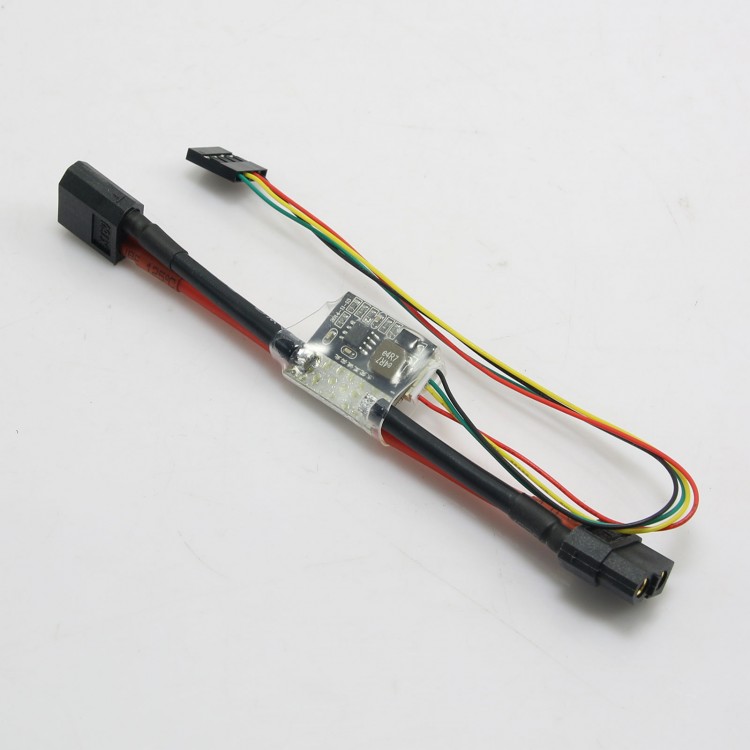

Power Supply Module 30V/ 90A Dupont Interface with 3A BEC Support 8S for Mini APM Pro Flight Controller

Power Supply Module 30V/90A Dupont Interface with 3A BEC Support 8S for Mini APM Pro Flight Controller

Description:
- PM function: used for detecting battery voltage and current, flight control board receives these two signals, calculating battery remaining power, and remaining flying time
- This module has BEC function, can output 5.3V DC, max 3A continuous current, supply stable power for flight control board
- The signal cable connector adopts Japan original connector, making the connection reliable
- The Mini APM Pro Power Module is a simple way of providing your Mini APM Pro with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.

Specifications:
- Max input voltage: 28V
- Max current sensing: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 3A max
- 6-pos DF13 cable plugs directly to Mini APM Pro 'PM' connector

Comparision to old version:
- Smaller sizer, lighter weight, integrated inductance, more durable
- Adding 47UF, tantalum capacitor of large capacity, guarantee more stable power. The stable power provides stable work for flight control

Note: this is 2.54 dupont interface, only suitable for Mini APM Pro Flight Controller

Package Include:
- 1pcs x Power Supply Module 30V/ 90A Dupont Interface for Mini APM Pro Flight Controller
