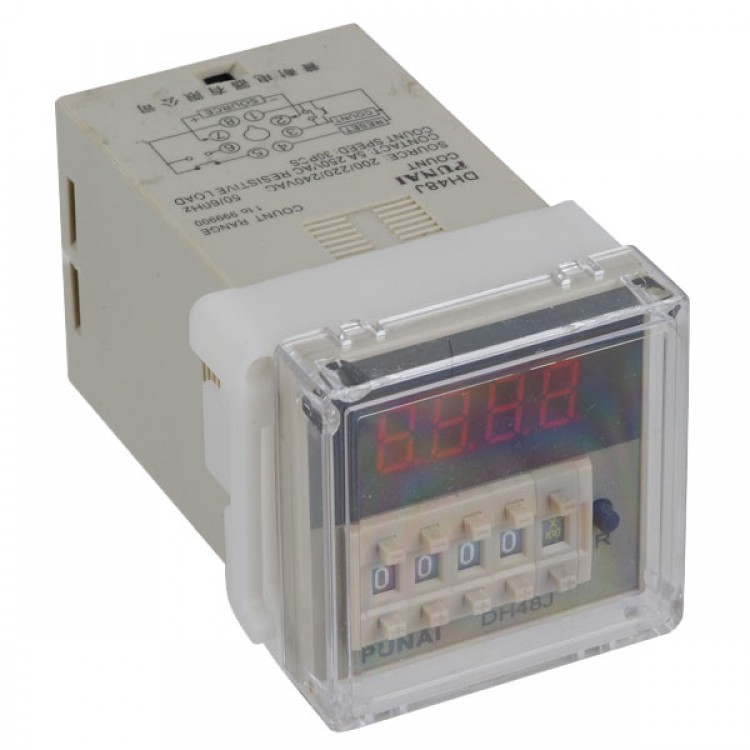

Punai DH48J AC 220V Digital Counter Relay Up/Down 1-9999 x1 x10 x100 8 Pin
Description:
- Reset model: pushbutton to reset zero and connect terminal to short-circuit reset.
- According to the preset value to open or close the circuit.
- Suitable to be used in automatic control system as counting control.
Specification:
Product Name | Counter Relay + Socket |
Model Number | DH48J |
Digit Display | 4 |
Resistive | 3A |
Rated Voltage | AC 220V 50/60Hz |
Contact Capacity | DC 30V 5A ; AC 250V 5A |
Counting Mode | Plus Counting, Non-Keeping |
Counting Range | 1~9999,10~99990,100~999900 |
Working Temperature | -10°C~+50°C |
Installation Model | panel Mounting |
Casing Material | Plastic |
Color | As Picture Shown |
Total Size(Included Socket) | 10 x 5.5 x 4.5cm / 3.9" x 2.2" x 1.8"(Max. L*W*T) |
Net Weight | 211g |
Package Content | 1 x Counter Relay |
