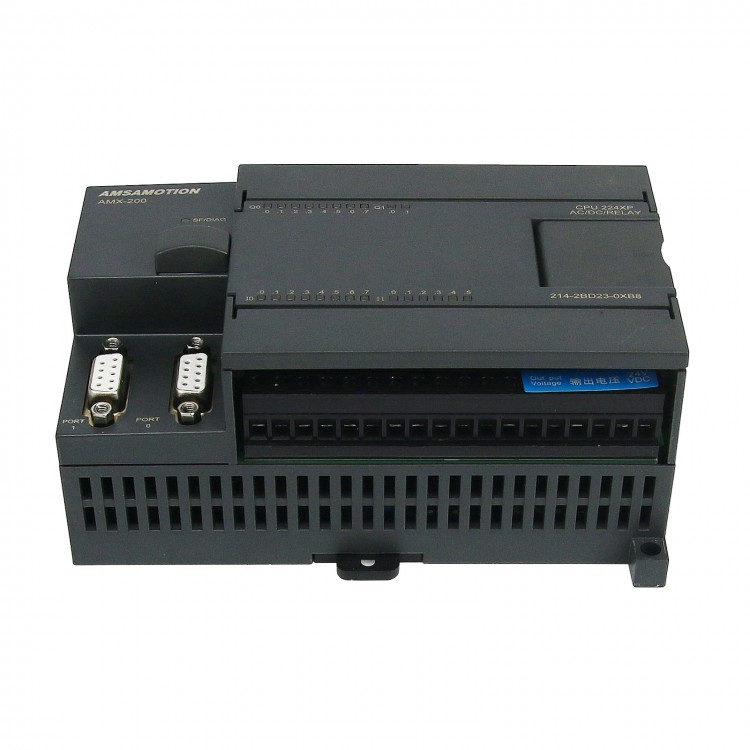

PLC S7-200 CPU224XP Logic Controller Programmable Controller for 214-2BD23-0XB8 220V Relay Output
Description:

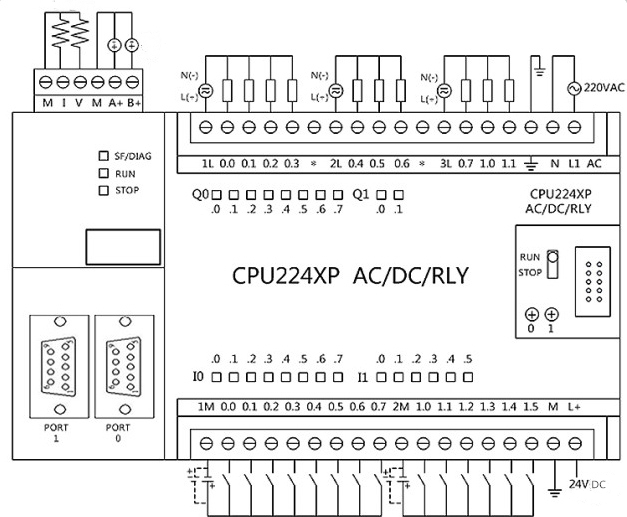

Digital input 14*24V DC, digital output 10*relay (5-30V DC or 5-250V AC), analog input 2 output 1 output, 2 RS485 communication ports, 7 expansion modules.
Specification:
Product name: S7-200CN Relay Output CPU224XPCN AC/DC/RELAY
Power supply: 220V AC power supply
Power consumption: 7W
Rated power supply voltage: 85-265V AC voltage
Program memory: 36KB
Data storage: 20KB
Number of expansion modules: 1-7
Digital value expansion: MAX 256DI/DO
Analog quantity expansion: MAX 32A1/16AQ
Data storage time: memory flash, permanent
Total number of counters: 256
Total number of timers: 256
Data space: 10KB
Communication port (DB9): 2*PPI communication ports, RS485
Baud rate: 9.6, 19.2, 1875kbps
Digital value input: 14 channel input
Digital value output: 10 channel output
Analog quantity input: 2
Analog quantity output point: 1
Access way: NPN/PNP
Output type: Relay (RLY)
Digital output rated current per point: 2A
Maximum cable length: 500m (shielded)
Pulse capture input: 14
High-speed counter: 6 × 30KHz
Size: 140*80*62mm
Weight: 440g
Package List:
1 x Logic Controller
