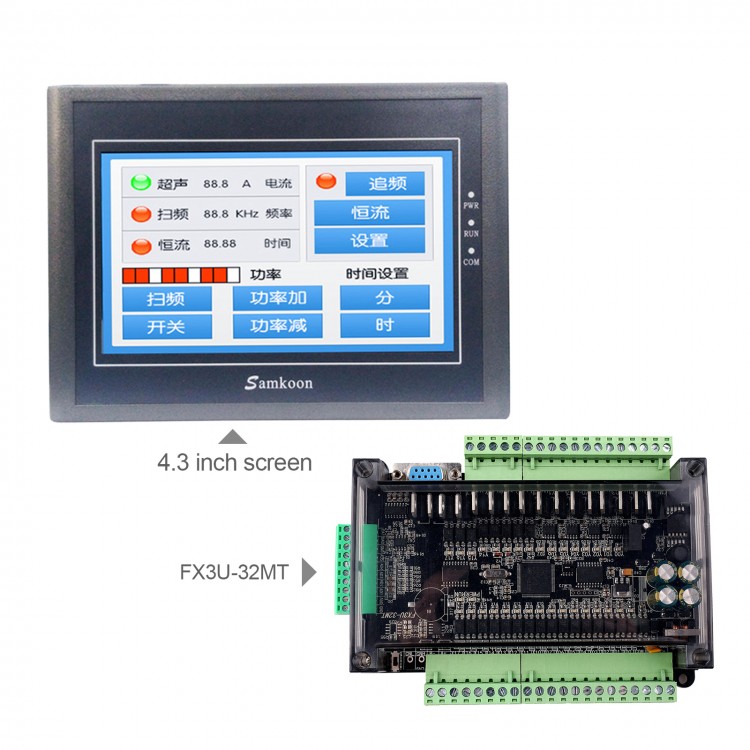

For Samkoon EA-043A 4.3-Inch HMI Touch Screen 480*272 + FX3U-32MT PLC Board 8-Way 100K Pulse

For Samkoon EA-043A 4.3-Inch HMI Touch Screen 480*272 + FX3U-32MT PLC Board 8-Way 100K Pulse

Package Included:
- 1 x HMI Touch Screen
- 1 x PLC Board

EA-043A:
Advantages:
- Display Size: 4.3" (16:9)

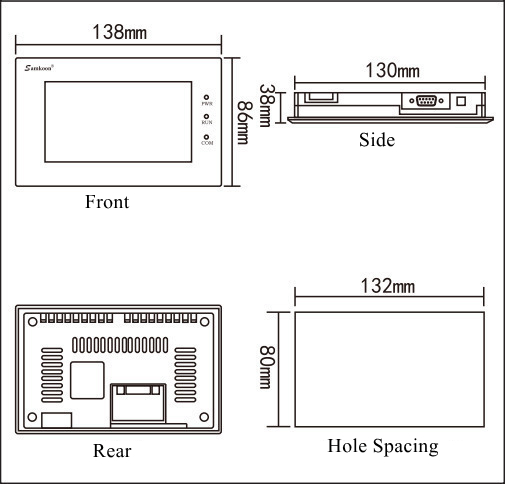

- Dimensions: 138*86*38 mm
- Hole Spacing: 132*80 mm
- Resolution: 480*272
- Port For U Disk: No

Features:
High-speed Communication:
1. Built-in USB communication ports integrate communication modes of RS232/422/485:
2. Support free port communication
3. Abundant PLC protocols

High Performance:
1. Large FLASH capacity; USB disk storage;
2. Large capacity of data storage;
3. Data saving when power failure.

User-defined Boot Logo:
1. Boot Logo screen can be customized and be upgraded to HMI through software.
Collection of Recipe Data and Historical Data:
1. Support multiple sets of recipes with sub recipes;
2. Support collection of discrete data.

Animation Display:
1. Realize dynamic effects via functions of Picture Display or GIF display

Macros:
1. C language script;
2. Custom function libraries;
3. Free port communication protocols;
4. C standard Mathematical Functions;
5. Various modes of execution

Quick Boot:
1. Two seconds for screen on
2. Five seconds for overall start.

Configuration software:
1. Easy to operate;
2. Abundant functions.

Simulation:
1. Online simulation and offline simulation

USB Driver:
1. Support automatic installation;
2. High USB downloading speed;
3. High reliability and strong robust.

Data security:
1. Neoteric password mechanism ensures operations safer and more reliable.
Picture Library:
1. Provide rich and broad-spectrum vector library
2. Support for BMP, JPG and other image formats;
3. Provide standard vector frames.

Specifications:
Hardware Structure:
- Appearance size: 138 × 86 × 38mm
- Hole spacing: 132 × 80 mm
- Net weight: 0.2Kg

Display:
- Model: EA-043A
- Display size: 4.3 "(length: width = 16:9)
- Resolution (pixels): 480 × 272
- Touch panel: resistive screen
- Display color: 260,000
- Backlight module: LED
- Contrast ratio: 400:1
- Brightness (cd/㎡): 400cd/㎡

Product Features/Certification:
- Memory: 128M FALSH + 64M DDR2
- CPU: ARM9 300MHz
- Withstand voltage test: 500V DC for 1 minute
- Static test: Level 2 ± 4kV
- FCC compatibility: Complies with FCC, Class A
- CE certification: Comply with EN55022 and EN55024 standards
- Protection level: IP65 (front panel)
- Shell material: engineering plastic ABS+PC

Power Supply/Interface:
- Power supply: DC24 (+/-15%)
- Power consumption: 3W
- Serial interface: COM: RS422/485/232
- USB download port: YES
- U disk port: NO
- SD card: NO
- Ethernet port: NO
- CAN: NO

Internet Connection:
- WiFi: NO
- 3G: NO
- Ethernet: NO

Surroundings:
- Working environment temperature: -10 to 65℃
- Working environment humidity: 10 ~ 90%RH
- Vibration resistance: 10 ~ 25Hz (XYZ direction 2G/30 minutes)

Programming Software:
- Programming software: For SATOOL



FX3U-32MT PLC:
Function Introduction:
- Use ladder diagram language to write application program, support for Mitsubishi GX-Developer, GX-WORK2.
- Support human-machine interface connection, the application is completely equivalent to that for Mitsubishi FX3U.
- Support ladder diagram programming, downloading, monitoring.
- The programming port is the port for downloading programs and communicating with the human-machine interface.
- This PLC uses an industrial-grade 32-bit MCU with strong anti-interference, and the operating speed is far beyond that for original Mitsubishi FX3U.
- Original password protection.
- The baud rate of this PLC is 38400.

Product Resource Description:
- The board has 16 inputs and 16 transistor outputs.
- Y0~Y7 transistors can output up to 100K pulses.
- Y0~Y16 can also be used as normal output. If Y0~Y7 is connected to a large load, an external freewheeling diode is required.
- 6AD input (3 channels 0~10V+3 channels 0~20mA), 2DA (2 channels 0~10V output).
- The board uses DC 24V power supply, do not input AC or 220V voltage.
- Board internal resource allocation.

Program & Performance:
- Input power: DC 24V
- Program steps: 8000 steps; 2 communication ports: 1 RS232 (DB9 serial communication port is FX3u protocol 38400, 7, E, 1; 1 RS485 port, 4 communication protocols can be set through D8120.
- Input point X component: X0-X17, DC24 input, low-level effective. X0-5 is the high-speed counting input port (default is 12K, 100KHZ is optional)
- Input point Y component: Y0-Y17 are transistor outputs, Y0~Y7 can output 8 channels of 100K pulse or 6 channels of PWM pulse signals. The maximum current is 3A. Y0-3 is a high-speed output port (up to 100K). The PWM period is 0-32767US. The maximum current of the high-speed port is 3A. The common end of the external load is connected to +24, and the other end is connected to the PLC output port Y.
- Analog input: 6 analog inputs, 12-bit precision. 3 0~10V+3 0~20mA, read by RD3A.
- Analog output: 2 channels of analog output, 12-bit precision, output voltage: 0-10V. Output analog voltage uses WR3A command
- Intermediate relay M: M0-M3071, save range can be set when power-off
- Step point S: S0-1023, save range can be set S0-S1023
- 100Ms timer: T0-T199, accumulative power-down save T184-T199
- 10Ms timer: T200-T249, accumulative power-off save T246-T249
- 1Ms timer: T250-T383, of which T250-255 is cumulative
- 16-bit counter: C0-C199, save C100-199 when power off
- 32-bit counter: C200-C219, save C220-C234 when power off
- 32-bit high-speed counter: C235-255; C235-240 is a single-phase counter without multiplication; C241-240 is a single-phase counter with 2 multiplication;
- Register D: C247-249 are two-phase counters, no frequency multiplication; C250-252 are two-phase counters, 2 times frequency; C253-255 are two-phase counters, 4 times frequency. D0-D7999, the storage range can be set to D0-7999 after power-off.
- Indirect addressing pointer V, Z: V0-7, Z0-7
- P subroutine jump number: P0-63
- I interrupt: X0-5 external interrupt. Timer interrupt (1MS as a unit). The counter is interrupted.
Special M components: M8000 is normally closed when running, M8002 is power-on pulse, M8011 is 10Ms pulse, M8012 is 100Ms pulse, M8013 is 1s pulse, M8014 is minute pulse.

Support Instruction Set:
- 27 basic sequence commands
- 4 step ladder diagram instructions
