Samkoon EA-043A 4.3" HMI Touch Screen w/ FX3U-56MR PLC Control Board High-Speed PLC Controller

Availability: In stock, usually dispatched in 1 business day

  • Price:$136.60
  • Price in reward points: 1366 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $133.87 $131.14 $127.04 $121.57 Contact US
Quantity:

Samkoon EA-043A 4.3" HMI Touch Screen w/ FX3U-56MR PLC Control Board High-Speed PLC Controller

Package Included:

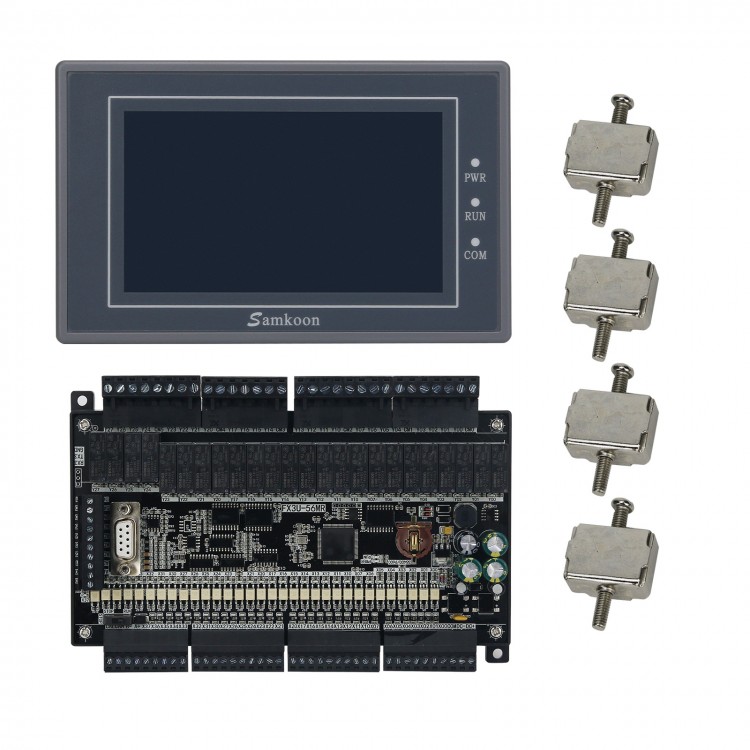

- 1 x EA-043A HMI Touch Screen
- 1 x FX3U-56MR PLC Controller

Note:
- Cables are not included.


EA-043A:
Hardware:
- Outline dimension: 138 x 86 x 38mm/5.4 x 3.4 x 1.5"
- Cut-out Size: 132 x 80mm/5.2 x 3.1"
- Net Weight: 0.2Kg

Display:
- Model: EA-043A
- Display Size: 4.3" (16:9)
- Resolution (Px): 480 x 272
- Touch Screen: Four-wire screen
- Color: 262,114
- Backlight: LED
- Contrast Ratio: 400:1
- Luminance: 400cd/㎡

Properties/Certification:
- Memory: 128M FLASH + 32M DDR2
- CPU: ARM9 200MHz
- Electric Strength Test: 500V DC, 1min
- ESD: Level2 ± 4kV
- FCC: FCC, Class A
- CE: EN55022 & EN55024
- Protection Grade: IP65 (Front panel)
- Housing Material: ABS + PC

- Power/Port:
- Power Supply: DC24V(+/-15%)
- Power Consumption: 3W
- Series Port: COM: RS232/422/485
- USB-A: YES
- USB-B: NO
- Ethernet Port: NO

Environment:
- Operation Temperature: -20 to 65℃
- Operation Humidity: 10~90%RH
- Shockproof: 10~25Hz (XYZ 2G/30min)

Software:
- PC Software: SATOOL

FX3U-56MR:
Function Description:
- Use ladder diagram language to write application programs, support for Mitsubishi GX-Develoer, GX-WORK2
- Support man-machine interface connection, the application is completely equivalent to that for Mitsubishi FX3U
- Support ladder diagram programming, download, monitoring
- The programming port is the port for program upload, download and communication with the man-machine interface
- This PLC uses an industrial-grade 32-bit MCU with strong anti-interference, and the operating speed is far beyond the original ones for Mitsubishi FX3U
- Original password protection
- The baud rate of this PLC transmission is 38400
- Support 27 basic sequence control instructions, 4 step ladder instructions

Product Resource Description:
- 32-point input on the board, 24 relay outputs
- X0-X5 is high-speed input, can be connected to 3pcs AB encoder, default 12K, optional 100K
- 6 analog quantity inputs (default 3ch 0-10V, 3ch 0-20MA), 2ch 0-10V analog quantity output
- Power-down retention, can be set freely, optional CAN communication expansion
- The board uses DC 24V power supply, do not input AC or 220V
- Internal resource allocation on the board

Program & Performance:
- Input power: DC24V
- Program steps: 8000 steps; 2pcs communication port: 1 RS232 (DB9 serial communication port is FX3u protocol 38400, 7, E, 1; 1 RS485 (optional) (communication protocol can be set to D8120), optional CAN communication
- Input point X component: X0-X27, DC24 input, active low. X0-5 is the high-speed counting input port (12KHZ), optional 100KHZ
- Input point Y element: Y0-Y27 are relay outputs, and the relay output current is 5A. 4 relays and 1 common terminal, a total of 6 common terminals
- Analog input: 6 analog inputs, 12-bit precision, (3ch voltage: 0-10V, 3ch current: 0-20MA). RD3A instruction for reading analog
- Analog output: 2ch analog output, 12-bit precision, output voltage: 0-10V. WR3A instruction for output analog voltage
- Intermediate relay M: M0-M3071, the power-off storage range can be set to M0-M1023, the default is M500-M1023
- Step point S: S0-1023, the power-off save range can be set to S0-S1023, the default is S500-S9999
- 100Ms timer: T0-T199, accumulative power-down save T184-T199
- 10Ms timer: T200-T249, accumulative power-down save T246-T249
- 1Ms timer: T250-T383, of which T250-255 is cumulative
- 16-bit counter: C0-C199, save C100-199 when power off
- 32-bit counter: C200-C219, save when power off C220-C234
- 32-bit high-speed counter: C235-255; C235-240 is a single-phase counter, no frequency multiplication; C241-240 is a single-phase counter, 2 times frequency; C247-249 is a two-phase counter, no frequency multiplication ; C250-252 is a two-phase counter, 2 times Frequency; C253-255 is a two-phase counter, 4 times the frequency
- Register D: D0-D7999, the saving range can be set D0-7999
- Indirect addressing pointer V, Z: V0-7, Z0-7
- P subroutine jump number: P0-63
- I interrupt: X0-5 external interrupt. Timer interrupt (1MS as a unit). Counter interrupt
- Special M components: M8000 is normally closed when running, M8002 is power-on pulse, M8011 is 10Ms pulse, M8012 is 100Ms pulse, M8013 is 1s pulse, M8014 is minute pulse
