Rabbit Flight Controller Quad Multi-copter
  • Rabbit Flight Controller Quad Multi-copter
  • Rabbit Flight Controller Quad Multi-copter

  • SKU:20026
    (1 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: Out of Stock     Reward Points: 7
  • Price:$71.99
  • Price in reward points: 720
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $70.55 $69.11 $66.95 $64.07 Contact US

Rabbit Flight Controller Quad Multi-copter

Rabbit Flight Controller Quad Multi-copter

Rabbit Flight Controller For Quadcopter Multicopter
With founction: Auto Stability,3D Stunt, Height Lock, Head Lock, Care Free(CF),PTZ Stability,Autolanding With the GPS model for founction: Go home ,Position Hold.

Description:

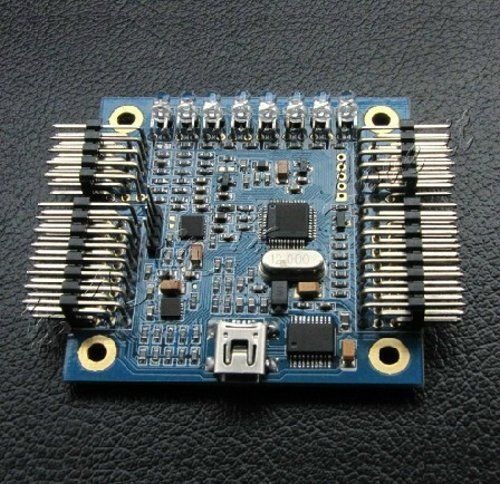

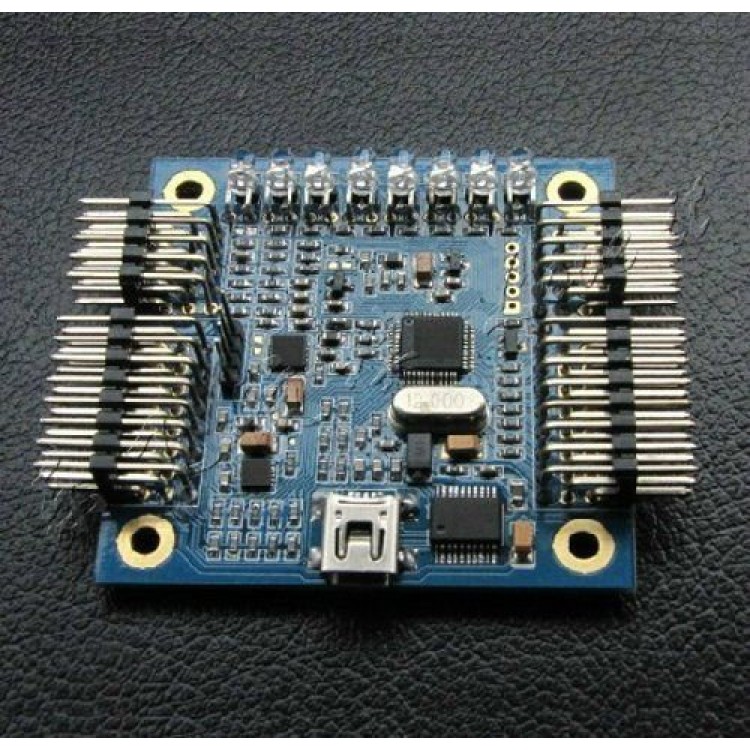

- Rabbit Flight Controller adopts 32 Digits ARM CPU and latest new sensor with Independent research and development software, ensuring stable and reliable flight in a simple setting surface.
- The board contains high precision tri-axis gyroscope and tri-axis accelerometer with compact
structure and size.
- With Autostability - 3D stunt function without any additional board.
-  Multi-function:Can be connected with ultrasonic, Barometer,tri-axis magnetic sensor,GPS model,and to realize the founction such as Height Lock,Head Lock, CareFree(CF),Autolanding.Go home,Position hold etc.
- 8 Channel PWM remote and 8 Channel output for motor/servo
- Support PTZ Autostability.Output mode can be set by user. 7. With USB interface, Upgrades PC and adjusts parameters without Expansion Board. 8. With PC tools to upgrade the Fireware .

Features:

- 32 digits 50 MHZ CPU
- Support 140g mini quadcopter.
- With high precision tri-axis gyroscope and tri-axis accelerometer with compact structure and size
- 8 CH recieve channel, can set Auxiliary switch channels and PTZ control channel
- 8 channel 16 digits output channel,can set 50Hz~500Hz analog/didital servo or non- standard ESC singal.
- Supports mix-control: GIM-BAL,BI,TRI,QUADP,QUADX,Y4,Y6,HEX6,HEX6X,OCTOX8,OCTOFLATP,OCTOFLATX,FLYING_WING,FIEXD WIND mode and so on. can be add other mode according to users requirement.
- Provides PC tools to upgrade the fireware , convienent for users to set parameter,and download the new fireware.
- Supports quad-axis, hex-axis,eight-axis quadcopter( can not connect to PTZ as all the pins used to connect motor)
- 8 LED singal to indicate various mode, convinient to set parameters anytime even for a tiny adjust-ment. Can connect color LED strip, makes magnificant and unique night flight.
- Supports 4S battery Voltage test, avoid overdischarge.
- Provide alarm port,facilitate users to set low power alarm, the warning tone will be more pressing as the power lower and lower.
- With ultrasonic port, makes fixed hight function range 2 meters, perfect performance especially for the ground grading.
- With equipment selfcheck function, make sure safty flight . with sound and light signal in the self-check procedures.
- With high precision tri-axis gyroscope and tri-axis accelerometer,facilitate users to add functions such as Automatic landing and Fixed-point return.(just buy additional board and download online upgrade software is ok)
- With Independent research and development software, can improve or add new functions as user's requirements.
- Optinal output mode: Default ESC output 330MHZ.47HZ servo output, Servo/ESC output op-tion:50Hz(20ms);100Hz(10ms);270Hz(3.6ms);330Hz(3ms);500Hz(2ms Special ESC);2KHz PWM(Special ESC)
- With the founction:Auto Stability, 3D stunt,Height Lock,Head Lock, PTZ Stability, Autolanding, CareFree(CF)
- With the GPS model ,It can realize the founction: Go home, Position hold etc.

Specification:

Alarm Voltage setting: 3.4V~3.7V Gyroscope: +-2000dps,16 digits resolution ratio, responding time:1000HZ
Accelerometer: -8G,14 digits resolution ratio, responding time:800Hz Input Voltage: 4~6V (provides by ESC)
Board Szize: 5.5mmX5.5mm Weight: 20g
Working Temperature: -40~+85

Content:

- Rabbit Flight Controller Quad Multi-copter w/ Fixed Hight Direction Care Free CF x 1
- It is not include BARO/MAG
