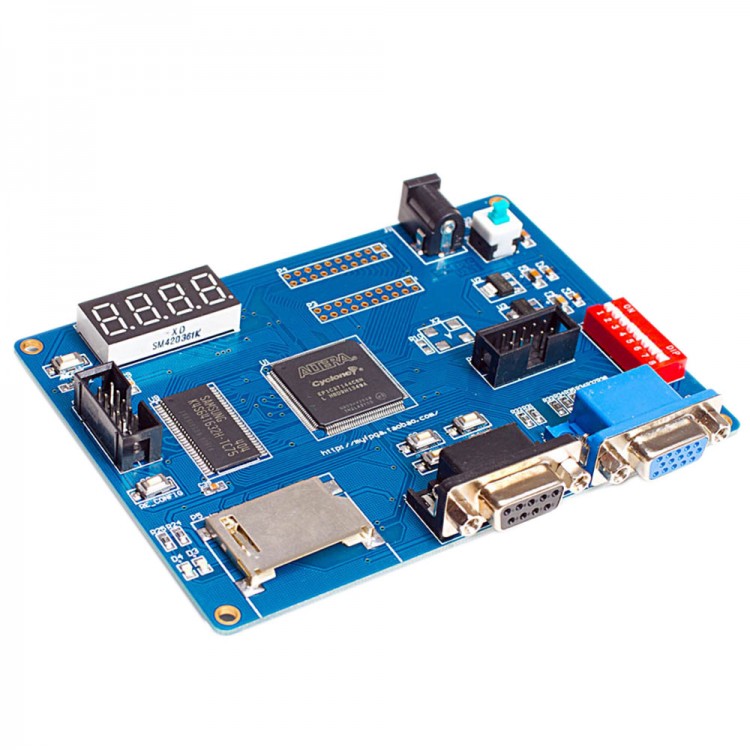

• SF-EP1C FPGA Develop Board Learning Board Cyclone altera

SF-EP1C FPGA Develop Board Learning Board Cyclone altera

Availability: In stock, usually dispatched in 1 business day

  • Price:$33.79
  • Price in reward points: 338 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $33.11 $32.44 $31.42 $30.07 Contact US
Quantity:

SF-EP1C FPGA Develop Board Learning Board Cyclone altera

Features:

- FPGA: Altera EP1C3T144C8N
- SDRAM: 4M*16Bits K4S641632H-TC75
- Chip: 1Mbits SPI FLASH M25P10
- UART: MAX3232CSE
- VGA: 8 Bits=256
- Power supply: 5V/ 1A power supply
- Crystal oscillator: 25MHz
- Digital tube: 4 bits
- Parallel connection convert chip: SN74HC595D*2
- Indication light: 2PCS LED
- Press button: 1PCS reset button, 1PCS reconfiguration, 4PCS independent press button
- DIP swtich: 8 bits
- Debug download: standard JTAG debug interface, AS download interface
- Expansion interface: 2PCS 2*10 lead out interface
- SD card slot: 1pcs
