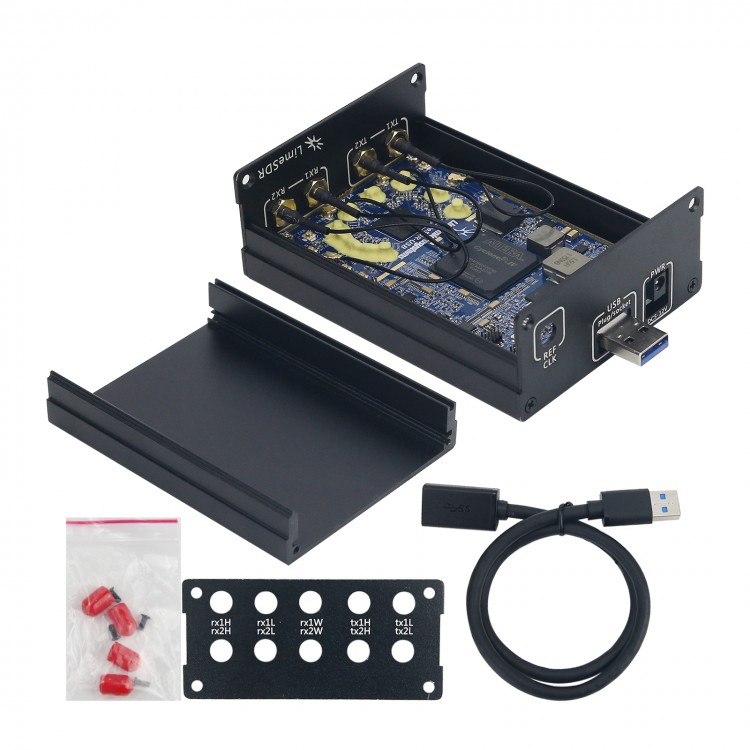

Open Source SDR Radio Platform Unassembled SDR Radio Board For LimeSDR + Shell + USB3.0 Data Cable
Description:
It is a low-cost, open-source, apps-enabled (more on that later) software defined radio (SDR) platform. It can be used to support just about any type of wireless communication standard. It can send and receive UMTS, LTE, GSM, LoRa, Bluetooth, Zigbee, RFID, and Digital Broadcasting, to name but a few.
While most SDRs have remained in the domain of RF and protocol experts, it is usable by anyone familiar with the idea of an app store – it's the first SDR to integrate with system for Snappy Ubuntu Core. This means you can easily download new apps for LimeSDR from developers around the world. If you're a developer yourself, you can share and/or sell your apps for LimeSDR through system for Snappy Ubuntu Core as well.
The platform for LimeSDR gives system developers, inventors, and even students an intelligent and flexible device for manipulating wireless signals, so they can learn, experiment, and develop products and applications.
From Radio Astronomy to Personal Telcos:
Here are just some of the applications that are possible with this product:
- Radio astronomy
- RADAR
- 2G to 4G cellular base station
- Media streaming
- IoT gateway
- HAM radio
- Wireless keyboard and mice emulation and detection
- Tire pressure monitoring systems
- Aviation transponders
- Utility meters
- Drone command and control
- Test and measurement
- And more
Features & Specifications:
- RF Transceiver: For Lime Microsystems LMS7002M MIMO FPRF
- FPGA: For Altera Cyclone IV EP4CE40F23 – also compatible with EP4CE30F23
- Memory: 256M Bytes DDR2 SDRAM
- USB 3.0 controller: For Cypress USB 3.0 CYUSB3014-BZXC
- Oscillator: For Rakon RPT7050A at 30.72MHz
- Continuous frequency range: 100 kHz-3.8 GHz
- Bandwidth: 61.44 MHz
- RF connection: 10 U.FL connectors (6 RX, 4 TX)
- Power Output (CW): up to 10 dBm
- Multiplexing: 2x2 MIMO
- Power: micro USB connector or optional external power supply
- Status indicators: programmable LEDs
- Dimensions: 100 x 60mm/3.9 x 2.4"
Package Included:
- 1 x Set of SDR
Note:
- Assembling is needed.
