100KHz-3.8GHz SDR Transceiver Radio Unassembled w/ LimeSDR Development Board Shell Antennas Cables

Availability: Out Of Stock

  • Price:$915.14
  • Price in reward points: 9151 Reward Points: 92
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $896.84 $878.53 $851.08 $814.47 Contact US
Quantity:
100KHz-3.8GHz SDR Transceiver Radio Unassembled w/ LimeSDR Development Board Shell Antennas Cables

Description:

LimeSDR is based on next-generation field-programmable RF transceiver technology, which combines FPGA and microcontroller chipsets. They are connected to the computer via USB 3.0 with a Type A connector. LimeSDR then provides wireless data, and the CPU provides the computing power needed to process the input signals and generates the data that LimeSDR transmits to all other devices.

Features:
- Affordable Price: LimeSDR is a cost-effective software radio device
- Complete Open Source: It supports software radio platforms for present software. It can be used in any communications systems including LTE, GSM, LoRa, Bluetooth, Zigbee & RFID
- Powerful Software Ecosystem: LimeSDR is popular with hordes of users. For ordinary uses, users can download what they need in Ubuntu software center. Users can download software applications for the LimeSDR platform in the Software Center for Ubuntu. For research purposes, you can share self-developed LimeSDR software to Software Center for Ubuntu with netizens
- Helpful Research Assistant: LimeSDR enables wireless signal process and operation, which facilitates scientific research and experiments, and product development

Technical Parameters:
- Bandwidth: 61.44MHz
- Frequency Range: 100KHz-3.8GHz
- RF Connector: 4 TX + 6 RX Antenna Ports
- Memory: 256Mbytes DDR2 SDRRAM
- Multiple-Input Multiple-Output: 2*2MIMO
- FPGA: IV EP4CE40F23
- Oscillator: For Rakon RPT7050A at 30.72MHz
- USB3.0 Controller: CYUSB3014-BZXC
- Output Power: <10dbm
- RF Transceiver: LMS7002M FPRF
- Power Supply Port: Micro USB or PCle
- Status Indicator: Programmable LEDs
- Size: 100 x 60mm/3.9 x 2.4"

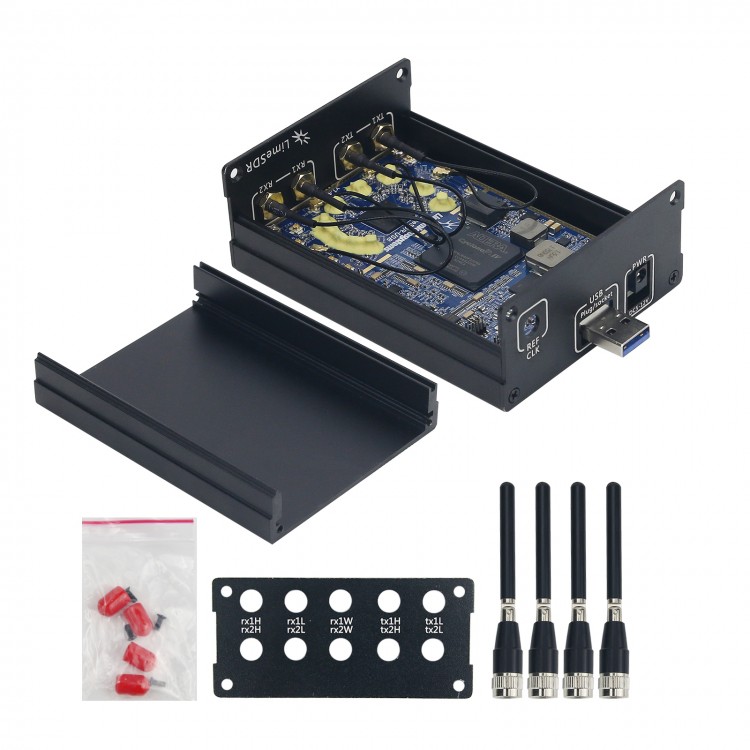

Package Included:
- 1 x LimeSDR Development Board
- 1 x Set of Aluminum Alloy Case
- 1 x Bag of Accessories
- 4 x Antennas
- 4 x Flexible Cables

Note:
- Assembling is needed.
