1MHz-6GHz HackRF One R9 V2.0.0 SDR Software Defined Radio Assembled Black Shell w/ LNA Antennas

Availability: In stock, usually dispatched in 1 business day

  • Price:$146.40
  • Price in reward points: 1464 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $143.47 $140.54 $136.15 $130.30 Contact US
Quantity:

1MHz-6GHz HackRF One R9 V2.0.0 SDR Software Defined Radio Assembled Black Shell w/ LNA Antennas

Upgrades of HackRF One R9:

MAX2837 is replaced by MAX2839. Si5351C is replaced by Si5351A with additional clock distribution. A series diode is added to the antenna port power supply.

Attention:
1. The latest firmware is supported, and the current firmware is Mayhem firmware V2.0.0 by default.
2. For certain functionality, like the world map, GPS simulator, and others, you need to prepare a PortaPack H2 and a FAT32 formatted MicroSD card over 1G.

HackRF One Description:
- HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
- Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

HackRF One Specifications:
- 1 MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- For GNU Radio, SDR#, and the like
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open source hardware
- HackRF One 1 MHz to 6 GHz SDR platform software defined radio development board

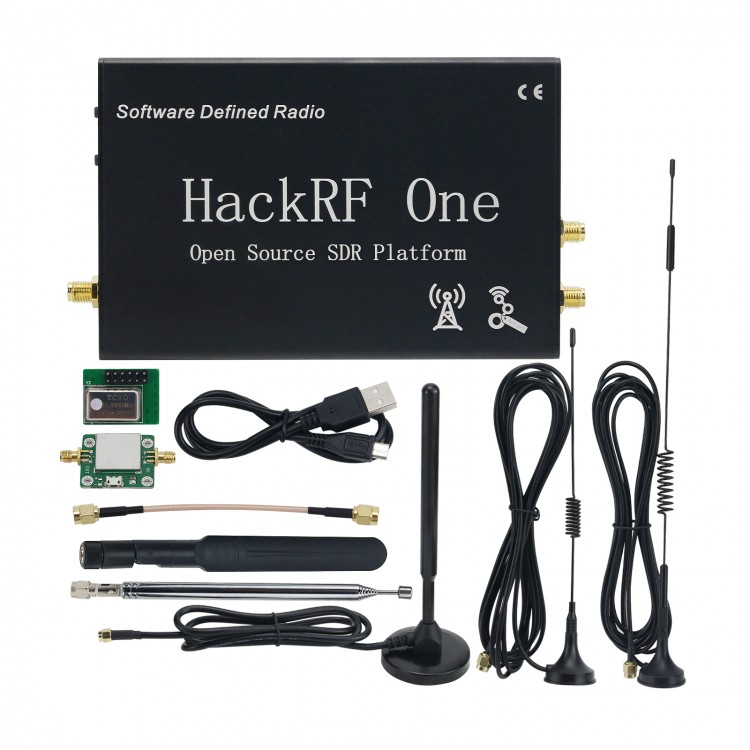

Package Included:
1. 20DB 50MHz-6GHz LNA x 1
2. SMA male-male cable x 1
3. LG USB cable x 1
4. 5DBi 40MHz-860MHz antenna x 1
5. TCXO module x 1
6. 8DBi 2.4G/5/5.8GHz antenna x 1
7. 40MHz-6GHz telescopic antenna x 1
8. 12DBi 700MHz-2700MHz antenna x 1
9. 35DBi 700MHz-2700MHz antenna x 1
10. HackRF One + shell x 1

Note:
- Portapack H2 is not included.
