SIM908 GSM-GRPS/GPS Mini Development Modules
  • SIM908 GSM-GRPS/GPS Mini Development Modules

  • SKU:14714
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 9
  • Price:$87.21
  • Price in reward points: 872
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $85.47 $83.72 $81.11 $77.62 Contact US

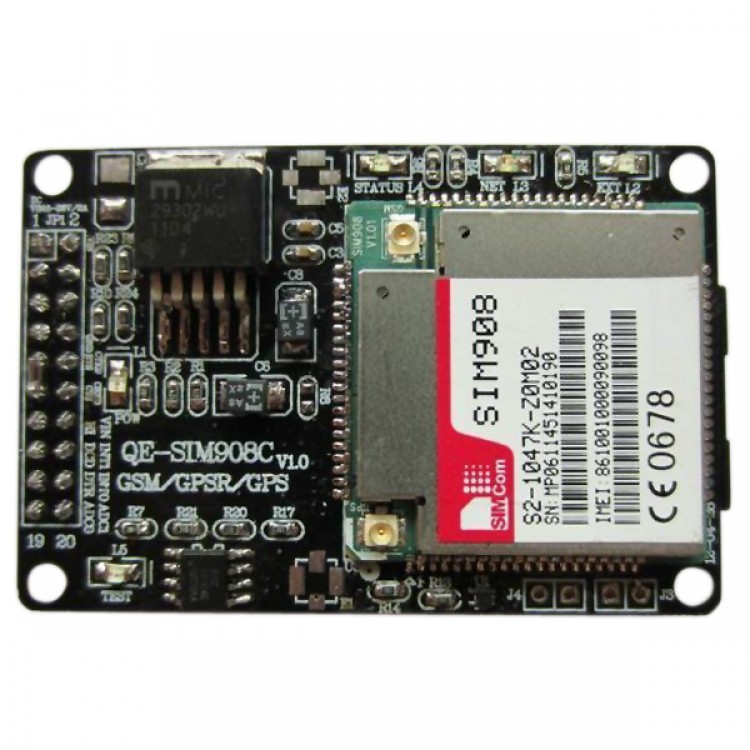

SIM908 GSM-GRPS/GPS Mini Development Modules


- Designed for global market, SIM908-C is integrated with a high performance GSM/GPRS engine and a GPS engine. The GSM/GPRS engine is a quad-band GSM/GPRS module that works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz. SIM908-C features GPRS multi-slot class 10 and supports the GPRS coding schemes CS-1, CS-2, CS-3 and CS-4. The GPS solution offers best-in-class acquisition and tracing sensitivity, Time-To-First-Fix (TTFF) and accuracy. With a t SIM908-C can meet almost all the space requirements in user applications, such as M2M, smart phone, PDA, tracker and other mobile devices. SIM908-C has a 60-PIN DIP connector, provides all hardware interfaces between the module and customers’ boards.

- Serial port and debug port can help user easily develop user's applications.
- GPS Serial port.
- Two audio channels include two audio inputs and two audio outputs. These can be easily configured by AT command.
- Charging interface.
- Programmable general purpose input and output.
- The keypad and SPI display interfaces will give users the flexibility to develop customized applications.
- RF connector interface.
- Board size:60mm*40mm  TXD RXD

Software Download Address: SIM908 GSM-GRPS Modules
