Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $8.69 | $8.52 | $8.25 | $7.89 | Contact US |

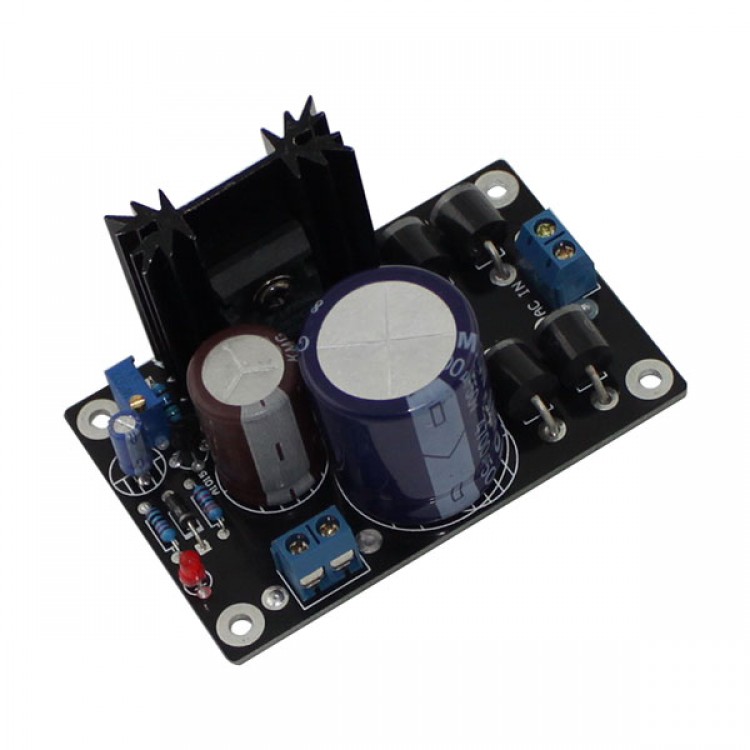

Sliding Type LT1083 Large Power Adjustable Stabilization Power Supply Board HIFI Linear Power Supply Single Channel Output
Description:
- Adopting original LT1083CP
- Electrolysis capacitor signal main loop adopts Taiwan brand, main filter adopts Japanese SAMXON electrolytic capacitor 4700UF/50V, guarantee the constant driving support
- Resistor adopts five loop metal resistor, main loop adopts ±1% precision metal film resistor, gurantee the good SNR
- PCB adopts 1.6mm thick two sides board, 2.0 oz copper thickness, tin plated machining, good current passing performance, high quality of PCB board
- Voltage: Input AC 0-34V, output DC 0-48V
- Current: 0-10A
- PCB size: 80*53mm
Note: Sliding time is at 10UF/50V capacitor capacity, the capacity is larg and the time is long, if you don't need sliding stabilization, 10UF/50V can be eliminated
