|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$8.71||$8.53||$8.27||$7.91||Contact US|

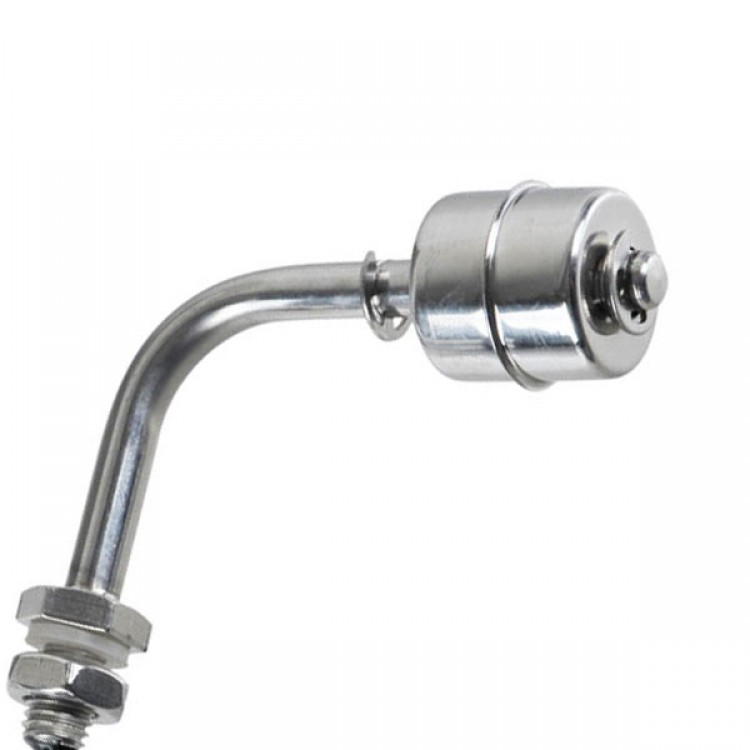

ZP7810 Stainless Steel level Measurement Side Mount Magnetic Float Switch
- level measurement side mount float switch
- Light weight
- Installation convenience
- Comply with ROHS
level measurement side mount level switch
- The switch is widely used in various types of household electrical appliances ,food machinery ,air conditioning equipment and the need for control the liquid level apparatus etc.
- Light weight form factor ,the products introduction the original component manufactures from Japan ,the United States ,superior work performance .
- Entirely with epoxy potting ,double insulation stable and reliable
- Customer can choose many different materials and type of the main bar ,floating ball.
- Customer can choose different types of voltage ,power ,current applications for matching .
- The installation convenience ,such as side ,top ,bottom installation all can ,and there are several thread type..
|Product Appliancation|| |
Water ,Oil ,Chemical Combination
|Operating Temp||T1: -30~145`C T2:-30~200`C|
|Measure Length (Lmm)||42 45 50 55 60 65 70 80 90 100 110....2000|
|Float ball(mm):||23 28 40 45 50 60 80|
|Max Contact Rating||3w 10w 50w 70w 250w|
|Max Switching Voltage||DC24V DC100V AC110V AC220V|
|Max Switching Current||0.25A 0.5A 0.7A 1.0A 3A|
