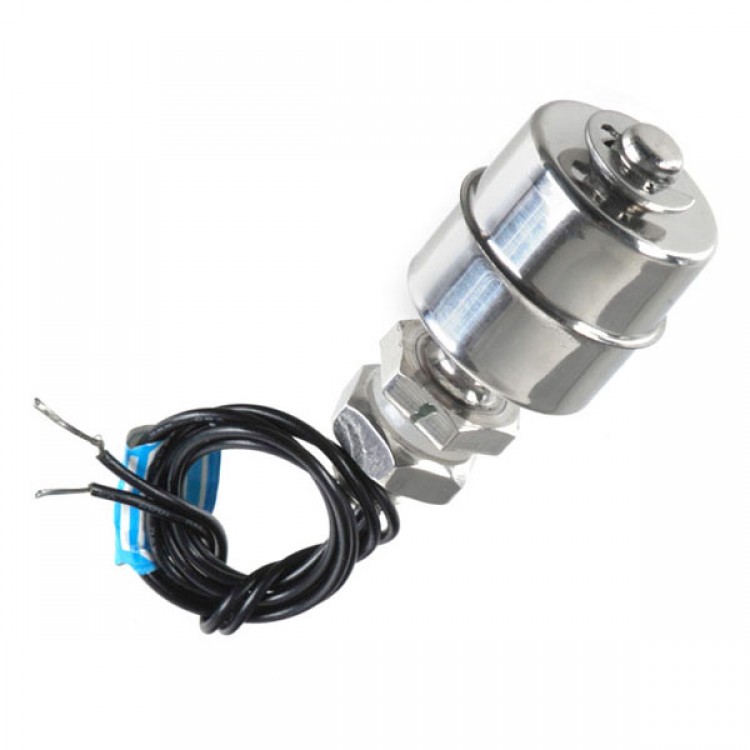

ZP4510 Stainless Steel level Measurement Side Mount Magnetic Float Switch

Availability: Out Of Stock

  • Price:$6.52
  • Price in reward points: 65 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $6.39 $6.26 $6.06 $5.80 Contact US
Quantity:

ZP4510 Stainless Steel level Measurement Side Mount Magnetic Float Switch
Features:
- level measurement side mount float switch
- Light weight
- Installation convenience
- Comply with ROHS
level measurement     side mount level switch
- The switch is widely used in various types of household electrical appliances ,food machinery ,air conditioning equipment and the need for control the liquid level apparatus etc.
- Light weight form factor ,the products introduction the original component manufactures from Japan ,the United States ,superior work performance .
- Entirely with epoxy potting ,double insulation stable and reliable
- Customer can choose many different materials and type of the main bar ,floating ball.
- Customer can choose different types of voltage ,power ,current applications for matching .
- The installation convenience ,such as side ,top ,bottom installation all can ,and there are several thread type.
Specifications:

Product Appliancation

Water ,Oil ,Chemical Combination

Operating Temp T1: -30~145`C   T2:-30~200`C
Measure Length (Lmm) 42 45 50 55 60 65 70 80 90 100 110....2000
Float ball(mm): 23  28  40  45  50  60  80
Max Contact Rating 3w  10w  50w   70w  250w
Max Switching Voltage DC24V    DC100V   AC110V    AC220V
Max Switching Current 0.25A   0.5A   0.7A   1.0A   3A
Material SUS304
