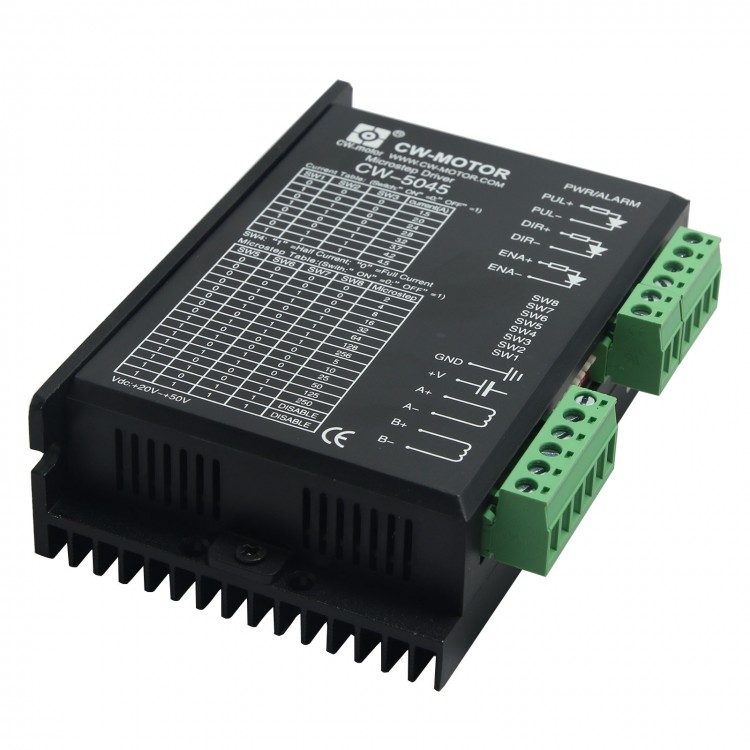

Stepper Motor Driver CW5045 4.5A 50V CNC Micro Stepping Drive for 57/86 Milling Lathe DIY
CW5045 Stepper motor driver:
- Input voltage:24-50VDC
- Output current:1.3,1.8,2.3,2.7,3.2,3.7,4.2,4.5A
- Mircostepping:1(1.8 deg),1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256; 1/5,1/10,1/25,1/50,1/125,1/250
- Protect form: Overheated protect,lock automatic half current, error connect protect
- Working environment:Temperature-15-40deg Humidity<90%
- It is fit for NEMA17-23 two and four phase stepper motors whose current is small than 4.5A,
Switch Choice: (ON=0,OFF=1)
1.Microstepping choice:
|
SW5 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
1 |
1 |
1 |
1 |
1 |
|
SW6 |
0 |
1 |
0 |
1 |
0 |
1 |
0 |
1 |
0 |
1 |
0 |
1 |
0 |
1 |
|
SW7 |
0 |
0 |
1 |
1 |
0 |
0 |
1 |
1 |
0 |
0 |
1 |
1 |
0 |
0 |
|
SW8 |
0 |
0 |
0 |
0 |
1 |
1 |
1 |
1 |
0 |
0 |
0 |
0 |
1 |
1 |
|
Micro |
1/2 |
1/4 |
1/8 |
1/16 |
1/32 |
1/64 |
1/128 |
1/256 |
1/5 |
1/10 |
1/25 |
1/50 |
1/125 |
1/250 |
2.Current choice:
|
SW1 |
0 |
1 |
0 |
1 |
0 |
1 |
0 |
1 |
|
SW2 |
0 |
0 |
1 |
1 |
0 |
0 |
1 |
1 |
|
SW3 |
0 |
0 |
0 |
0 |
1 |
1 |
1 |
1 |
|
Current(A) |
1.3 |
1.8 |
2.3 |
2.7 |
3.2 |
3.7 |
4.2 |
4.5 |
3.Full current or half current choice:SW4:0=Full current;1=half current
