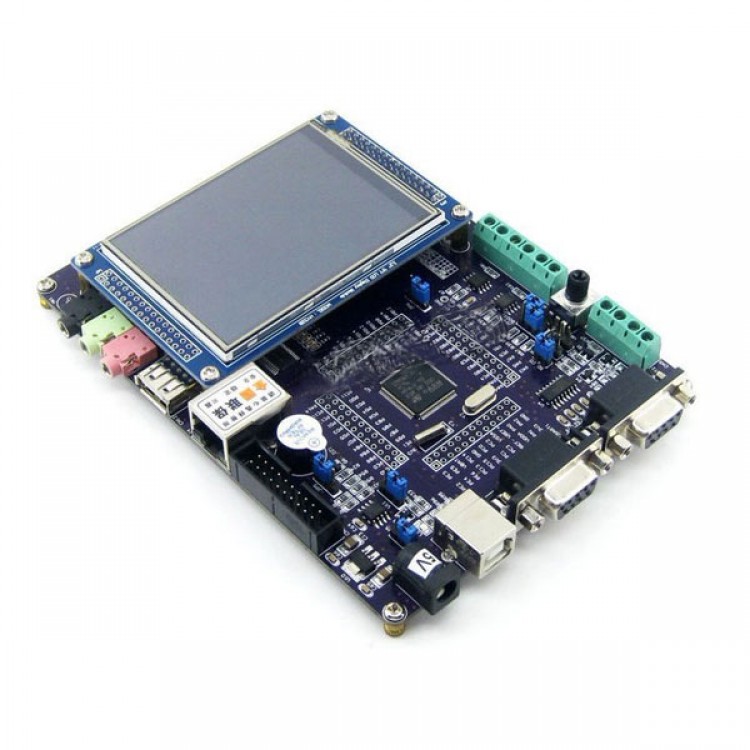

STM32 STM32F103VCT6 Board+MP3+USB+CAN + 3.2" Touch TFT LCD
- CPU: STMicroelectronics (ST) ARM Cortex-M3 based 32-bit processor chips
STM32F103VC LQFP100 pin chip with 256KB FLASH, 48KB RAM (on-chip integration
12Bit A/D, D/A, PWM, CAN, USB, SDIO, FSMC, and other resources.)
- Support one TFT color LCD screen (Optional), with 2.8” or 3.2" TFT color touch TFT LCD module up to 320 * 240 resolution.The LCD supports 8 / 16 bit bus interface, glossy screen, high altitude,analog IO control, and ADS7843 touch IC controller.
- One SD card (SPI mode) for store photos, data, and one AT45DBxxx --DATA FLASH (can be used to store special character library and pictures or data, etc.).
- On-board 128MB(Default) or 256MB NAND FLASH, Analog IO control, you can upgrade larger FLASH by yourself, such as(NAND FLASH: 512M). Meet the large capacity data acquisition, data storage form, document management applications, MP3 music storage requirements.
- High performance MP3 decoder onboard chip-VS1003B, it support decoding audio formats including MP3, WMA, WAV, MIDI, P-MIIDI, audio encoding format IMA ADPCM (mono). Microphone and line-input; It supports MP3 and WAV stream.
- One USB host interface board-CH376 USB host controller chip, CH376 is the filemanagement control chip microcontroller system for USB disk or SD card to read and write files, it has built-in FAT16, FAT32 and FAT12 file system management firmware to support popular USB storage devices (including the U disk / USB drive / USB flash disk / USB card reader.)
- Support for 1.5Mbps and 12Mbps full-speed USB communication speed, compatible with USB V2.0
- Support USB-HOST host and USB-DEVICE, supports dynamic switching host mode and device mode.
- Provide 2MB/24MHz speed SPI device interface to support connected to the MCU SPI serial bus.
- One Ethernet port, onboard MicroChip high-performance--ENC28J60
Ethernet network interface controller chip, IEEE 802.3-compliant Ethernet controller
Integrated MAC and 10BASE-T PHY, supports full-duplex and half duplex work patterns, send and receive status LED's based in RJ45 socket.
- CAN communication interface all the way, driver chip--SN65VHD230
- One RS485 communication interface, driver chip--SP3485
- Two RS232 interfaces, driver chip--MAX3232
- One way to control SPI SD card connector
- One I2C memory interface, standard 24LC02 (EEPROM)
- One SPI memory interface, standard AT45DB161D (DATA FLASH)
- One Adjustable ADC input
- Two ADC input terminal leads
- One DAC output
- One buzzer, four user LEDs, one power LED, one USB communication LED,three user keys, a 5-D joystick button, one system reset key
- One power selection jumper, support for external 5V power supply or USB power-based supply
- All I / O port lead out through 2.54MM standard pitch for your further application
- Board Size: 15CM X 11CM
- 1 x STM32F103VCT development board
- 1 x 3.2" TFT Touch Screen LCD
- 1 x USB Cable
- 1 x Data CD with product reference(English Version)
